Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide
45
2.3.2 Installing the Front Bezel

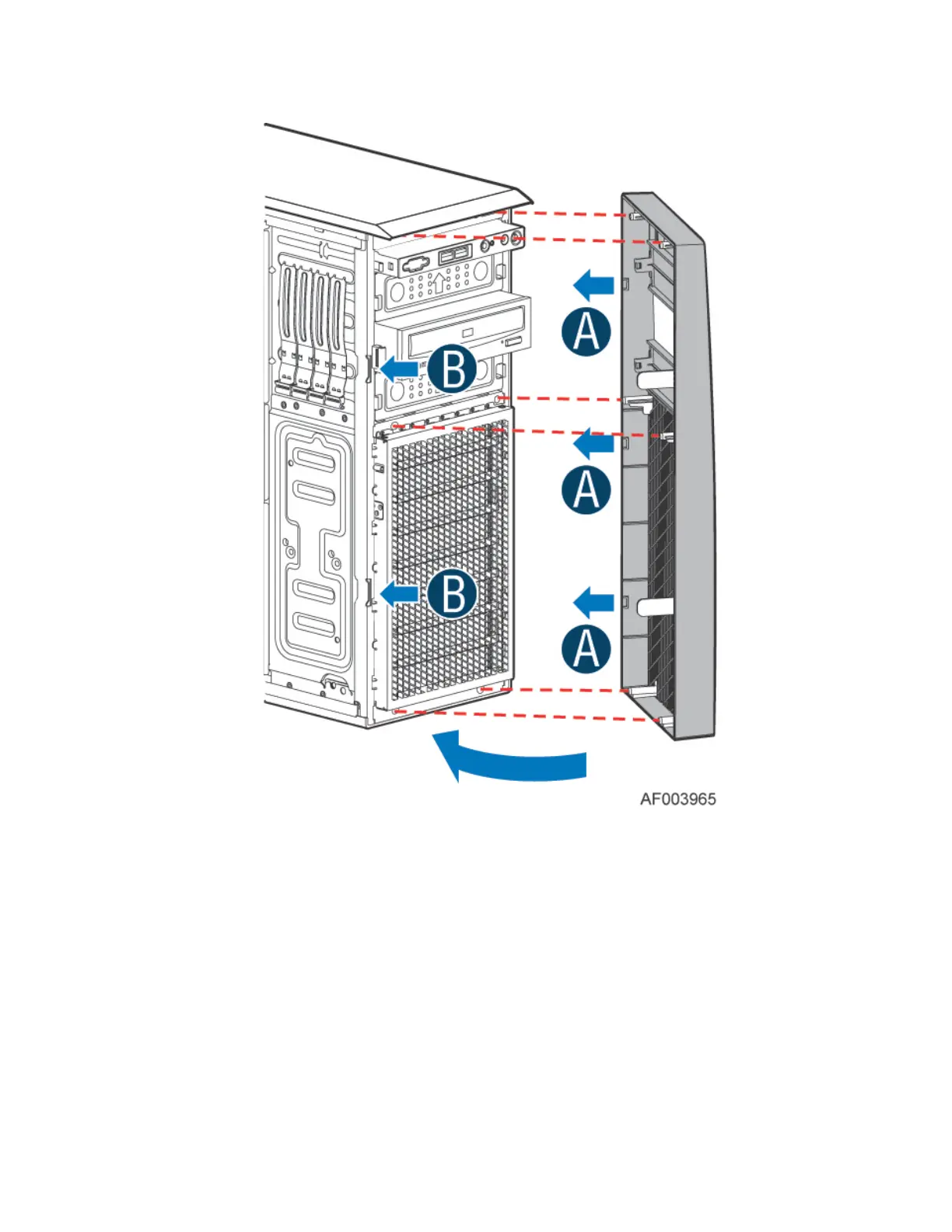

Figure 51. Installing the Front Bezel
1. Fit the right edge of the bezel assembly against the right side of the chassis.
2. Engage the plastic bezel hooks (see letter A) into the raised metal slots at the chassis edge.
3. Rotate the bezel assembly toward the chassis.
4. Latch the two plastic tabs (see letter B) on the left side of the bezel assembly to the chassis.
