6. System Service - System Features Overview
This chapter provides a reference to locate and identify the features associated with the Intel® Server Board
S2600CW and S2600ST product families, and Intel® Server Chassis P4304XXMFEN2/P4304XXMUXX product
family.
Obtain additional information for this product family from the following Intel documents which can be
downloaded from the following Intel web site: http://www.intel.com/support
• Intel® Server Board S2600CW Technical Product Specification
• Intel® Server Board S2600ST Technical Product Specification
• Intel® Server Chassis P4304XXMFEN2/P4304XXMUXX Technical Product Specification
6.1 System Feature Reference Diagrams
This section gives a high-level overview of the Intel® Server Chassis P4304XXMFEN2/P4304XXMUXX product
family. It provides illustrations and diagrams showing the location of important components, features, and
connections found throughout the server chassis.

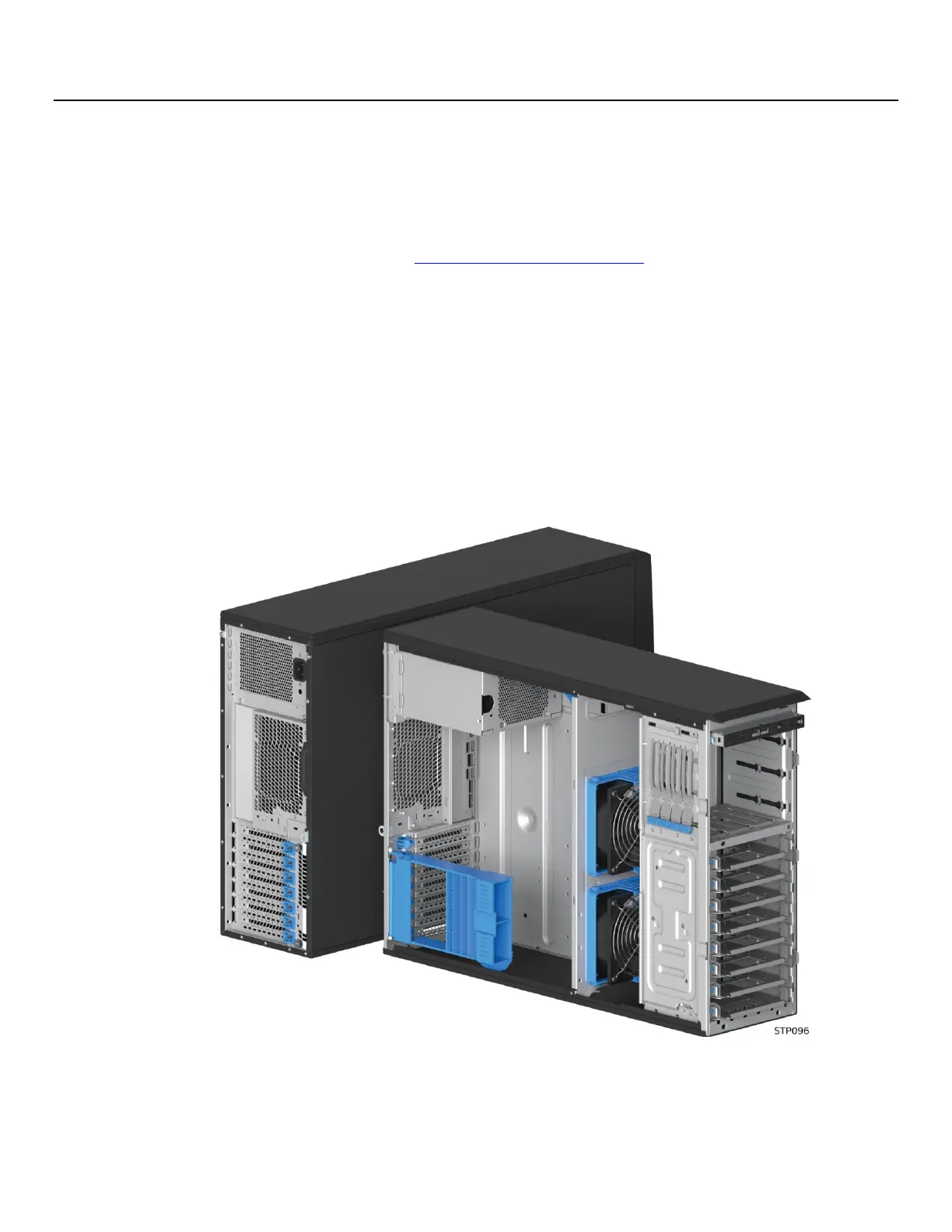

Figure 130. Intel® Server Chassis P4304XXMFEN2 Overview
