Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide
7
1.2.2.2 Air Duct Installation
Note: In order to avoid risk of damaging the server board and power cables, verify that the cable routing
follows the recommendations described in Appendix B.
1. Carefully manage the system main power cable and CPU power cables so that they fit under the
notch of the air duct.

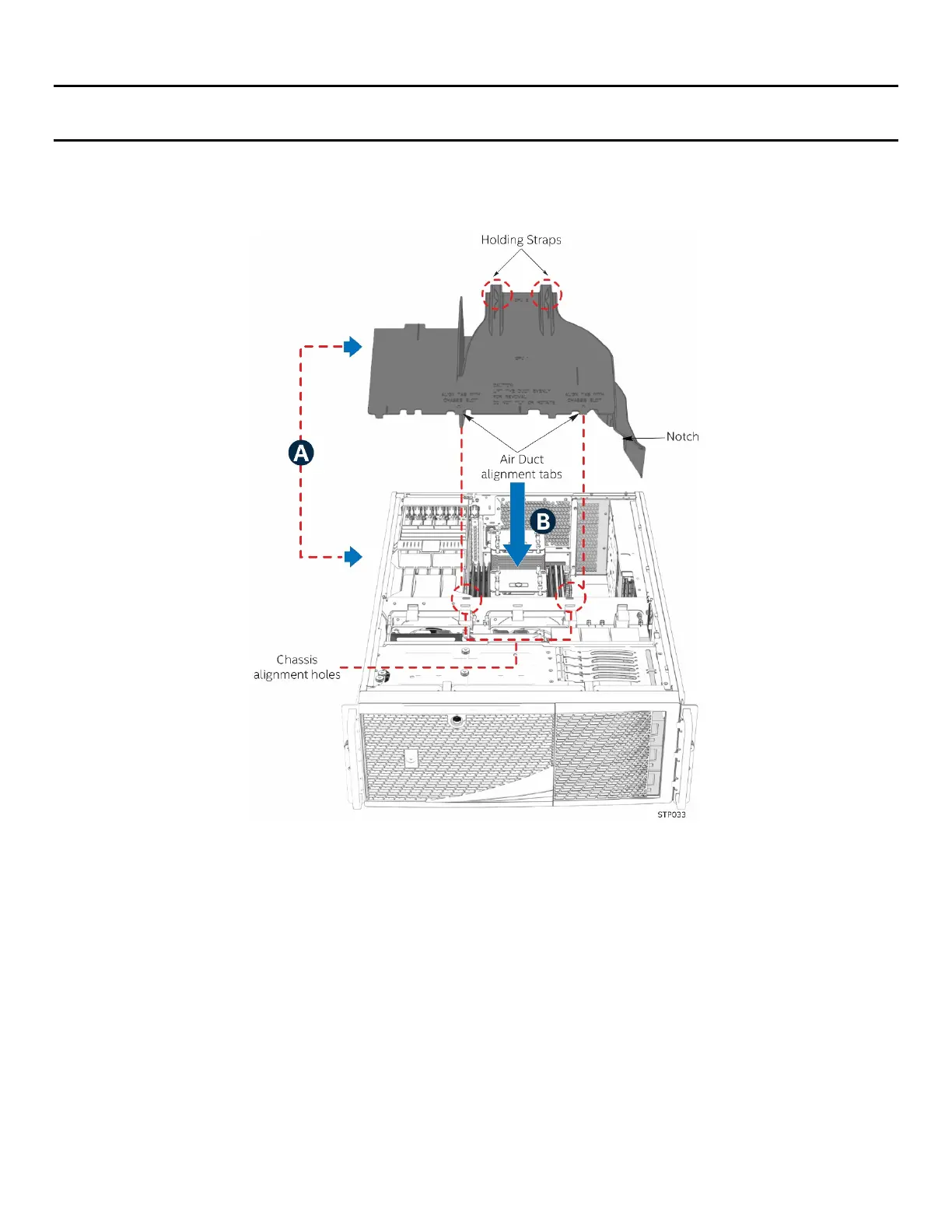

Figure 6. Installing the Air Duct 1/4
2. Align the two tabs on the front edge of the air duct with the matching slots on the fan assembly
(See letters A and B).
