Intel
®
Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide
19
2.1 Processor Installation / Removal
2.1.1 For S2600CW Server Board Family
2.1.1.1 Processor Heatsink(s) Removal

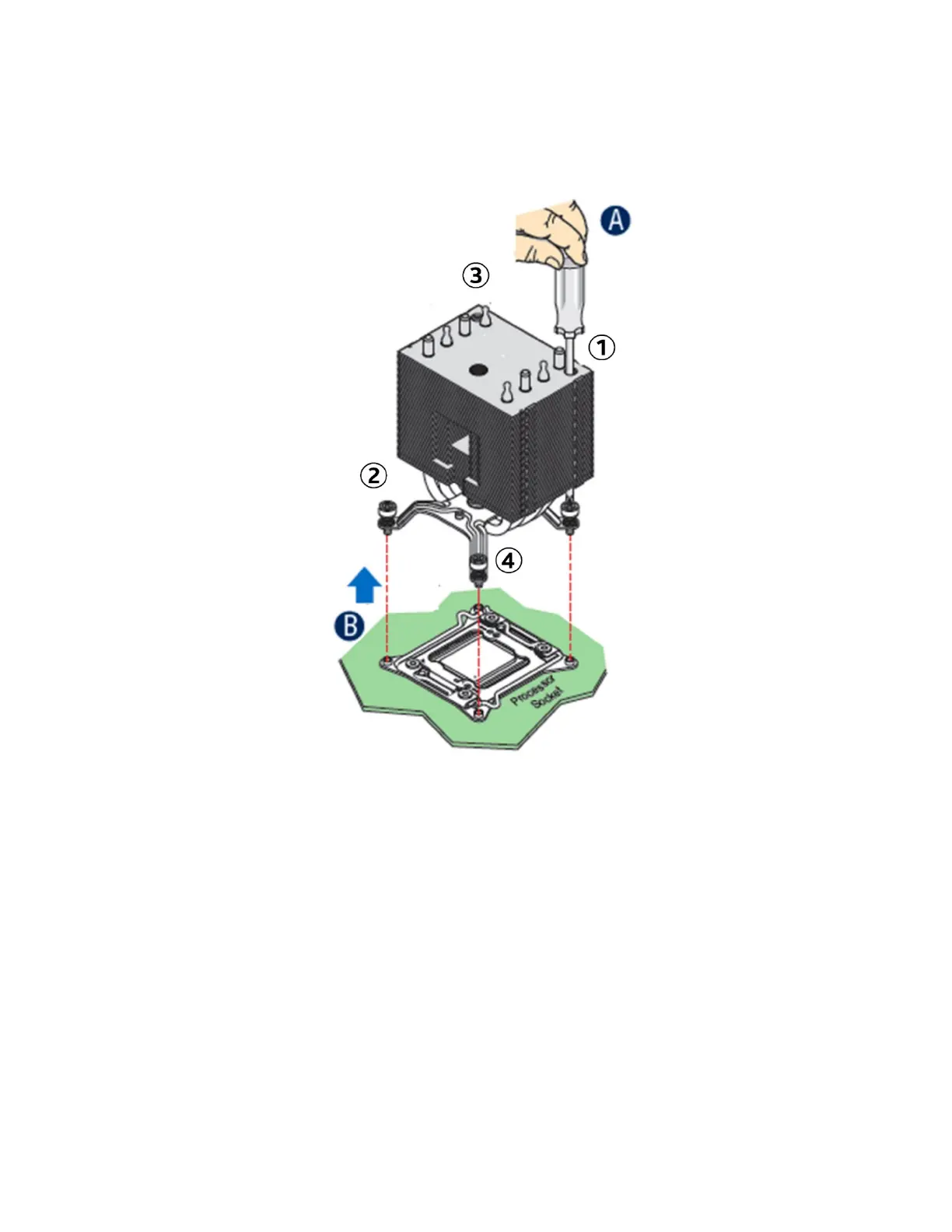

Figure 21. Processor Heatsink Removal
The heatsink is attached to the server board or processor socket with captive fasteners. Using a #2 Phillips*
screwdriver, loosen the four screws located on the heatsink corners in a diagonal manner with this procedure:
1. Using a #2 Phillips* screwdriver (see letter A), start with screw 1 and loosen it by giving it two
rotations and stop. (IMPORTANT: Do not fully loosen). Then proceed to screw 2 and loosen it by
giving it two rotations and stop. Then proceed to loosen screws 3 and 4 in the same manner.
Repeat giving each screw two rotations each time until all screws are loosened completely.
2. Lift the heatsink straight up (see letter B).
