Intel P4304XXMUXX - Figure 136. Intel Light-Guided Diagnostic Leds - Server Board

Intel
®
Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide
116
Callout
Description
A
System Status LED
B
System ID LED
LSB 1 2 3 4 5 6
MSB
POST Code Diagnostic LEDs

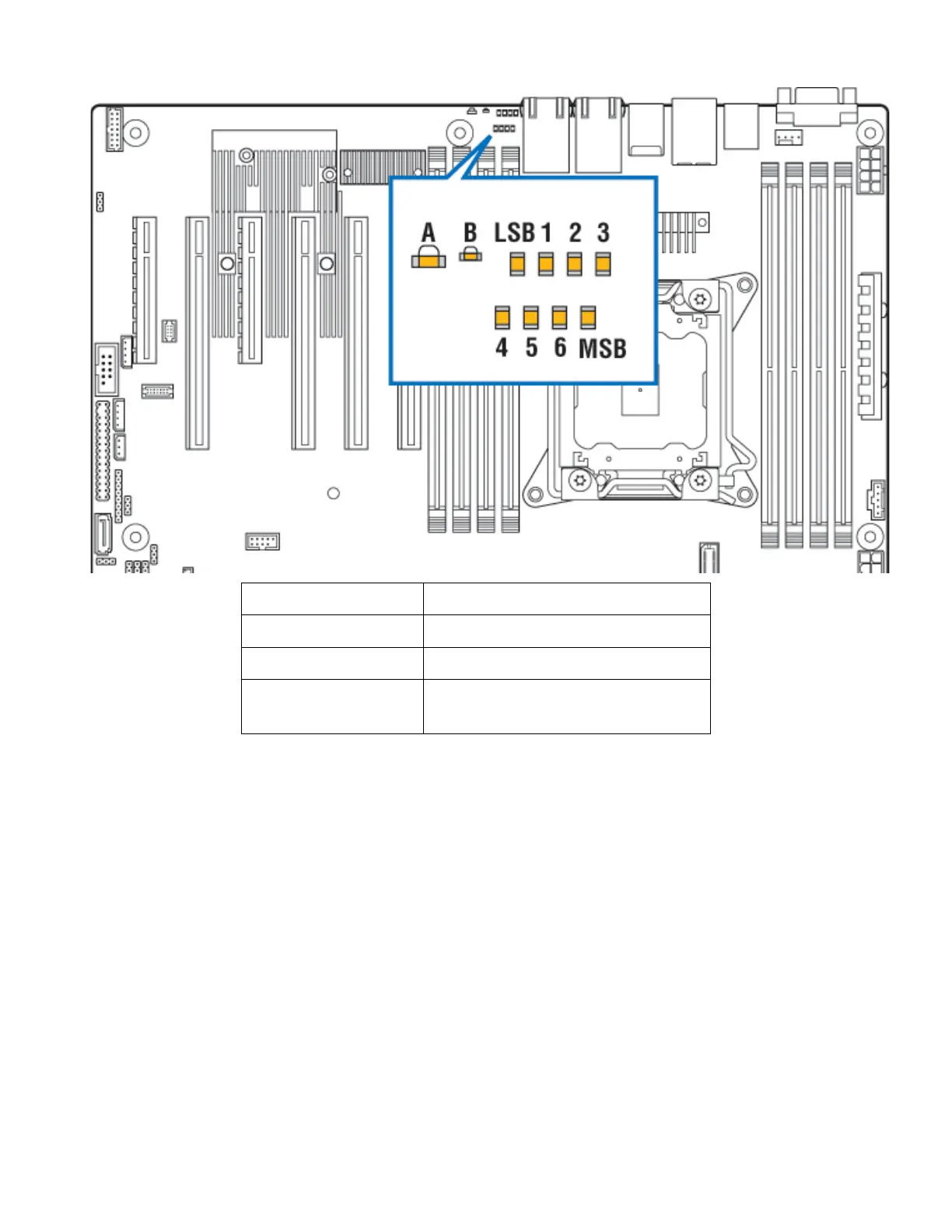

Figure 136. Intel® Light-Guided Diagnostic LEDs – Server Board
