Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide
96

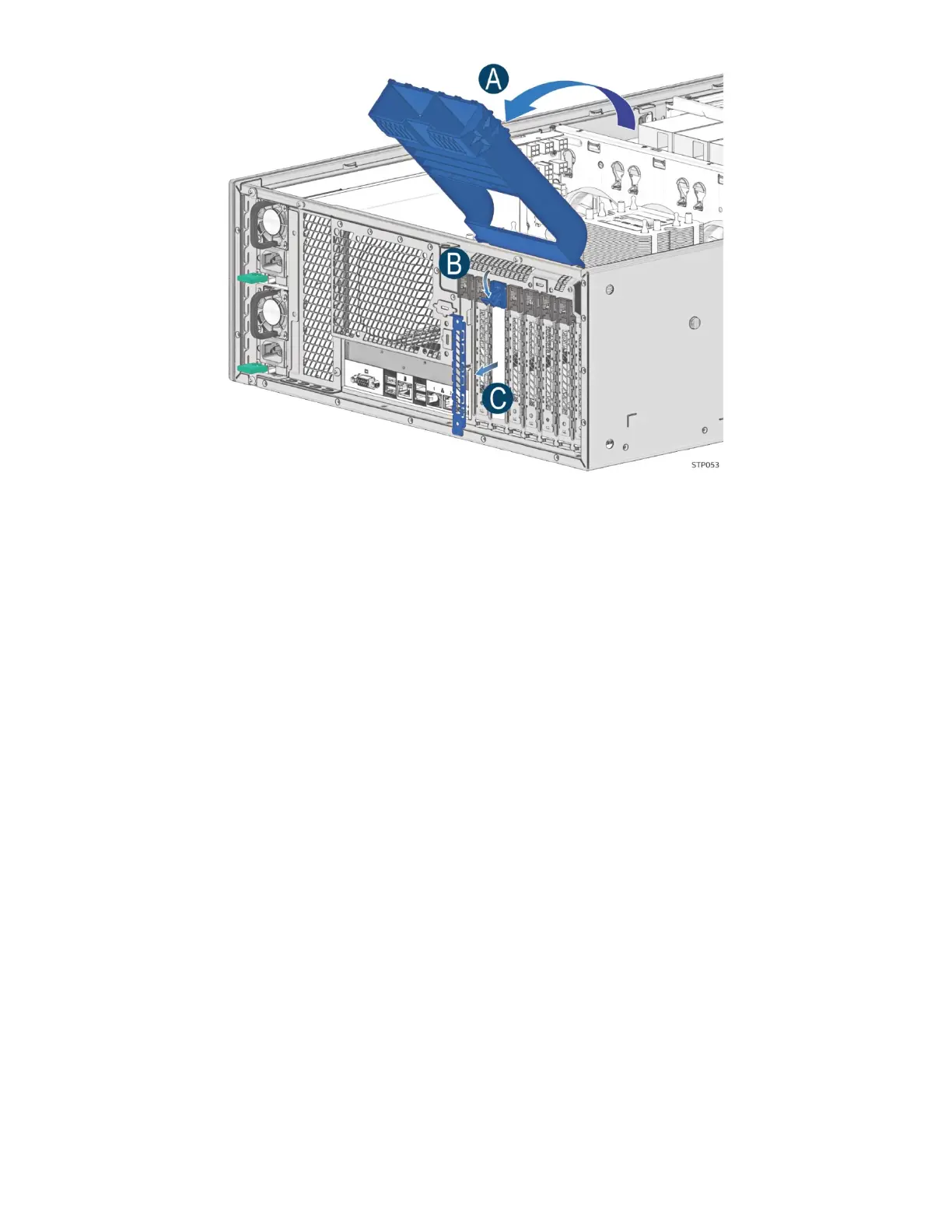

Figure 124. Installing the LAN Riser 1/3
To install the LAN Riser:
1. Remove the chassis side cover following instructions in Section 1.2.1.
2. Remove the air duct following instructions in Section 1.2.2.1.
3. Lift and turn the GPGPU retainer outwards (see letter A).
4. Press the PCIe* retainer down and outwards to put it in a released position (see letter B).
5. Locate the filler corresponding to Slot 5 on the server board and remove it (see letter C).
