Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide
95
3.8 LAN Riser Installation (S2600ST Server Board Family Only)
The LAN Riser features two SFP+ ports and can be installed in any of the S2600ST models. A dedicated slot
aligned with PCIe* Slot 5 is provided for the accessory card to communicate with the PCH and the BMC;
therefore, a second processor is not required when the LAN riser is installed.

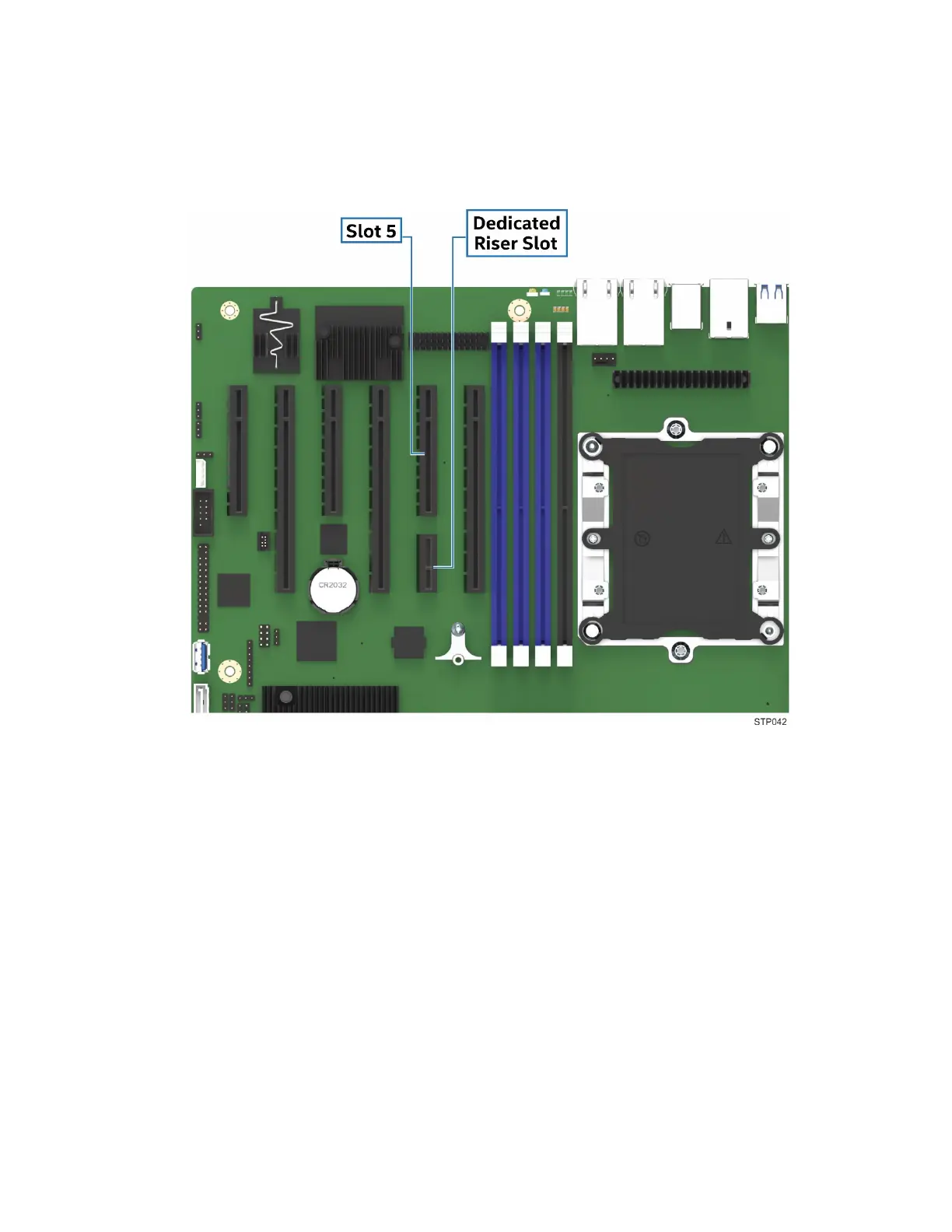

Figure 123. Dedicated Riser Slot Location
