NOTE: The PHM and processor socket include several alignment features to ensure proper assembly and
installation. Take care to ensure components are accurately assembled and the PHM is oriented correctly to
the processor socket prior to installation.

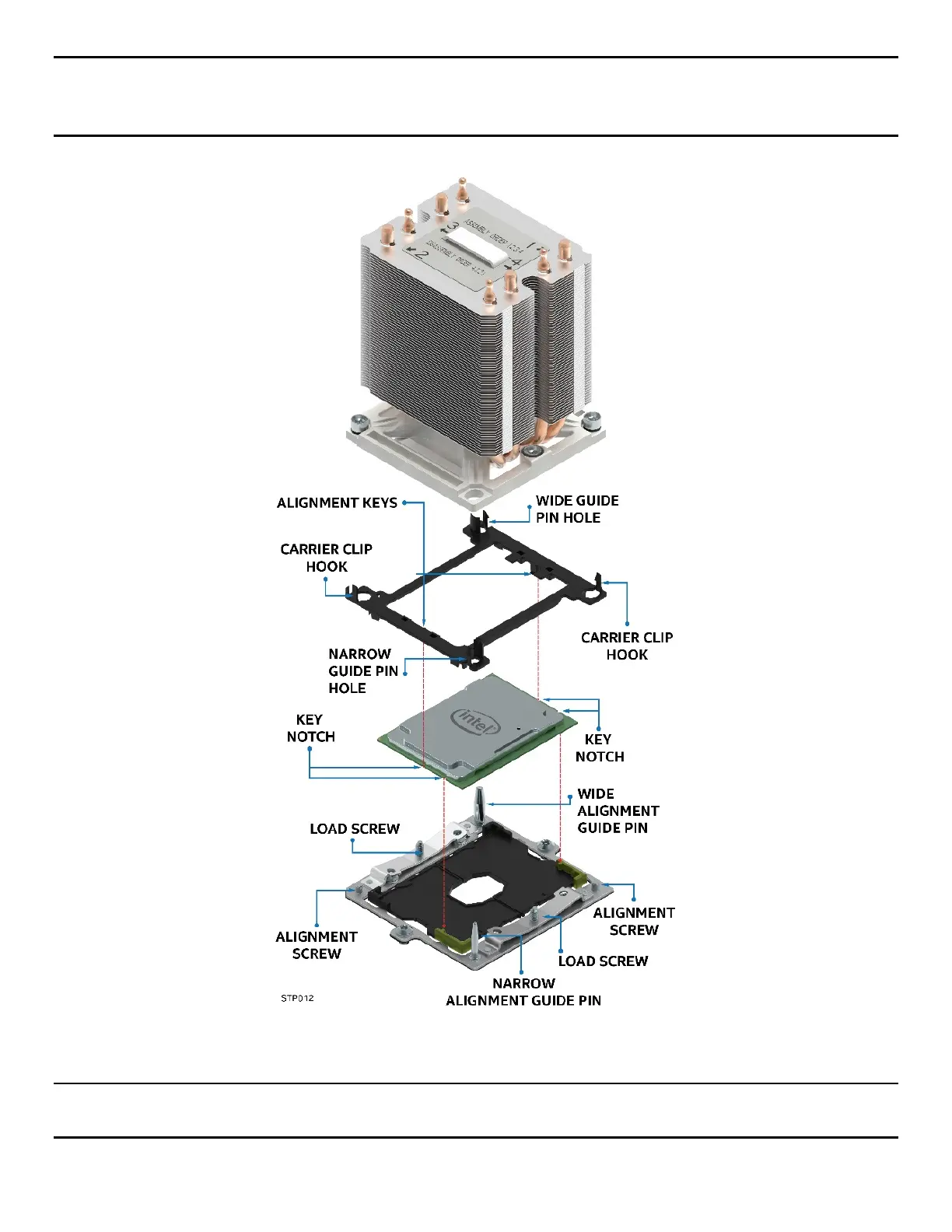

Figure 32. Alignment Features
CAUTION: Handle the processor carefully. Do not touch the bottomside contacts or components; always grip
the processor by its edges.
