3.7.2 For S2600ST Server Board Family
The server board supports two M.2 storage devices in a stacked configuration secured by a bracket. The
following illustration shows the location for both the connectors and the bracket.

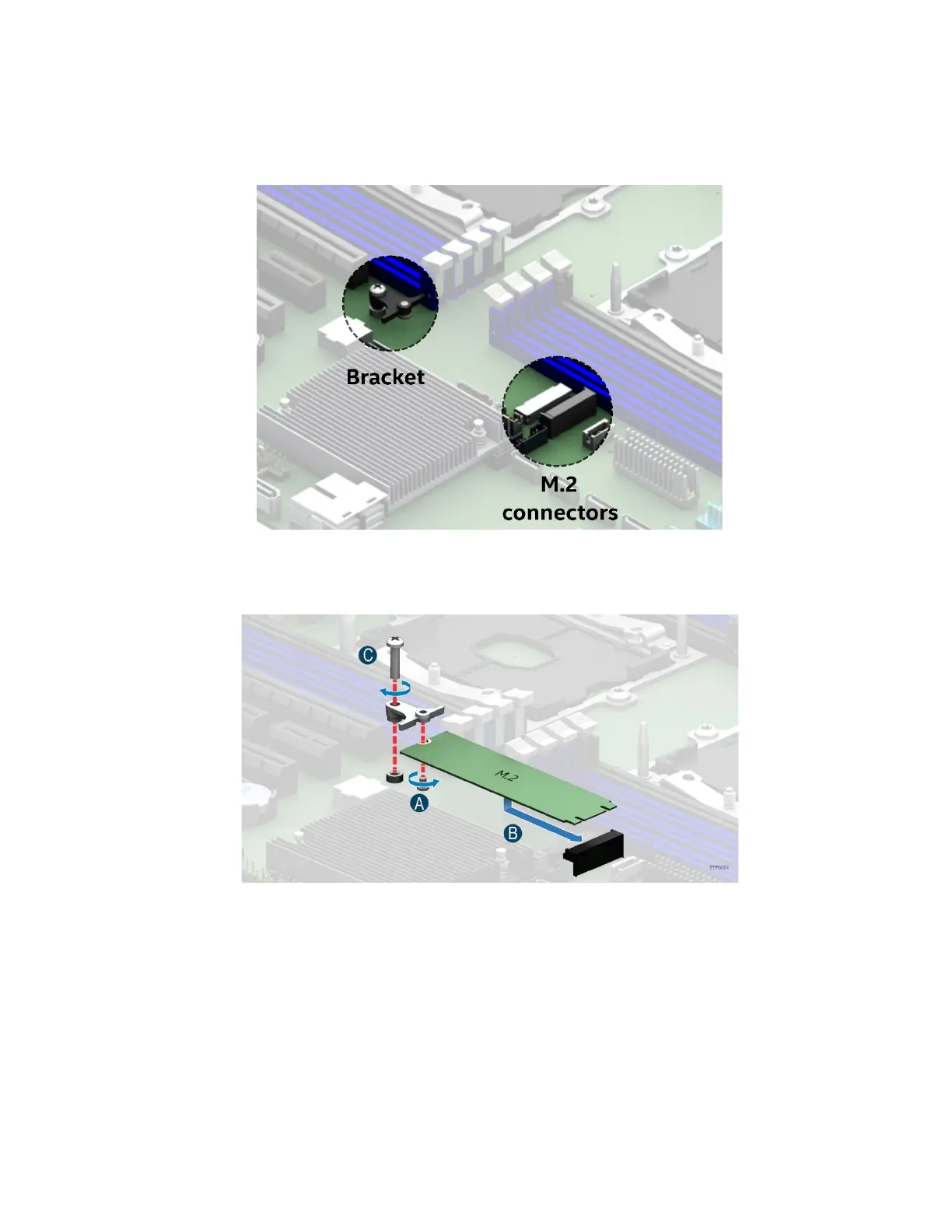

Figure 120. M.2 Storage Device Installation - S2600ST Board Family
3.7.2.1 Installing One M.2 Device (Single Configuration)
Figure 121. Installing One M.2 Storage Device – S2600ST Board Family
1. Locate the top M.2 connector on the server board near the DIMM slots.
2. Remove the bracket.
3. Attach the bracket to the M.2 device using the screw (see letter A).
4. Slide the M.2 device into the connector (see letter B).
5. Secure the M.2 device to the server board with the screw (see letter C).
