2.4.3 Removing the Cosmetic Top Board

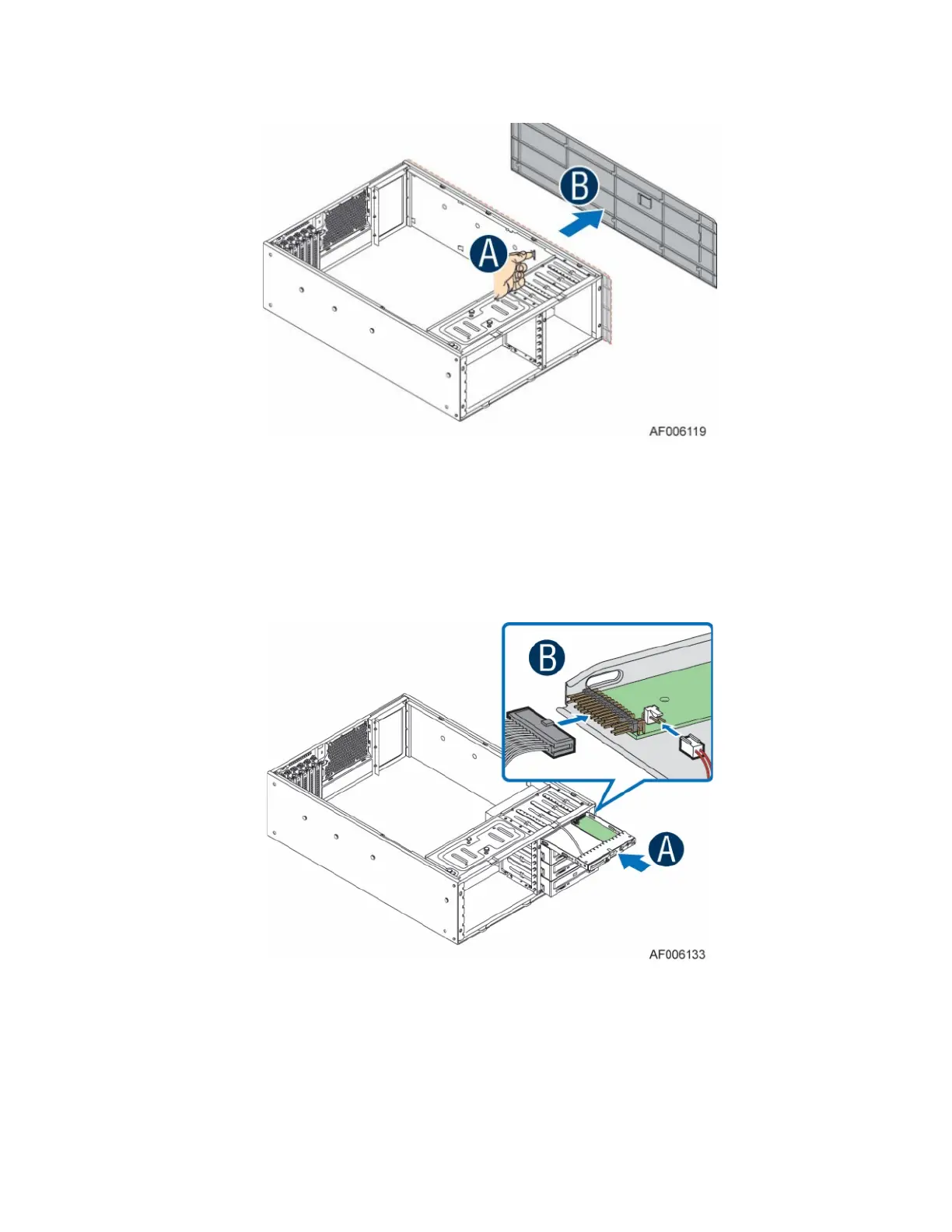

Figure 102. Removing the Cosmetic Top Board
1. Press the clip (see letter A).
2. Separate the top board from the chassis (see letter B).
2.4.4 Installing the Front Panel Module
Figure 103. Installing the Front Panel Module
1. Slide the front panel on the bay (see letter A).
2. Connect the SSI 24/30 pin (depending on system configuration) and the power cables (see letter
B).
