3.7.2.2 Installing Two M.2 Devices (Dual Configuration)

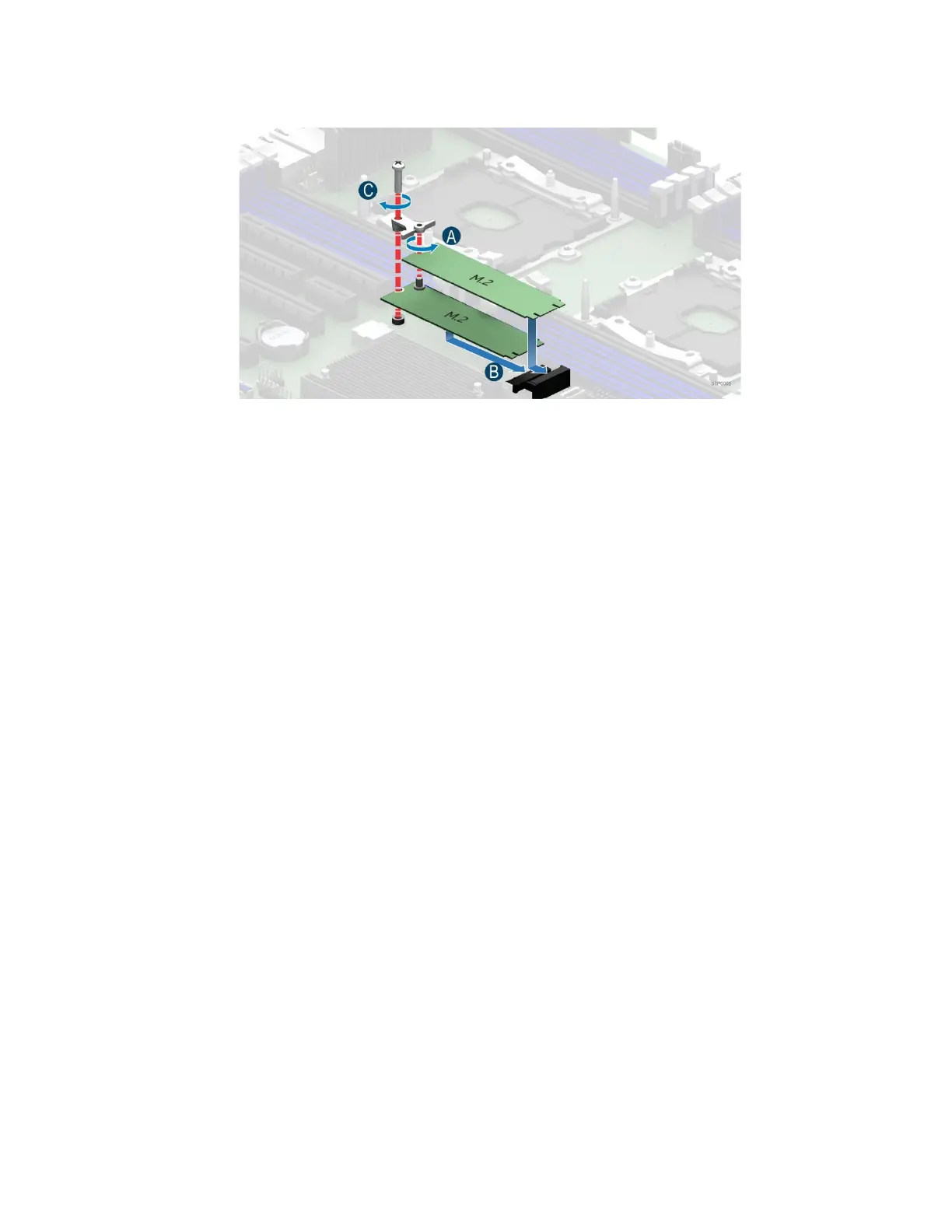

Figure 122. Installing Two M.2 Storage Devices (Dual Configuration)
1. Locate the M.2 connectors on the server board near the DIMM slots.
2. Remove the bracket.
3. Attach the bracket to the M.2 device that will be installed on the top connector using the screw
(see letter A).
4. Slide the M.2 device that is to be installed on the bottom connector first and then the device to be
installed on the top connector (see letter B).
5. Secure the M.2 devices to the server board with the screw (see letter C).
