3.9 BBU Bracket Installation / Removal
The Battery Backup Unit (BBU) bracket (iPC – AXXSTBBUBRKT) is an optional accessory kit that supports up
to 3 Raid Maintenance Free Backup Units (RMFBU) and can be installed in any of the 5.25” device bays.
Refer to the Intel
®
Server Board S2600ST Product Family Configuration guide to see available RMFBU kits.
3.9.1 BBU Bracket Installation
1. Remove the chassis side cover by following the instructions in Section 1.2.1.
2. Remove the EMI shield in the drive bay by following instructions in section 3.1.1.

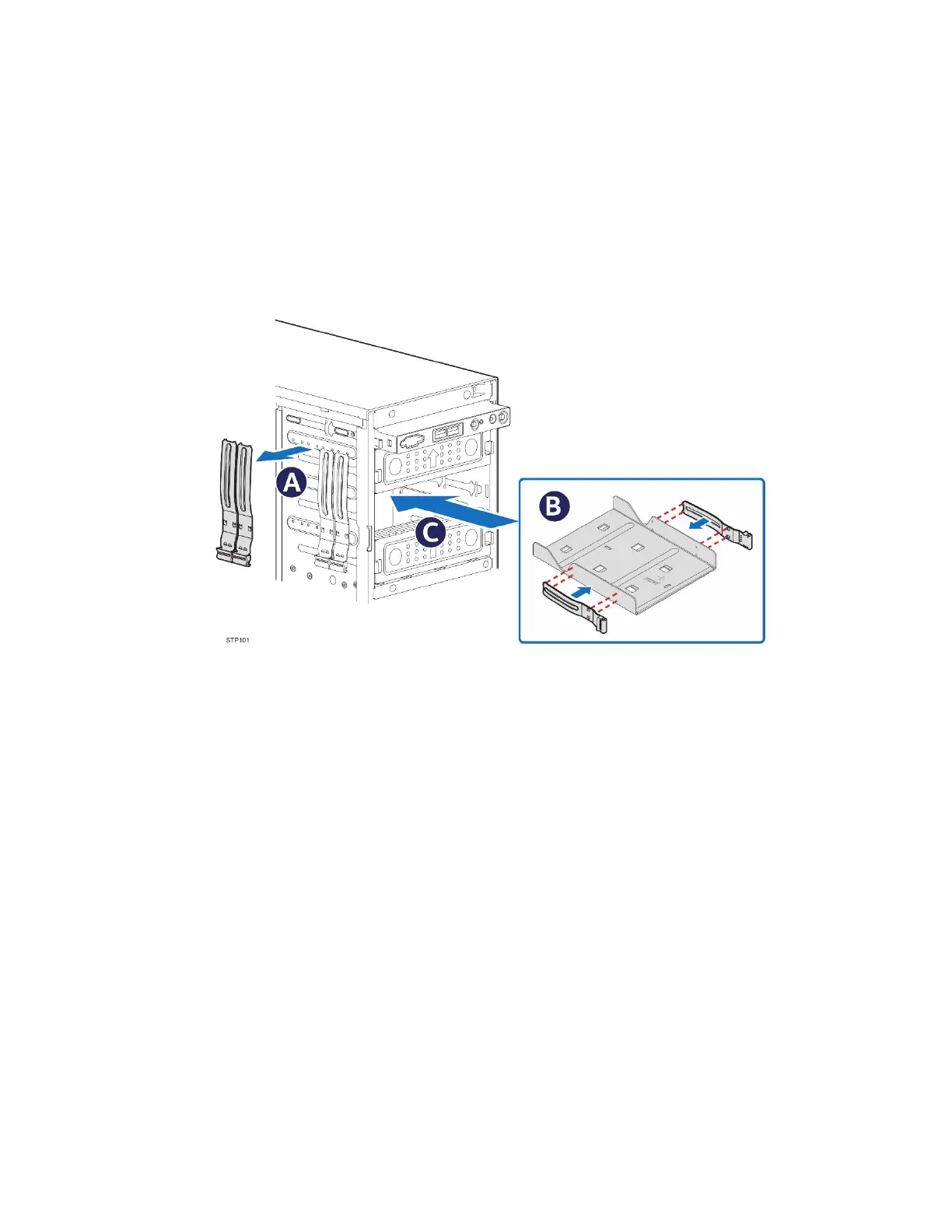

Figure 127. Installing the BBU Bracket
3. Locate the slides from the chassis side (see letter A). Attach the slides to the BBU bracket by
pressing the slides firmly into the side dimples on the BBU bracket (see letter B). Insert the
bracket/slide assembly into the device bay until the slides lock into place (see letter C).
