7. System Service – FRU Replacement
7.1 System Fan Assembly Removal / Installation
System fan assembly removal is required whenever routing cables inside the chassis from back to front or
from front to back, or when server board replacement is necessary.
7.1.1 System Fan Assembly Removal

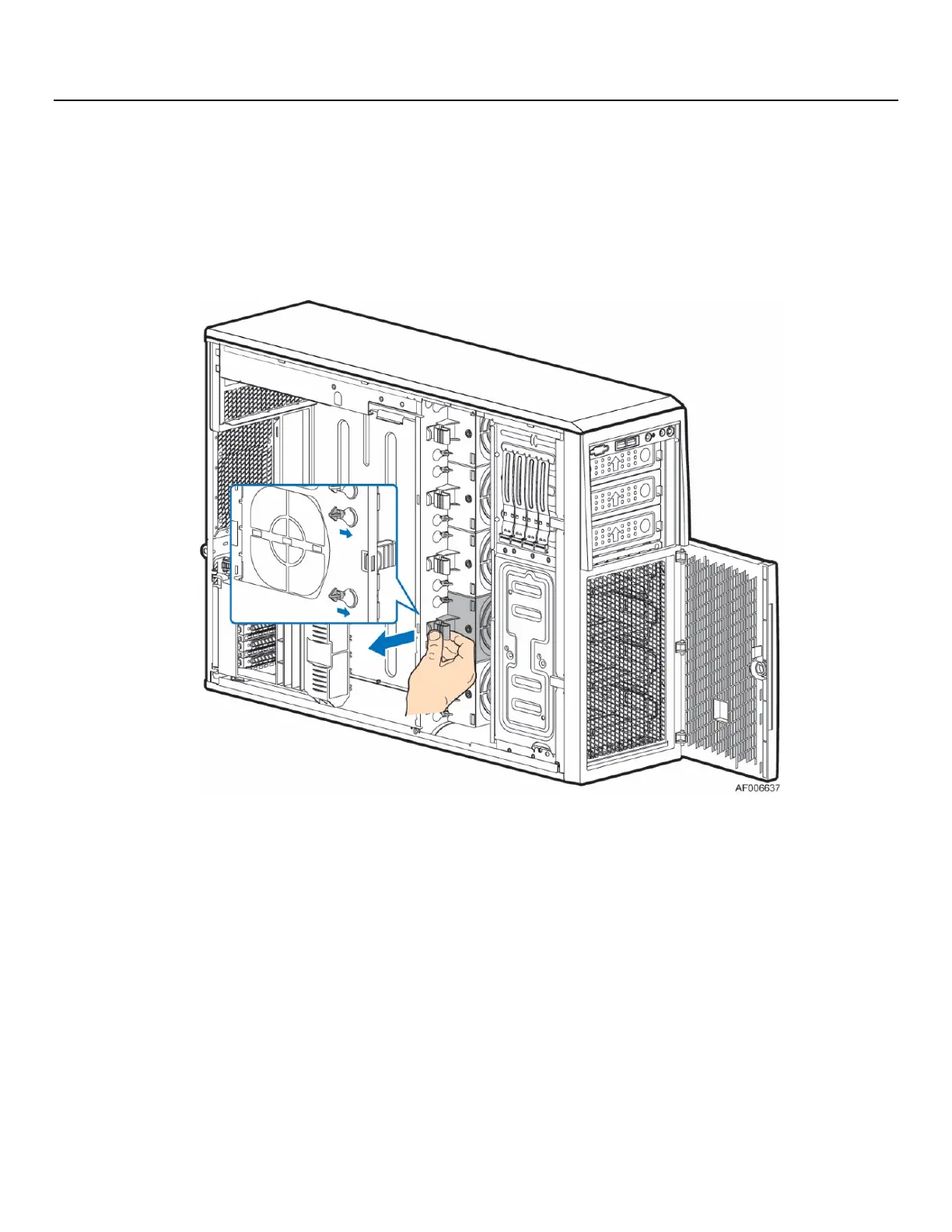

Figure 143. Hot-Swap System Fan Removal
1. Press the latch handle located on the top of the fan until the latch is fully disengaged from the fan
bracket.
2. Lift the fan away from the fan bracket.
