Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide
41
• Upgrade Option: One 2.5” drive bay with Hot-Swap backplane. Supports up to 8x2.5” drives
(SAS/SATA).
• Upgrade Option: One 2.5” drive bay with Hot-Swap backplane. Supports up to 4x2.5” drives
(SAS/SATA) with green latch for Hot-Swap support and 4x2.5 PCIe* SSDs (NVMe) with blue latch
(Hot-Swap not supported) for Intel® S2600CW Server Board Product Family only.)
• Upgrade Option: Two optional 2.5” drive bay with Hot-Swap backplanes supporting up to 16x2.5”
drives (SAS/SATA).

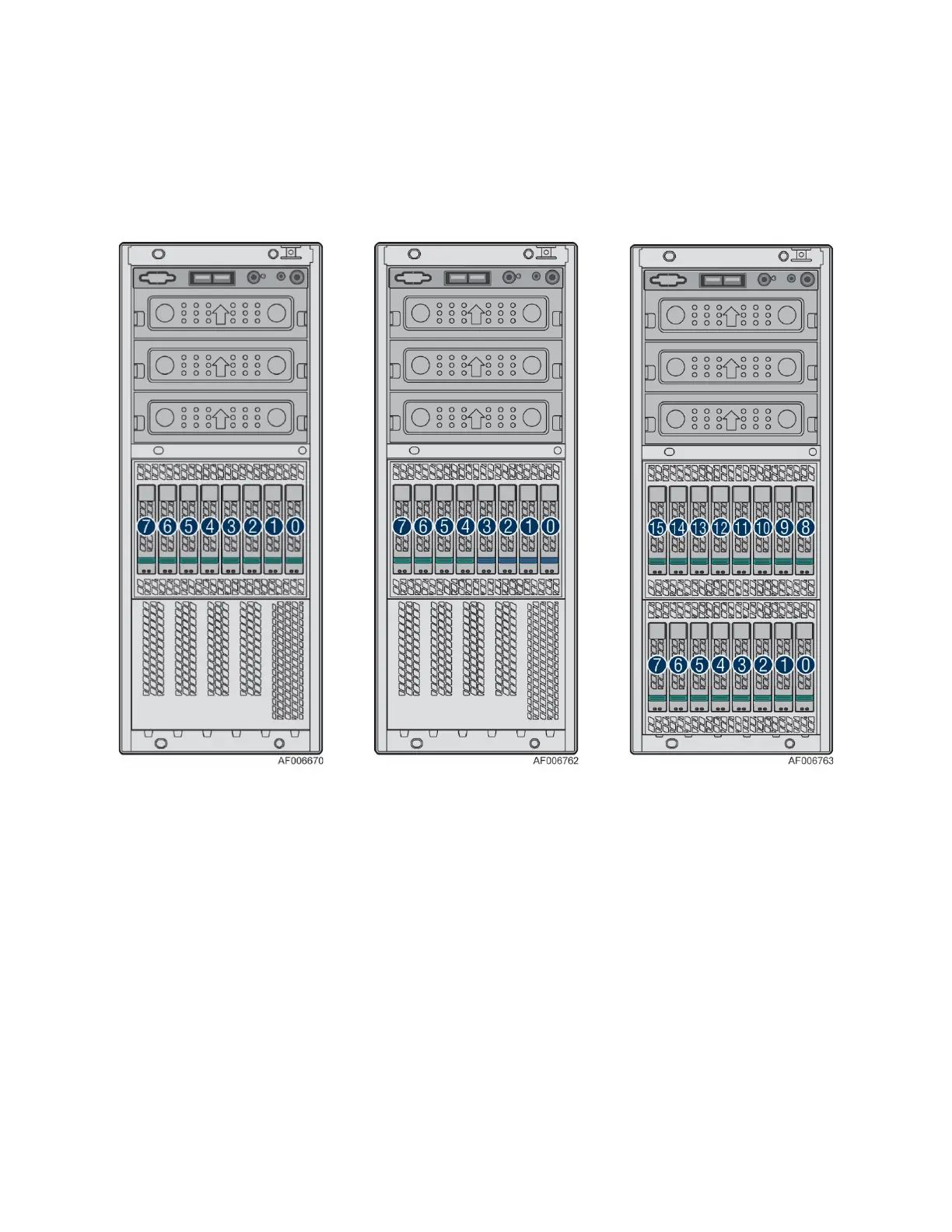

8x2.5 Upgrade Option 8x2.5 NVMe Combo Upgrade Option 16x2.5 Upgrade Option
