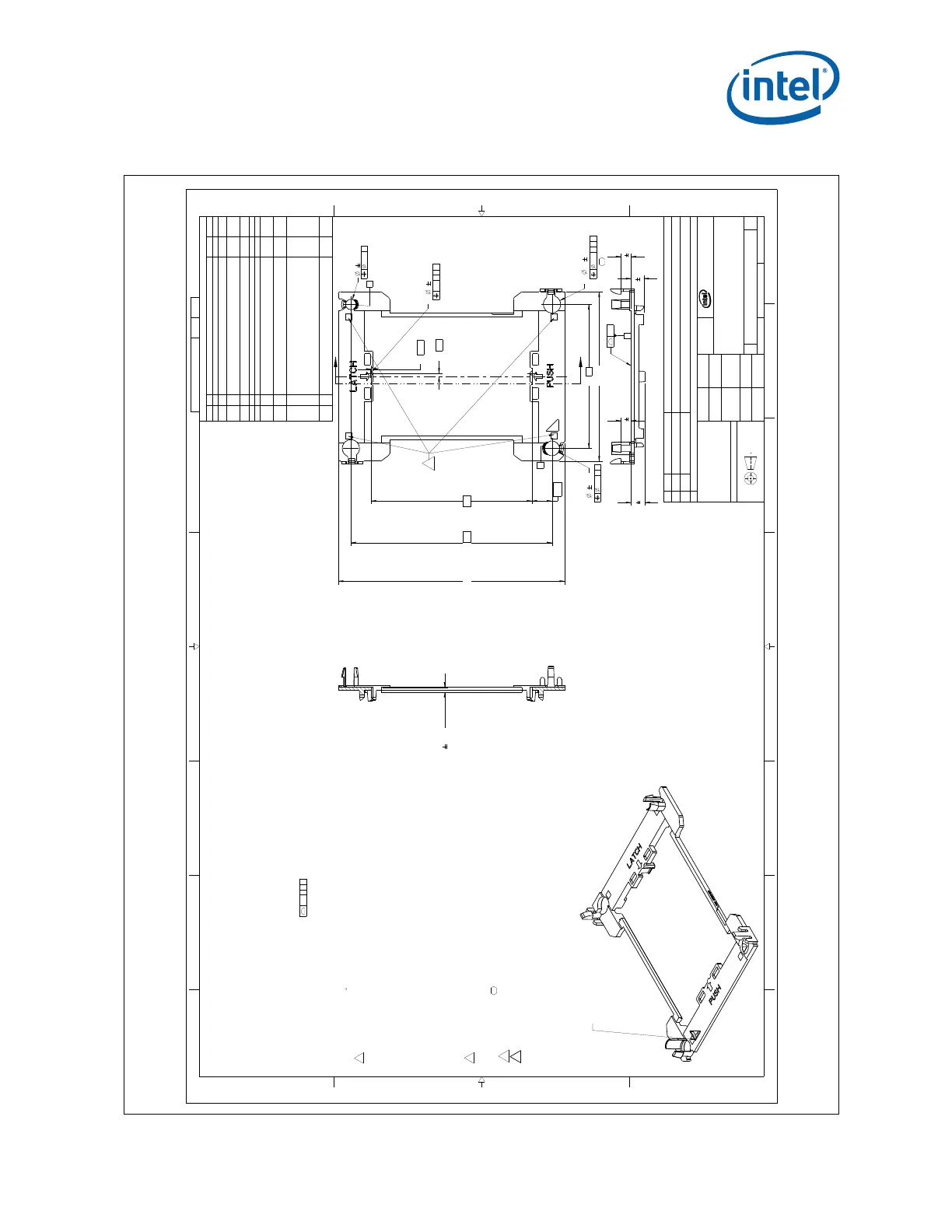

Figure E-7. Heatsink Module Clip (non-Fabric), 1/2
A
A
13
4
5678
B
C
D
A
123
4
5678
B
C
D
A
A
2200 MISSION COLLEGE BLVD.
P.O. BOX 58119
SANTA CLARA, CA 95052-8119
R
0.2 A B C
0.3 A B C
0.25 A B C
0.25 A
0.25 A B
0.2
2X 95
2X 1.5
2X 68
80±0.1
107±0.1
2X 2.35 0.1
76
2X 0.75
2X 2 0.1
9.5
2X 4.75 0.1
7 0.1
2X 8.2 0.1
5 0.1
2X 6.5 0.1
8X 6 0.1
2X 4.75 0.1
H53249 1 10
DWG. NO SHT. REV
SHEET 1 OF 2
DO NOT SCALE DRAWING
SCALE: 2:1
10H53249D
REV
DRAWING NUMBER
SIZE
KNL CPU CARRIER (NON-HFI)
TITLE
DEPARTMENT
SEE NOTESSEE NOTES
FINISHMATERIAL
--
DATEAPPROVED BY
3/4/14
DATECHECKED BY
3/4/14
DATEDRAWN BY
08/15/13
DATEDESIGNED BY
DIMENSIONS ARE IN MILLIMETERS
THIRD ANGLE PROJECTION
REVISION HISTORY
ZONE REV DESCRIPTION DATE APPR
- 01 TOOLING RELEASE 3/26/15
02
ADDED DRAFT TO THE PART. ROLLED THE PART # TO -002
AND REVED THE DRAWING TO REV 02
3/31/15
PG2 7-C
PG1 8-C
PG2 7-C
03
1. CHANGE PRODUCTION TO PRE-PRODUCTION
2. ADDED NOTE 8 FOR SYMBOL CALL OUT.
3. UPDATED NOTE 5 CALL OUT TO NOTE 4 CALLOUT ON SHEET 2 VIEW
4/2/15
04
1. ADDED NOTE 9 TO CALL OUT CRITICAL TO FUNCTION DIMENSIONS.
2. ADDED POSTION TOLERANC TO DIAMETER OF HOLES.
4/23/15
PG1 B2
PG1 C3
05 1. REMOVED CTF CALLOUTS ON BASIC HOLE TO HOLE DIMENSIONS. 5/21/15
PG2 C6 06 1. ADDED CTF CALLOUTS TO MID ALIGNMENT FEATURES. 6/29/15
PG2 B7
PG1 B1
PG1 B2
07
1. UPDATED COSMETIC REV ON PART TO MATCH DRAWING REV
2. UPDATED HOLES TRUE POSTION TOLERANCE FROM 0.1 TO 0.25
3. UPDATED PROFILE FROM .125 TO 0.2
10/20/15
PG1 C1
PG2 B5
08
1. CHANGED PROFILE CALLOUT TO TRUE POSITION AND TOLERANCE FROM
0.1 TO 0.3.
2. REMOVED PROFILE DIMENSION.
2/11/16
PG1 D7
PG2 B7
PG2 A4
PG2 B5
PG1 C2
PG1 C1
PG1 C3
09
1. REMOVED NOTE #4F TO ELIMINATE THE REVISION OFF THE PART.
2. ADDED A LARGE VISIBLE SCREWDRIVER SYMBOL FOR TIM BREAKER.
3. ADDED BIGGER ROUNDS TO LATCH FEATURES.
4. ADDED NOTE 11.
5. CHANGED COSMETIC TEXT FROM PUSH TO LATCH.
6. REMOVED CTF SYMBOLS FROM GUIDE POSTS.
7. INCREASED SIZE OF PIN 1 TRIANGLE HOLE.
8. ROLLING PART NUMBER FROM H53249-002 TO H53249-003.
6/3/16
PG1 A2
PG2 B7
10
1. REMOVED FIVE CTF DIMENSIONS ON PAGE 1 AND TWO ON PAGE 2.
2. REMOVED COSMETIC TEXT "PRE-PRODUCTION"
7/16/16
NOTES; UNLESS OTHERWISE SPECIFIED:
1. REFERENCE DOCUMENTS
ASME Y14.5M-2009 - STANDARD DIMENSION AND TOLERANCES
UL 94 - UL FLAMABILITY TESTING
164997 - INTEL MARKING STANDARD
ISO-11469 - MATERIAL MARKING STANDARD
BS-MTN-0001-INTEL ENVIRONMENTAL PRODUCT SPECIFICATION
INTEL COLOR MATCHING SPECIFICATION (610204)
2. FEATURES NOT SPECIFIED ON DRAWING SHALL BE CONTROLLED BY 3D CAD
FOR FEATURES NOT EXPLICITLY TOLERANCED:
(BASIC DIMENSIONS FROM 3D CAD MODEL).
3. MATERIAL: MAY USE INTEL ENGINEERING APPROVED EQUIVALENT.
A) TYPE: PC-ABS
B) COLOR: BLACK
C) MINIMUM UL FLAMMABILITY RATING 94-V0
D) 15% REGRIND ALLOWED.
E) MUST WITHSTAND 120
C WITHOUT DEFORMING
4 MARK PART APPROXIMATELY WHERE SHOWN PER INTEL MARKING
STANDARD (164997) WITH THE FOLLOWING INFORMATION.
MARKING SHOULD BE ENGRAVED INTO PART USING AN INSERT IN THE TOOL SO THAT
INFORMATION CAN BE EASILY CHANGED.
OTHERWISE, BAG AND TAG WITH THE FOLLOWING INFORMATION.
(NOTE PRIORITY IN ORDER LISTED)
A) SUPPLIER PART NUMBER
B) INTEL PART NUMBER
C) CAVITY NUMBER (IF APPLICABLE)
D) DATE CODE
5. DEGATE: FLUSH TO -0.25 MM [-.010"].
6. EJECTOR MARKS: FLUSH TO MINUS 0.0 MM/-0.125 MM [.000 IN/-.005 IN].
7. SHARP CORNERS MAY BE CHAMFERED, OR ROUNDED TO 0.25MM (.010") RADIUS,
UNLESS OTHERWISE SPECIFIED.
8 MARK SYMBOL APPROXIMATELY WHERE SHOWN PER INTEL MARKING
STANDARD (164997) WITH THE FOLLOWING INFORMATION.
MARKING SHOULD BE ENGRAVED INTO PART USING AN INSERT IN THE TOOL.
9.DIMENSIONS MARKED ARE CRITICAL TO FUNCTION DIMENSIONS (CTF).
10 MEASURE IN RESTRAINED XHATCHING LOCATIONS WITH 2-5 NEWTONS.
11 MARK SYMBOL APPROXIMATELY WHERE SHOWN PER INTEL PART MARKING STANDARD
(164997) OPTIONAL.
10
PIN 1 INDICATOR
SECTION A-A
C
B
C
C
PARTS LIST
DESCRIPTIONPART NUMBER
ITEM NO
QTY
KNL CPU CARRIER (NON-HFI)H53249-003TOP
