13
4
5678
B
C
D
A
123
4
5678
B
C
D
A
2200 MISSION COLLEGE BLVD.
P.O. BOX 58119
SANTA CLARA, CA 95052-8119
R
0.24 A B
6.72±0.127
3.6
0
-0.2
2.2 MAX
3.59±0.05
CHAMFER 0.31 x 45 ALL AROUND
A
H12853 1 07
DWG. NO SHT. REV
SHEET 1 OF 1
DO NOT SCALE DRAWING
SCALE: 16:1
07H12853D
REV
DRAWING NUMBER
SIZE

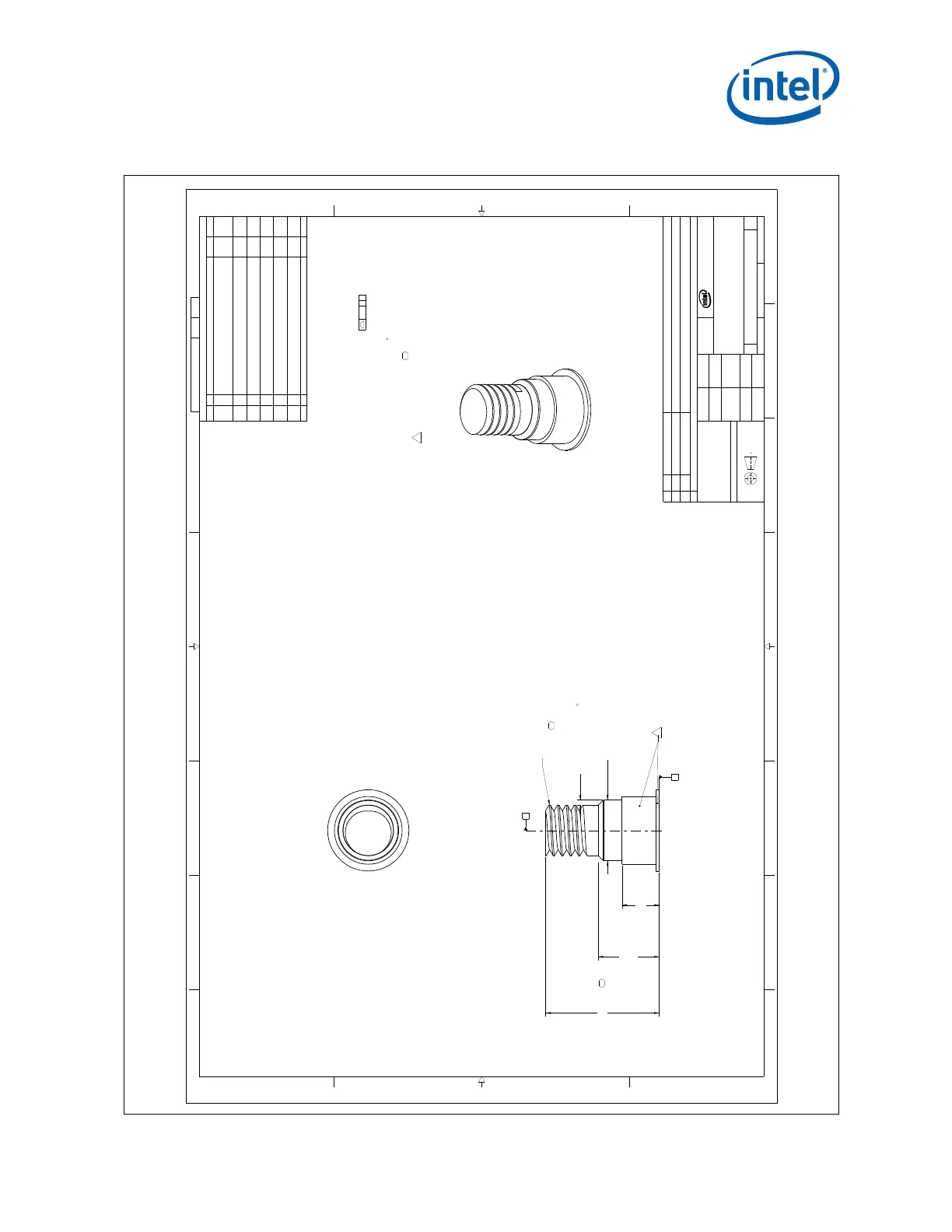

SKT P M3 BACKPLATE STUD, SHORT
TITLE
DEPARTMENT
SEE NOTESSEE NOTES
FINISHMATERIAL
-
DATEAPPROVED BY
09/11/15
DATECHECKED BY
08/14/13
DATEDRAWN BY
08/14/13
DATEDESIGNED BY
DIMENSIONS ARE IN MILLIMETERS
THIRD ANGLE PROJECTION
REVISION HISTORY
ZONE REV DESCRIPTION DATE APPR
- 01 TOOLING RELEASE 08/20/14
02
1. INCREASE STUD LENGTH TO 7MM.
2. ADDED CTF FOR THREADS TO BE ROLLED NOT CUT.
12/1/14
03
1. DECREASED STUD LENGTH FROM 7MM TO 6.334MM.
2. UPDATED NOTES.
3/26/15
04 1. CHANGED NOTE 4 CRITICAL TO FUNCTION SYMBOL. 4/23/15
05 1. UPDATED NOTES. 9/11/15
B8 06
1. CHANGED THE HEIGHT FROM 6.334 TO 6.72
2. PART NUMBER ROLLED FROM H12853-003 TO H12583-004.
2/11/16
A7 07 1. REMOVED CTF DIMENSIONS. 7/11/16
NOTES:
1. REFERENCE DOCUMENTS
ASME Y14.5-2009-STANDARD DIMENSION AND TOLERANCES
UL 1439 - UL SHARP EDGE TESTING
2. FEATURES NOT SPECIFIED ON DRAWING WITHOUT SPECIFIED
TOLERANCE SHALL BE CONTROLLED BY 3D CAD DATABASE. FOR
FEATURES NOT EXPLICITLY TOLERANCED: (BASIC DIMENSIONS
FROM THE 3D CAD MODEL):
3. MATERIAL:
- SUS 416
- CRITICAL MECHANICAL PROPERTIES: 400 MPa MIN
- PROCESS TEST: 168 HRS 85
C / 85% HUMIDITY WITH NO
VISIBLE CORROSION
4. DIMENSIONS MARKED ARE CRITICAL TO FUNCTION
DIMENSIONS (CTF).
5 FEATURE DETAIL PER VENDOR SPECIFICATION
MUST MEET DURABILITY SPECIFICATIONS DEFINED IN
ASSEMBLY DRAWING
6. REFERENCE AND NON-DIMENSIONED FEATURES MAY BE MODIFIED
PER INTEL APPROVAL
M3x0.5 CLASS 6g EXTERNAL"ROLLED"
THREAD
5 FEATURE DEFINED BY PRESS FIT
IN ASSEMBLY.
C
C
C
B
PARTS LIST
DESCRIPTIONPART NUMBER
ITEM NO
QTY
SKT P M3 BACKPLATE STUD, SHORTH12853-004TOP
