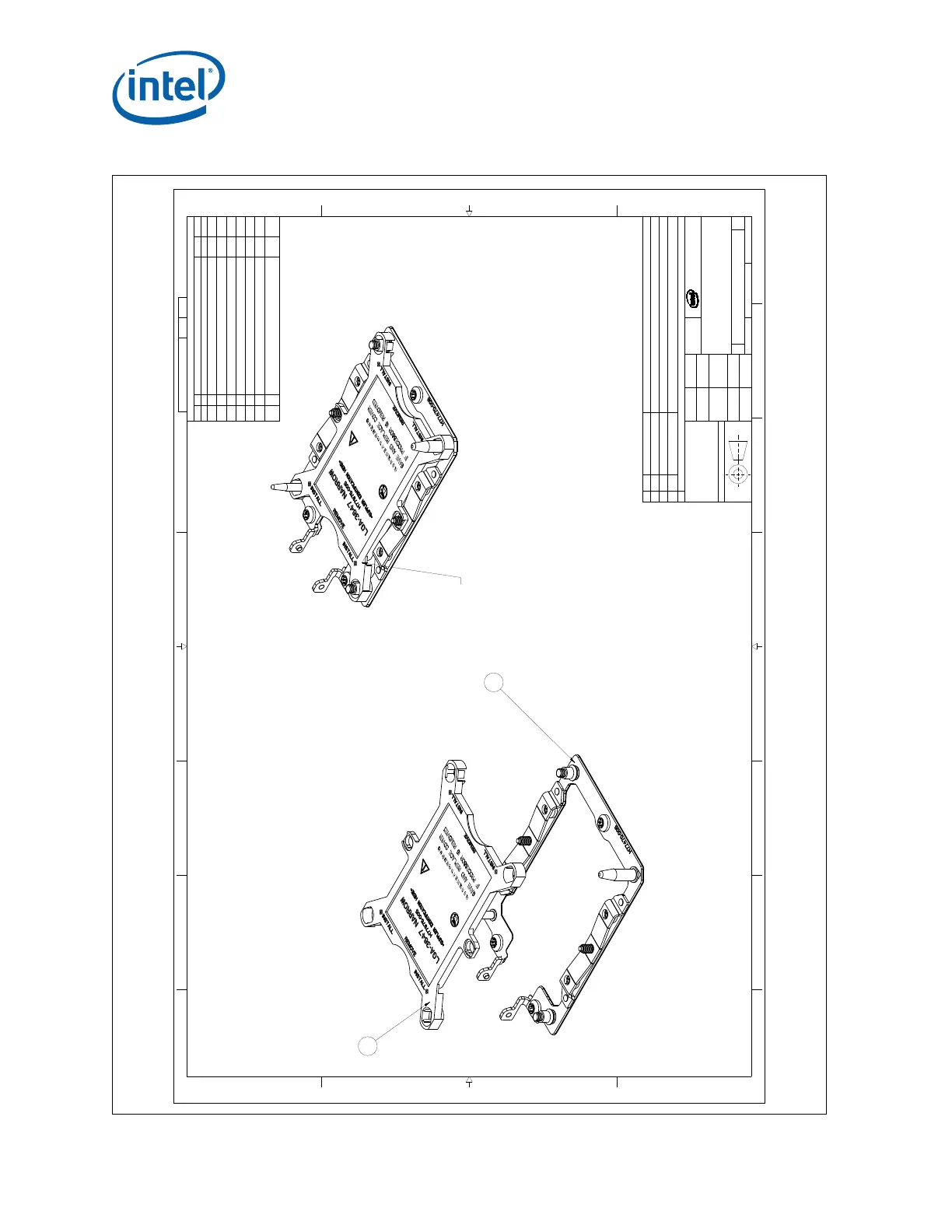

Figure E-4. Bolster Plate Assembly and Dust Cover
13
4
5678
B
C
D
A
123
4
5678
B
C
D
A
2200 MISSION COLLEGE BLVD.
P.O. BOX 58119
SANTA CLARA, CA 95052-8119
R
H78747 1 08
DWG. NO SHT. REV
SHEET 1 OF 1
DO NOT SCALE DRAWING
SCALE: 2
08H78747D
REV
DRAWING NUMBER
SIZE
KNL BOLSTER PLATE & DUST COVER ASSY
TITLE
DEPARTMENT
SEE NOTESSEE NOTES
FINISHMATERIAL
9/11/15
DATEAPPROVED BY
-
9/11/15
DATECHECKED BY
9/3/14
DATEDRAWN BY
DATEDESIGNED BY
DIMENSIONS ARE IN MILLIMETERS
THIRD ANGLE PROJECTION
PARTS LIST
DESCRIPTIONPART NUMBER
ITEM NO
QTY
H78747-008TOP
KNL BOLSTER PLATE ASSEMBLYH77470-00811
LGA3647 NRW DUST-COVERH77975-00521
REVISION HISTORY
ZONE REV DESCRIPTION DATE APPR
- 01 TOOLING RELEASE 4/8/15
02
1. ROLLED ASSEMBLY NUMBER TO -002 BASED ON ROLLING BOLSTER
PLATE ASSEMBLY TO A -002.
4/16/15
6B
03
1. PART AND REV CHANGED ON BOLSTER PLATE ASSEMBLY SO
COSMETIC PART MARKING CHANGED IN VIEW.
5/6/15
04 1. PART AND REV CHANGED ON BOLSTER PLATE ASSEMBLY. 6/11/15
05
1. ROLLED ASSY PART NUMBER FROM H78747-004 TO H78747-005
BASED ON BOLSTER PLATE, LEC GUIDE PIN CHANGES.
8/28/15
06
1. ROLLED ASSY PART NUMBER FROM H78747-005 TO H78747-006
BASED ON NEW DUST COVER DASH NUMBER
10/20/15
07
1. ROLLED ASSY PART NUMBER FROM H78747-006 TO H78747-007
BASED ON NEW SPRING ASSEMBLY (SHORTER STUD)
12/15/15
08
1. ROLLED ASSY PART NUMBER FROM H78747-007 TO H78747-008
BASED ON NEW DUST COVER (H77975-005) AND BOLSTER
PLATE ASSEMBLY (H77470-008).
6/3/16
NOTES; UNLESS OTHERWISE SPECIFIED:
1. REFERENCE DOCUMENTS
ASME Y14.5M-2009 - STANDARD DIMENSION AND TOLERANCES
164997 - INTEL MARKING STANDARD
2. FEATURES NOT SPECIFIED ON DRAWING SHALL BE CONTROLLED BY 3D CAD DATABASE.
3. CLEAN AND DEGREASE BACKPLATE ASSEMBLY BEFORE ATTACHING DUST COVER.
4. FINAL ASSEMBLY SHALL BE FREE OF OIL AND DEBRIS.
DUST COVER MUST SNAP INTO BOLSTER
PLATE ASSEMBLY BEFORE SHIPPING
1
2
