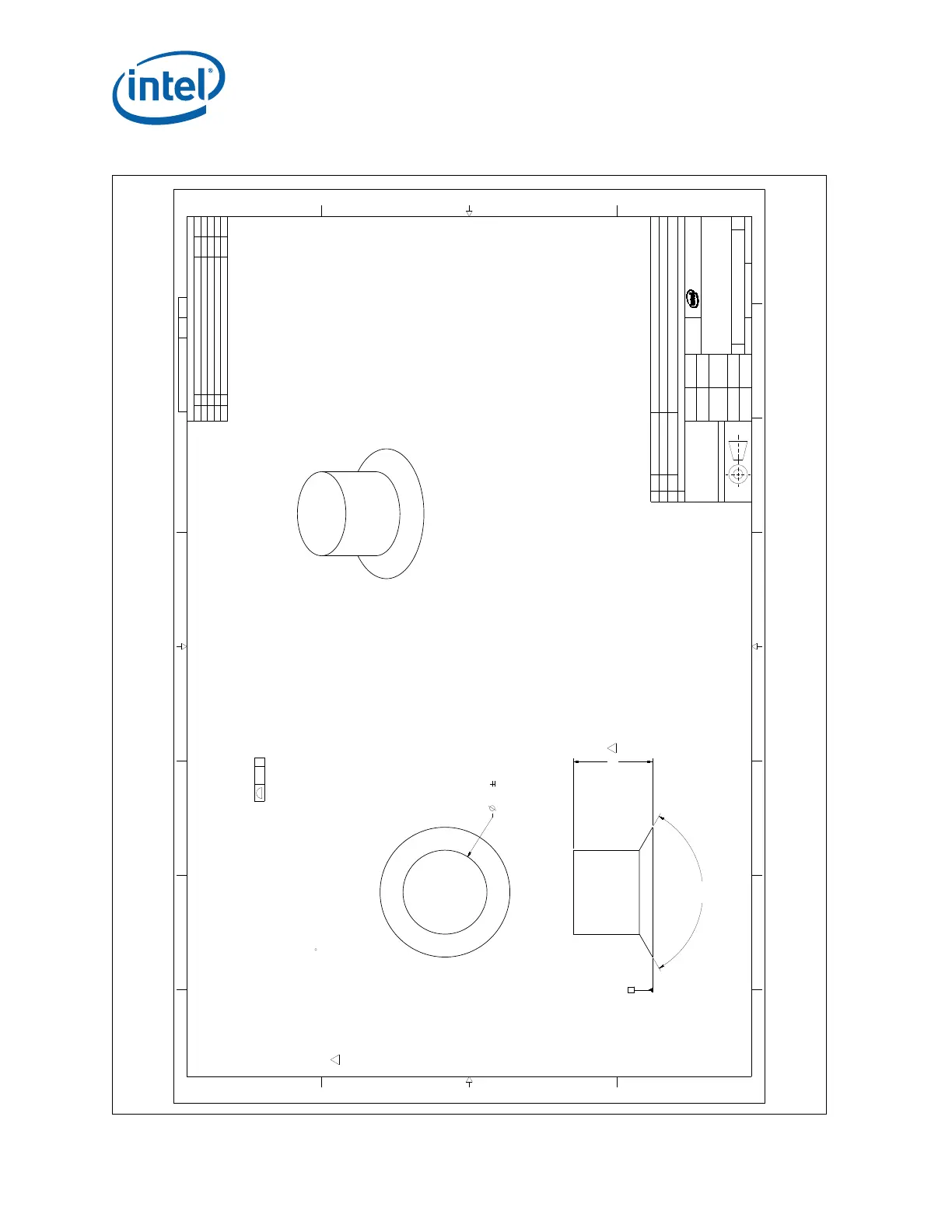

Figure E-24. Bolster Plate, Spring Rivet
13
4
5678
B
C
D
A
123
4
5678
B
C
D
A
2200 MISSION COLLEGE BLVD.
P.O. BOX 58119
SANTA CLARA, CA 95052-8119
R
0.2 A
120°
3.175 0.05
A
(3) 4
H19325 1 04
DWG. NO SHT. REV
SHEET 1 OF 1
DO NOT SCALE DRAWING
SCALE: 25
04H19325D
REV
DRAWING NUMBER
SIZE
SKT-P-KNL, SPRING RIVET
TITLE
DEPARTMENT
SEE NOTESSEE NOTES
FINISHMATERIAL
DATEAPPROVED BY
-
2/20/14
DATECHECKED BY
8/15/13
DATEDRAWN BY
8/13/13
DATEDESIGNED BY
DIMENSIONS ARE IN MILLIMETERS.
THIRD ANGLE PROJECTION
PARTS LIST
DESCRIPTIONPART NUMBER
ITEM NO
QTY
SKT-P-KNL, SPRING RIVETH19325-001TOP
REVISION HISTORY
ZONE REV DESCRIPTION DATE APPR
- 01 TOOLING RELEASE 9/5/14
02 UPDATED NOTES 3/27/15
03
MODIFIED SQUARE ON NOTE 4 TO A TRIANGLE. 4/23/15
04 UPDATED NOTE 2 AND ADDED DATUM. 9/15/15
NOTES:
1. REFERENCE DOCUMENTS
ASME Y14.5M-2009 - STANDARD DIMENSION AND TOLERANCES
UL1439 - UL SHARP EDGE TESTING
2. FEATURES NOT SPECIFIED ON DRAWING SHALL BE CONTROLLED BY
3D CAD DATABASE. FOR FEATURES NOT EXPLICITLY TOLERANCED:
(BASIC DIMENSIONS FROM THE 3D CAD DATABASE)
3. CRITICAL MATERIAL PROPERTIES:
- RIVET FAILURE LOAD > 500N (112LBF).
- RIVET MUST NOT SHEAR, DEFORM, OR CRACK BELOW LOAD LIMIT.
- SEE ASSEMBLY DRAWING H77470/H77929/H78203/H78902 FOR DETAILS
FINISH:
- PROCESS TEST: 168 HRS 85
C / 85% HUMIDITY WITH NO
VISIBLE CORROSION
4 RIVET LENGTH DETERMINED BY ASSEMBLY DRAWING H77470/H77929/H78203/H78902
5. REFERENCE AND NON-DIMENSIONED FEATURES MAY BE MODIFIED
PER INTEL APPROVAL
