Planning Installation
17

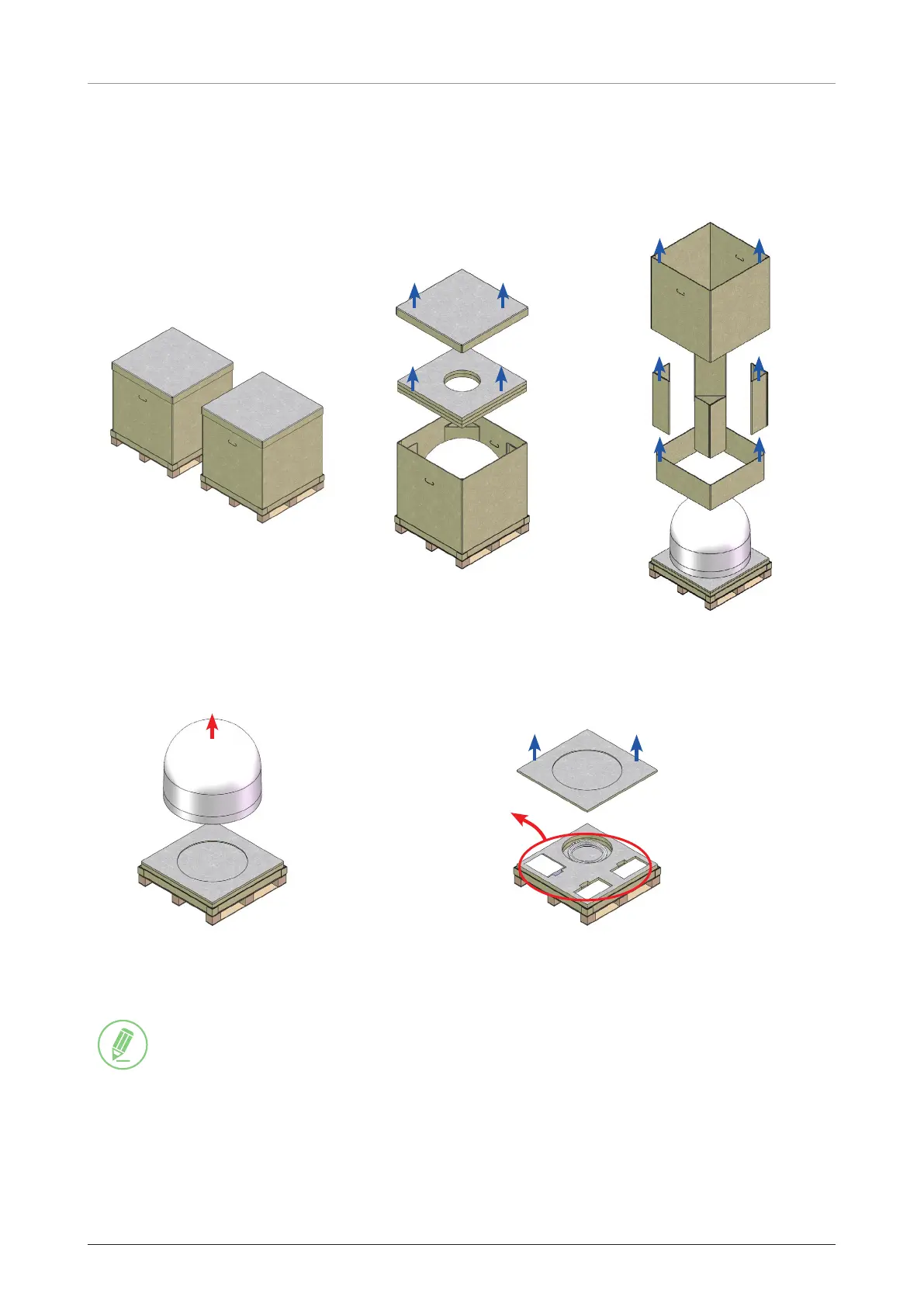

4.5 Unpacking System Package
Follow the steps for easy and safe unpacking. The system package consists of two packages containing
the Primary Antenna Package (Box 1) and Secondary Antenna Package (Box 2).
1. Locate System Packages
(Primary Antenna Package
(Box 1) and Secondary
Antenna Package (Box 2).
2. Remove the top cover and
protection forms as shown.
3. Remove the inside paper
supports and body of box.
4. Take out the Antenna. 5. Remove the bottom cover and take out the items.
• Refer to the Included items “4.3.3 Packing List” on page 15
NOTE
• Make sure all the parts under the bottom cover (Step 5) are removed before the packaging is discarded.
• Consider keeping the packaging material in case the terminal may need to be relocated in the future.
