Chapter 6. Installing Indoor Unit (IDU)
6.1 CNX Dimensions
Confirm the dimensions of the CNX before installing it.
Unit: mm (inches)
114.2 (4.49)
125 (4.92)
35.2 (1.38)

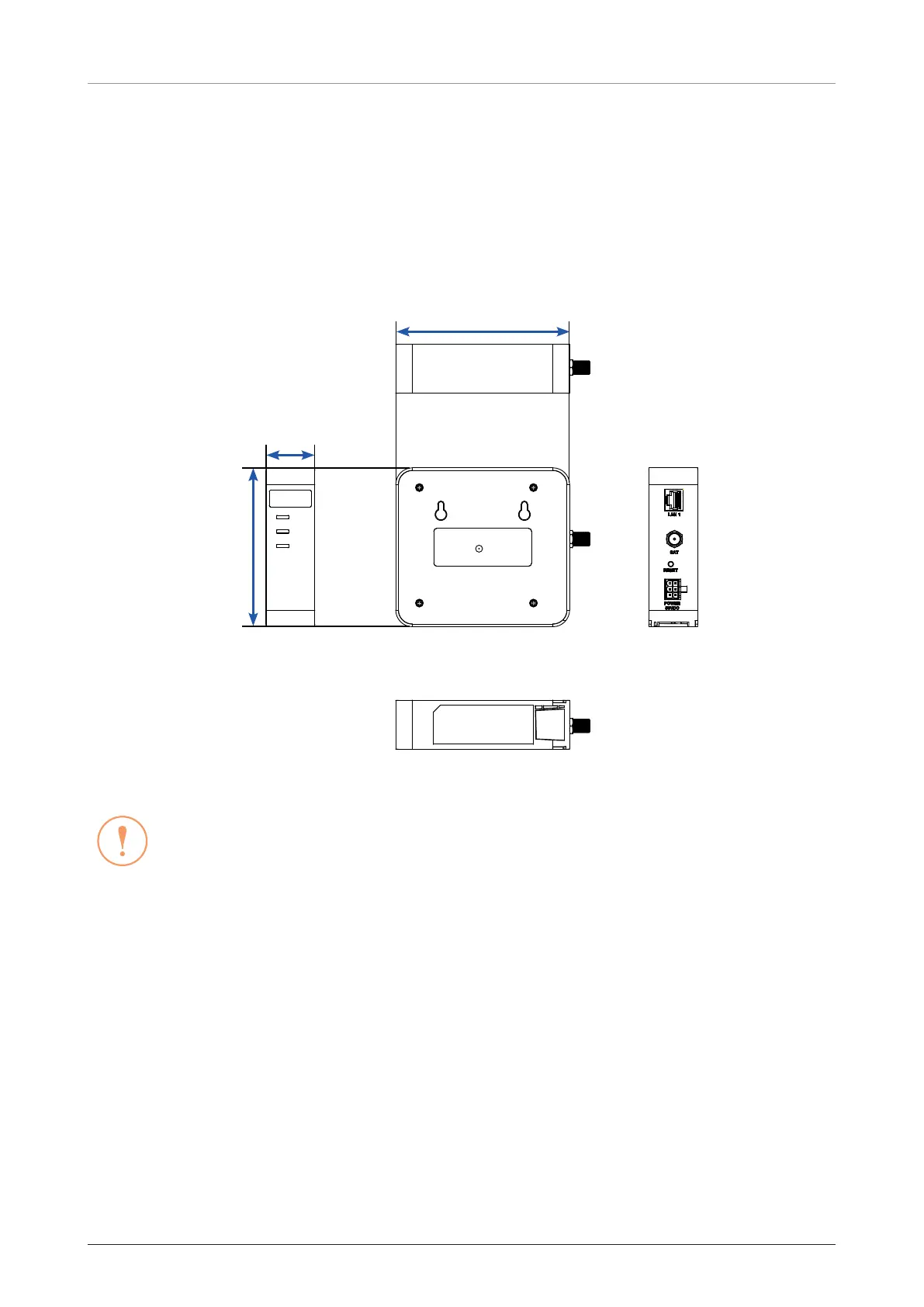

Figure 11: CNX Dimensions
CAUTION
• This equipment design typically applies to commercial or industrial equipment expected to be installed
in locations where only adults are normally present.
• This product is intended to be supplied from Intellian by a Listed Power Adapter, rated 56 V DC, 4.48 A
minimum, if need further assistance, please contact OneWeb for further information.
• Ensure to connect the power cord to a socket-outlet with earthing connection.
• Never open the equipment. For safety reasons, the equipment should be opened only qualied service
personnel. This appliance classication of use by Skilled person.
