5.4.7 Placing Concrete Blocks on Base Panels
1. Place the concrete blocks on the base panel to hold the weight of the antennas.
One concrete block is 39 x 19 x 19 cm (15.3 x 7.5 x 7.5 inches) /17.56 kg (38.7 lbs).
The area of the assembled base panel is 200 x 90 cm (78.7 x 35.4 inches).
2. Arrange 18 concrete blocks on the base panel in a single layer.
The total weight of 18 concrete blocks is 316.08 kg (696.8 lbs).
Concrete Blocks
3-Base Panels

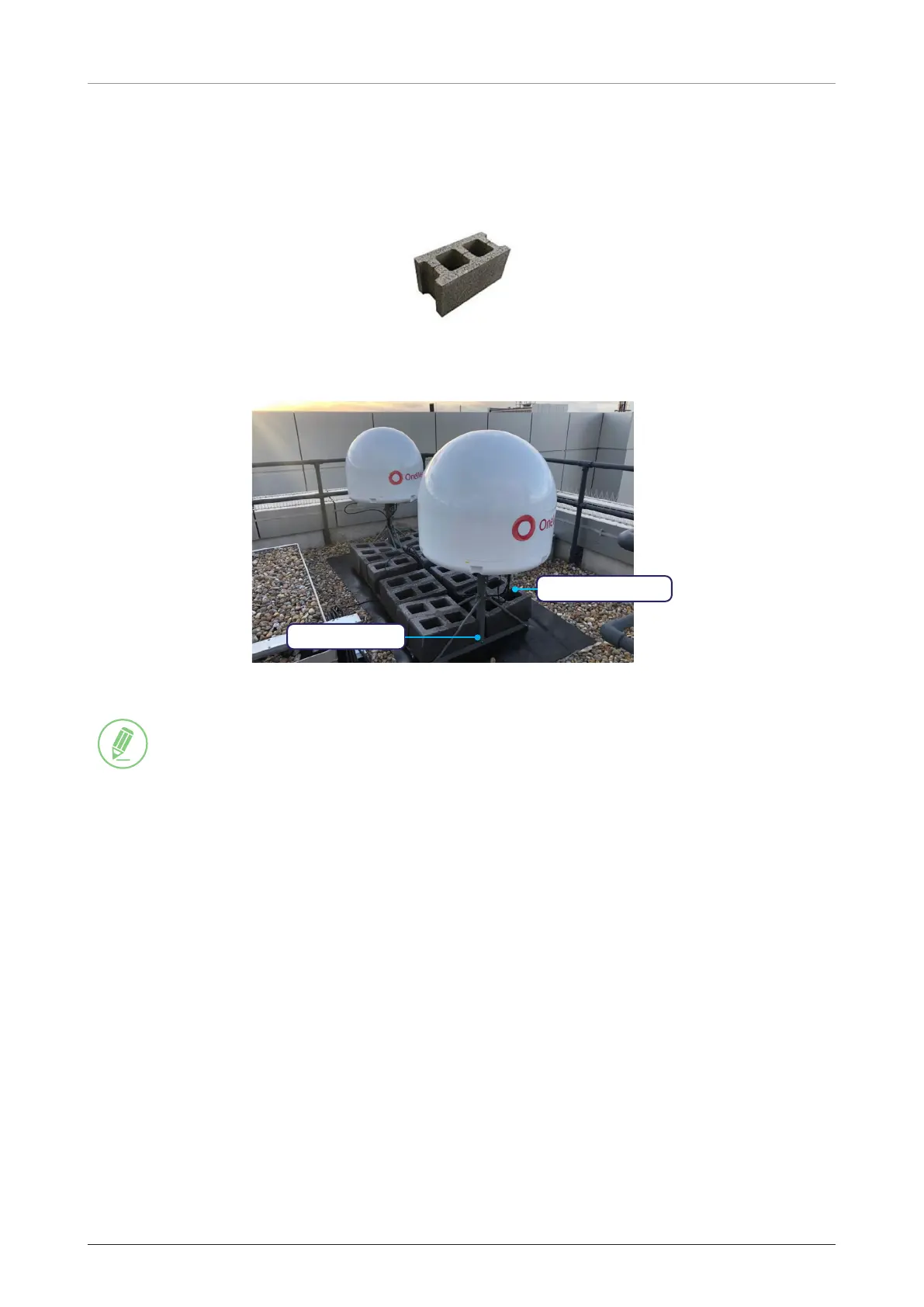

Figure 5: Placing Concrete Blocks on Base Panel of NPM
NOTE
If you want to use alternative weight instead of concrete blocks as shown above, please make sure that total
weight of the alternative should meet suggested weight, 316.08 kg (696.8 lbs).
