OW70L-Dac - OneWeb LEO User Terminal
36
6.2 Antenna System Configuration
For the proper operation of your satellite communication system, it must be connected with all the provided
components as shown in the figures below.
The basic antenna system consists of two antennas and a CNX.
The Primary Antenna Includes the SSM Module, which is capable of controlling and managing two antenna
systems simultaneously.
Signal Cable: for Control Signal
RF (Rx) Cable: for Rx + Power
Ethernet Cable: for Ethernet
RF (Tx) Cable: for Tx
Outdoor Units
Indoor Units
Primary Antenna Secondary Antenna
RG6(or RG11) Coax Cable:
Power + Data
Includes
SSM Module
CNX
Power Adapter (AC-DC) 250 W

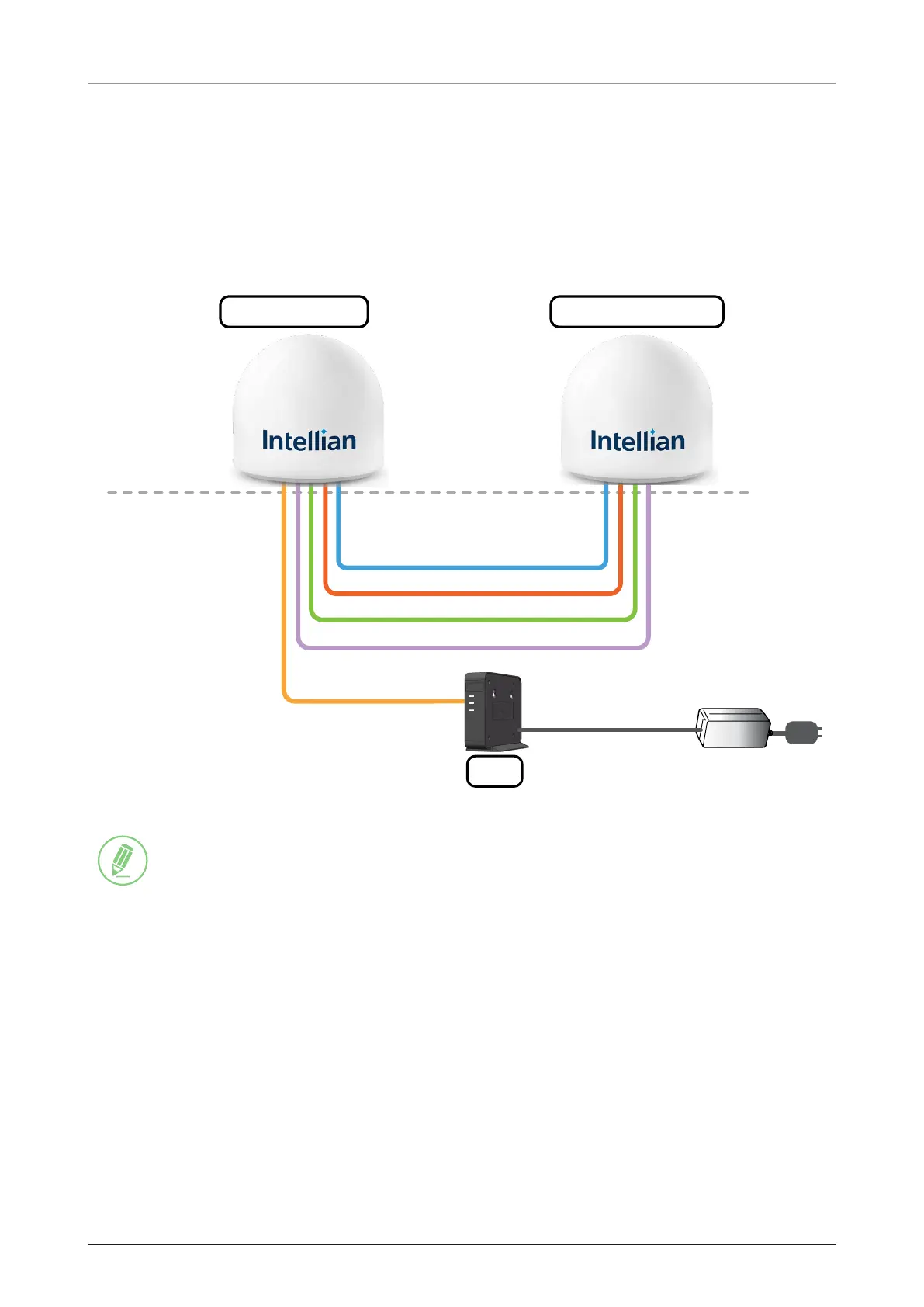

Figure 12: Dual Antenna System Configuration of OW70L-Dac (Standard)
NOTE
To connect the primary antenna to CNX, use the RG11 Coaxial Cable or better cable. The maximum cable
length recommended 100 meters for RG11.
