Installing Above Deck Unit (ADU)
25
5.4.3 Levelling the Mounting Plate

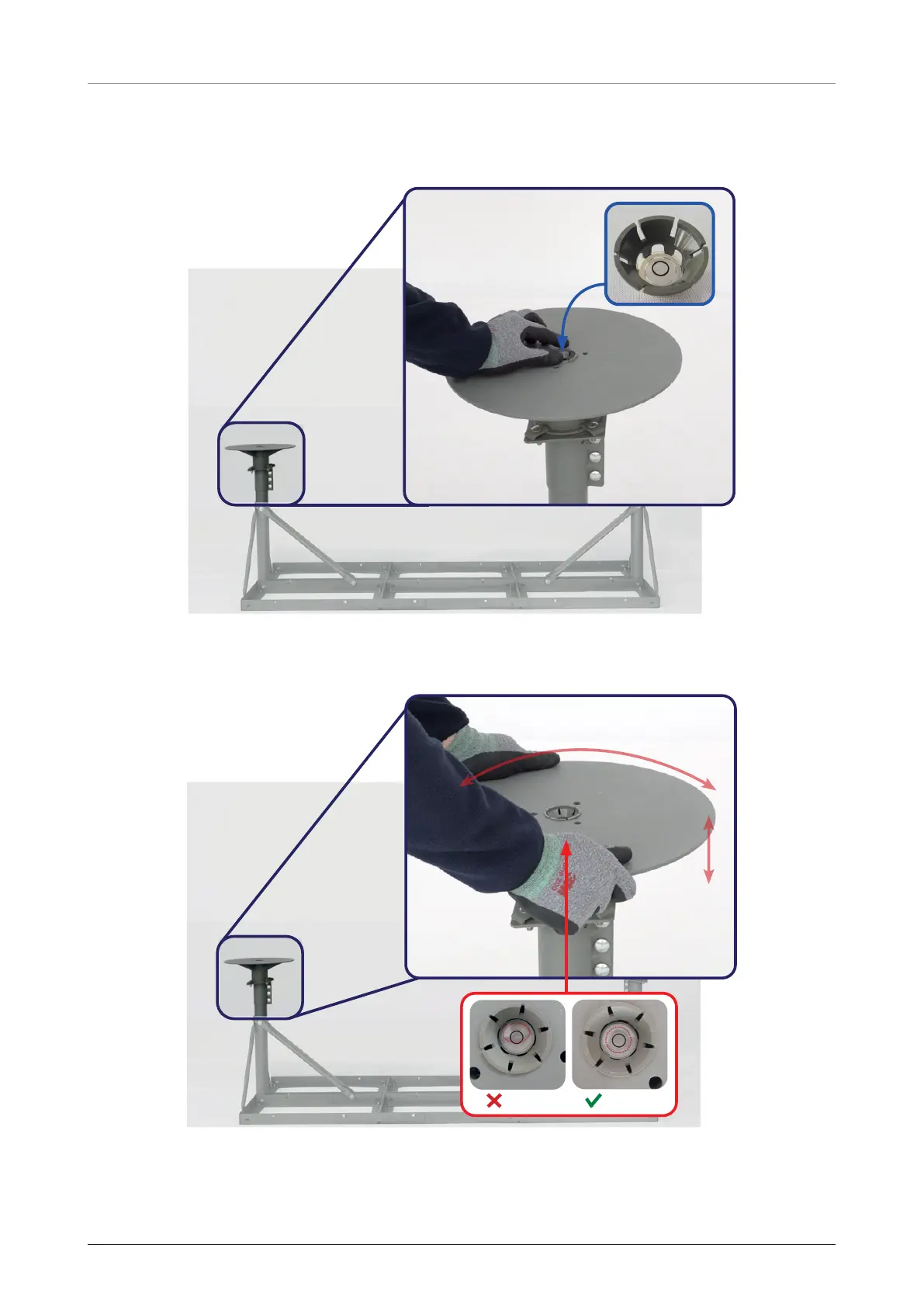

1. Put a Levelling tool on the centre of the mounting plate.
Mounting Plate
NPM
Levelling tool
2. Rotate and adjust up & down the plates until they are perfectly parallel to the ground using the Levelling
tool. Check to see whether the bubble is aligned with the guide circle.
Mounting Plate
(Wrong)
(Correct)
