OW70L-Dac - OneWeb LEO User Terminal
32
5.6 Connecting Cable to Antenna
NOTE
Make sure of the following before installing system cables.
1. All cables with connectors need to be fully secured and protected from physical damage.
2. Don’t acutely bend any cables during installation.
3. To reduce any damage from water (mist) or Ultraviolet Rays (UV), tape over using waterproof and UV
protective tape all the connectors located outside.
5.6.1 Connecting Cable to Primary Antenna
Terminate F(M) Connector on each end of RG6 (or RG11) Cable and Connect the F-Connector to the Power
& Data connector on the Primary Antenna and the CNX Unit.
SAT
RG6(or RG11) Coax Cable
CNX
Primary Antenna
Outdoor Units
Indoor Units
Power + Data
Power &
Data connector
RG6(or RG11)
Coax Cable

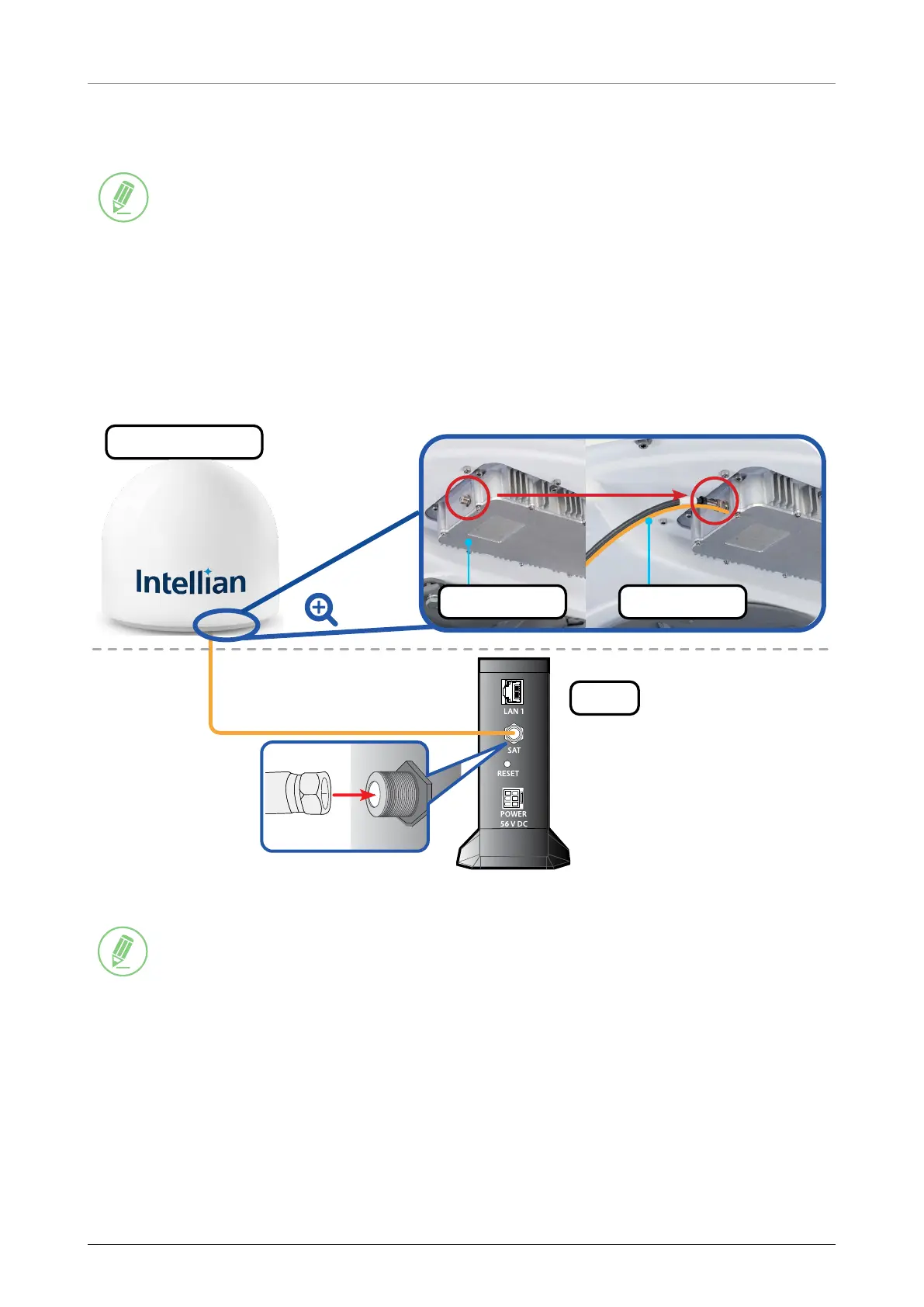

Figure 8: Cable Connection of CNX to Antenna
NOTE
• To connect the primary antenna to CNX, use the RG11 Coaxial Cable or better cable. The maximum
cable length recommended 100 meters for RG11.
• A separate purchase of RG11 Coax cable is required.
