Installing Above Deck Unit (ADU)
27
C. When using a LUI
1. Connect an Ethernet cable from the LAN Port on the front panel of CNX to a LAN Port of PC. The Data
LED indicator will turn Green if CNX is connected.
2. Enter the IP address into your web browser’s address bar to log in to the Local User Interface (LUI).
• IP Address: 192.168.100.1 (Default)

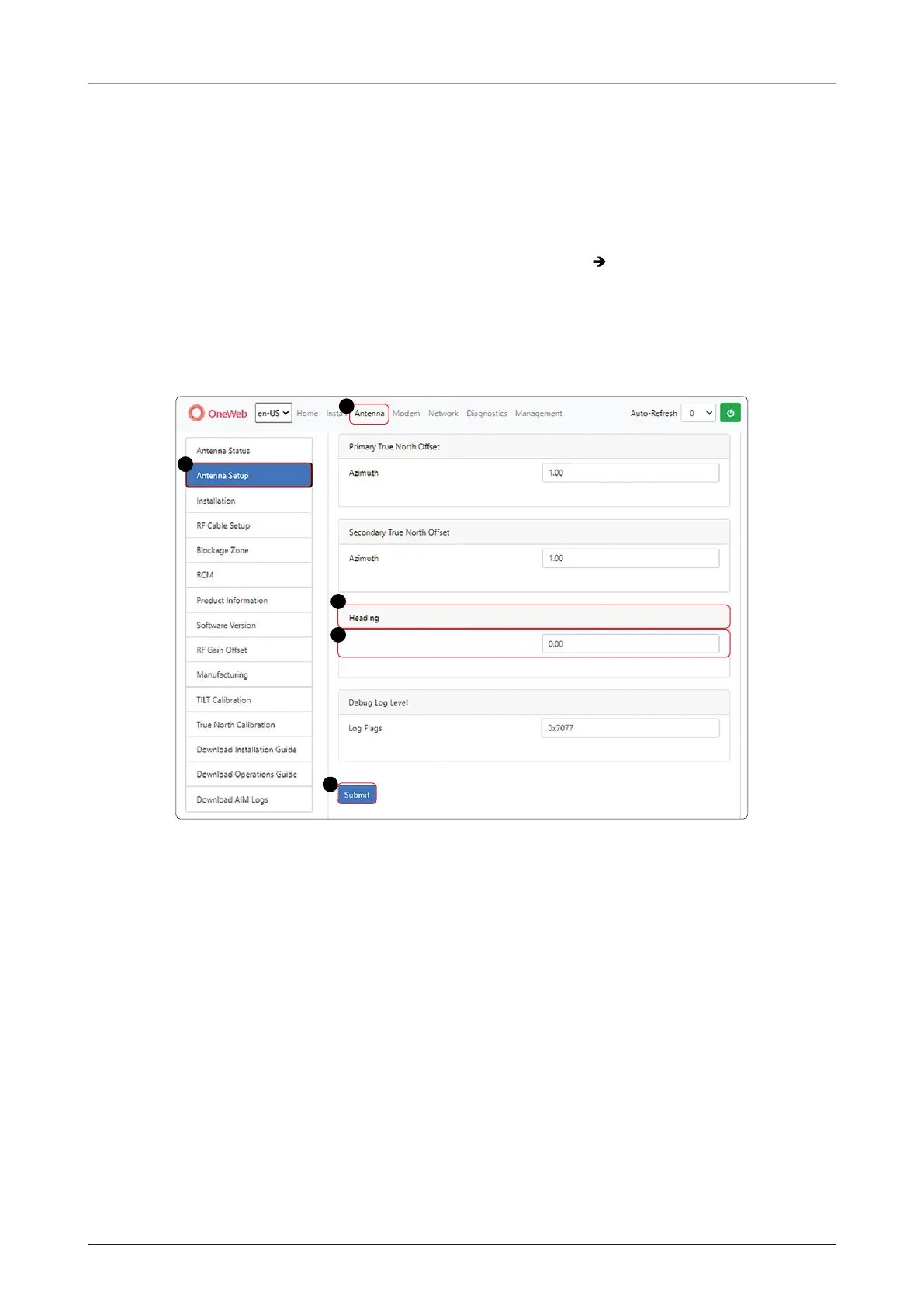

3. Select the Antenna on the main menu then go to the Antenna Setup
Heading menu.
4. For setting the true north offset, you need to select a satellite which is trackable in satellite information.
When the antenna tracks the selected satellite, true north offset can be calculated.
• Heading(º): Enter the True north Offset Range (-180° – 180°).
5. Click the Submit button to apply the settings to the system.
3
2
5
Heading (º)
4
