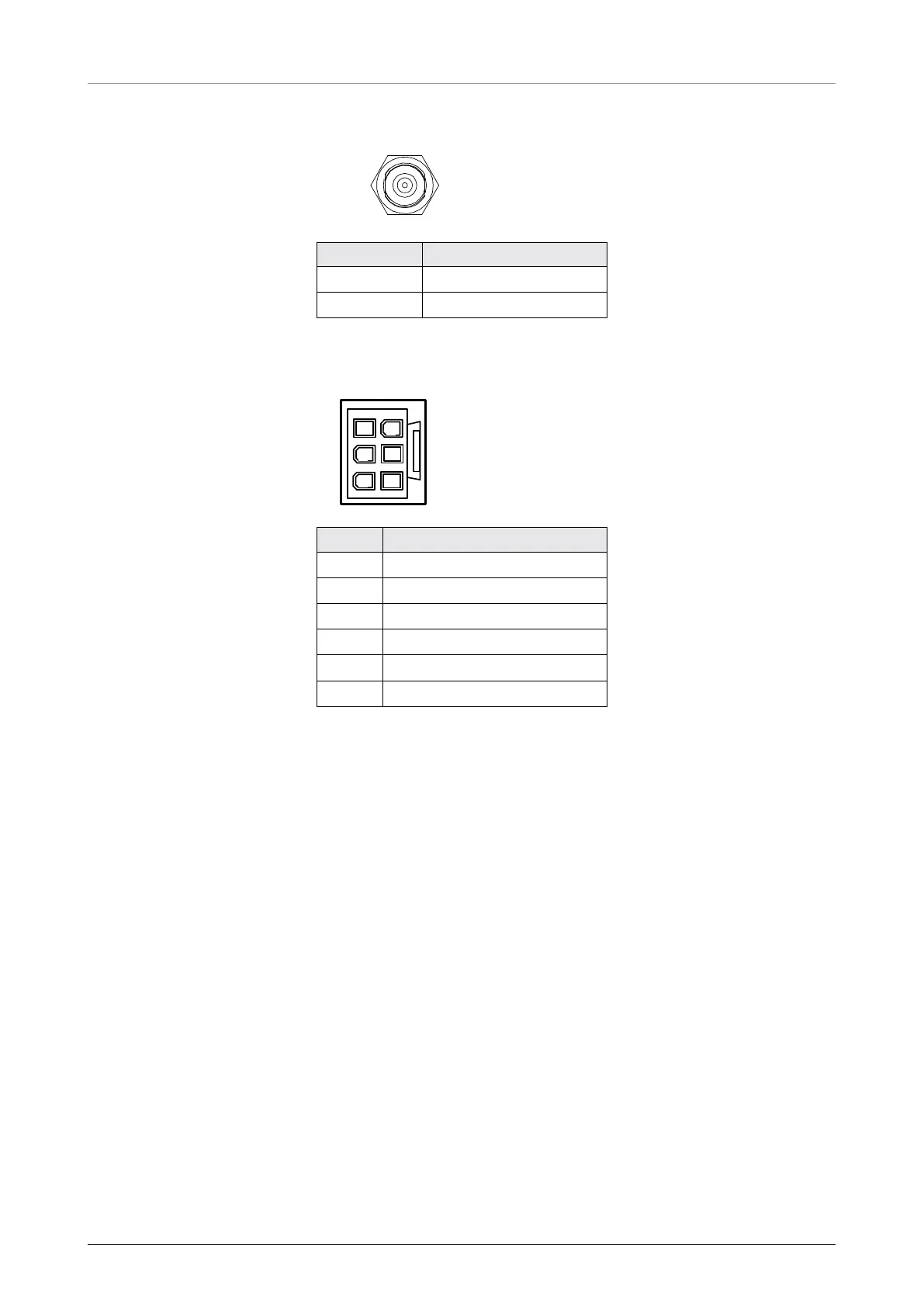

Installing Below Deck Unit (BDU)
39
Coax Connectors
RF F Type Female
Conductor Function
Inner Power + Data
Outer GND
Power Connector
1
2
3
4
5
6
6 Contact Power Plug Male
Pin Signal
1
Return
2
GND
3
Return
4
+56V DC
5
NC
6
+56V DC
