Intermec EasyCoder PD41 User Manual

Appendix E — Interfaces
90 EasyCoder PD41 Printer User’s Guide
RS-232 Serial Interface
Protocol
To change the Serial settings, see Chapter 5, “Configuring
Setup”.
Interface cable
The computer end of the cable depends on the computer model.
The printer end is a DB-9pin plug, as shown below.

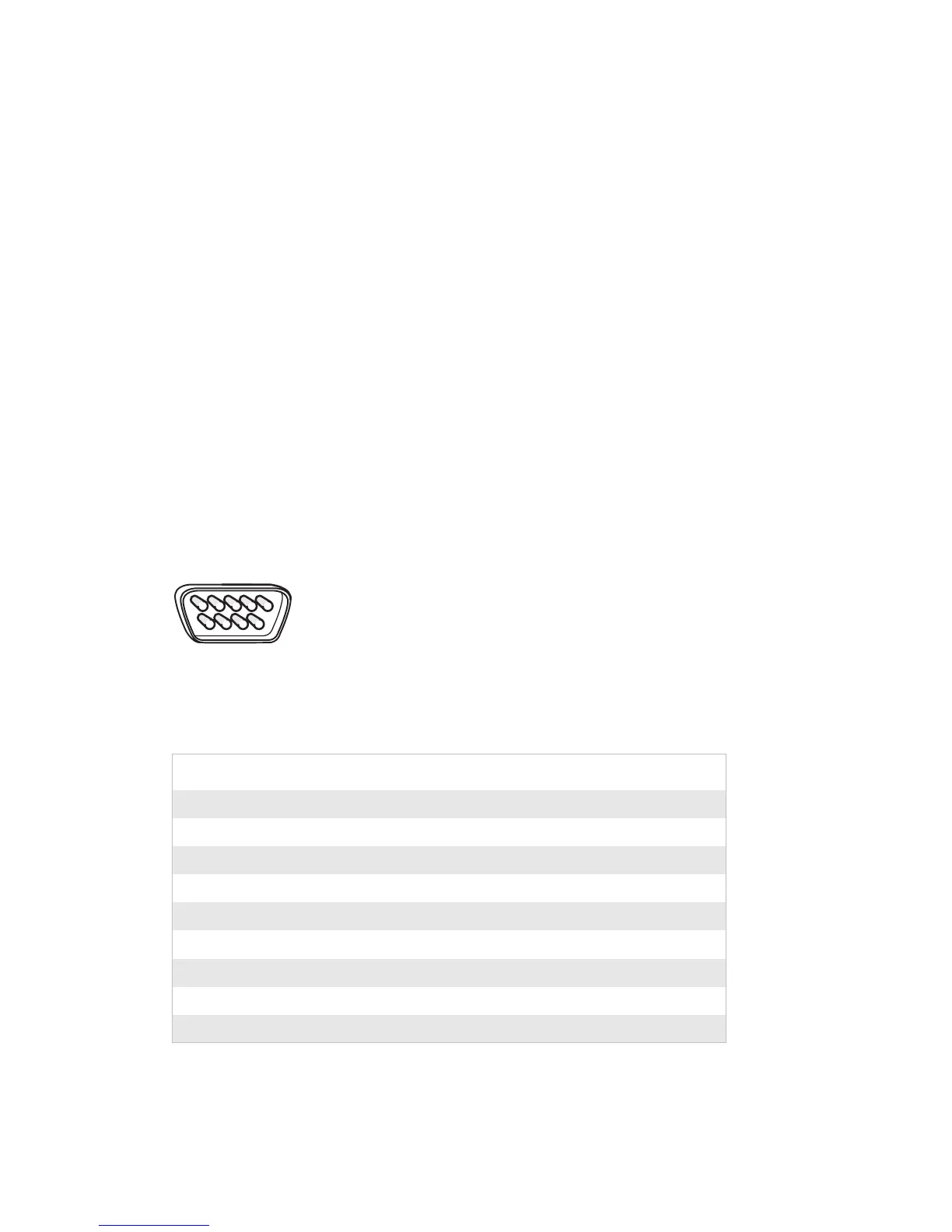

RS-232 DB9-pins
Default Setup
Baud rate 9600
Character length 8 bits
Parity None
Stop bits 1
Handshaking XON/XOFF and RTS/CTS
Signals on the printer’s serial port:
DB-9 Signal Meaning
1 External +5V DC Max 500mA
2 TXD Transmit data
3 RXD Receive data
4
5 GND Ground
6
7 CTS Clear to send
8RTSRequest to send
9
1
23
45
6
78
9

Intermec EasyCoder PD41 Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power requirements	100-240 VAC ±10%, 45-65 Hz
Media thickness	2.3 - 9.8 mm
Maximum label width	104 mm
Maximum label length	0.15 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	453 mm
Width	273 mm
Height	270 mm
Weight	13000 g
