Intermec EasyCoder PD41 User Manual

Appendix E — Interfaces
92 EasyCoder PD41 Printer User’s Guide
EasyLAN Ethernet Interface
The EasyLAN Ethernet interface has an RJ-45 socket for use
with a standard RJ-45 cable. The interface supports 10/100
Mbps Fast Ethernet (10BASE-T, 100BASE-TX) and is fully
compliant to the IEEE 802.3u standard. The network card MAC
adress can be found on the label below the socket.
One yellow and one green LED indicate the network status.
Parallel IEEE 1284 Interface
The parallel port supports Windows plug-n-play and additional
status reporting through IEEE 1284 nibble ID mode.
Interface cable
Parallel cable compatible with PC.
Network Status LEDs
Green On: Link
Green Off: No link
Green Blinking: Activity
Yellow Off: 10BT
Yellow On: 100BT
Pinout Description
Pin Function Transmitter Comment
1nStrobe host
2-9 Data 0-7 host
10 nAcknowledge printer
11 Busy printer
12 Perror printer
13 Select printer

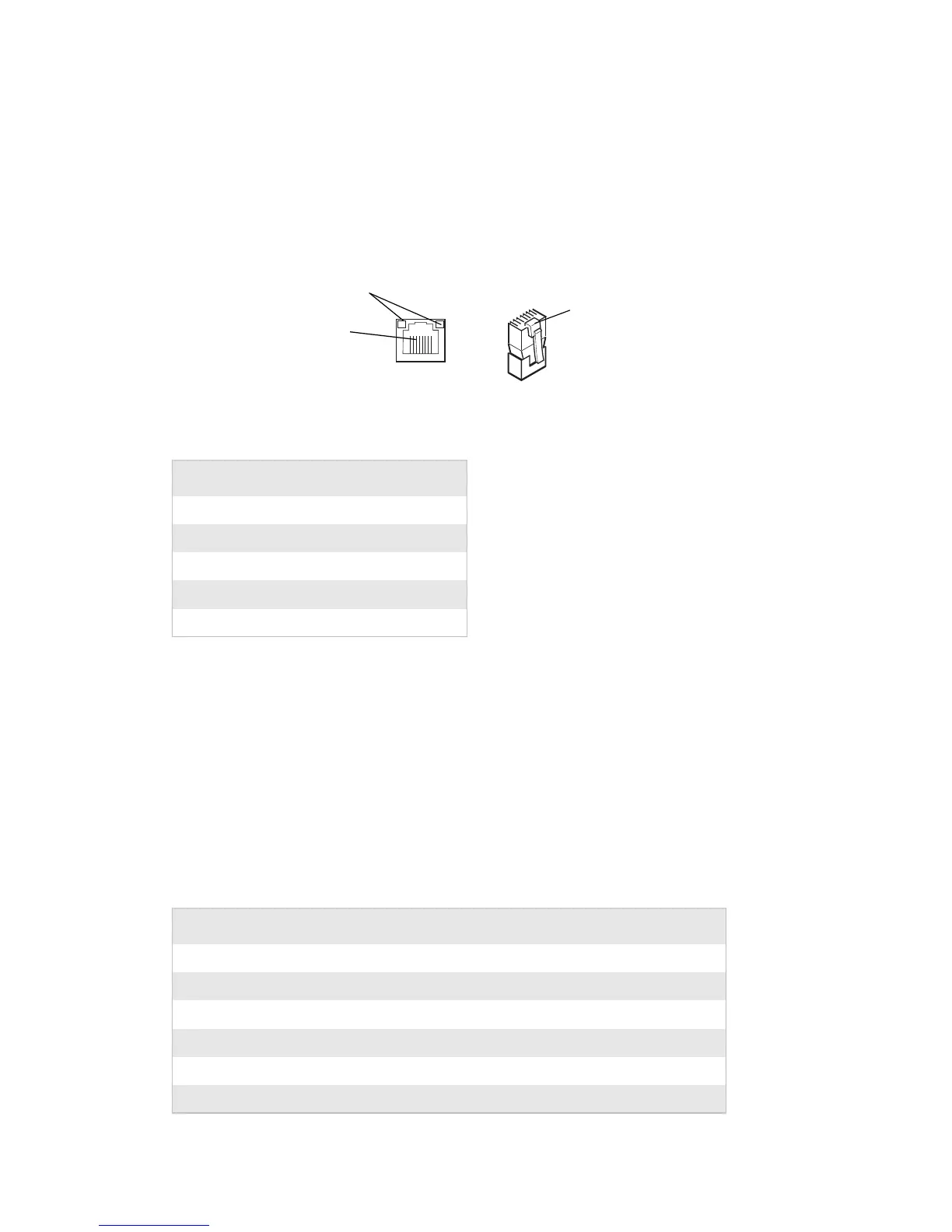

Ethernet RJ-45
Ethernet RJ-45
connector
socket
Network status LEDs

Intermec EasyCoder PD41 Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power requirements	100-240 VAC ±10%, 45-65 Hz
Media thickness	2.3 - 9.8 mm
Maximum label width	104 mm
Maximum label length	0.15 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	453 mm
Width	273 mm
Height	270 mm
Weight	13000 g
