Intermec EasyCoder PD41 User Manual

Appendix B — Media Specifications
58 EasyCoder PD41 Printer User’s Guide
Media Roll Sizes
The media roll must comply with the following dimensions:

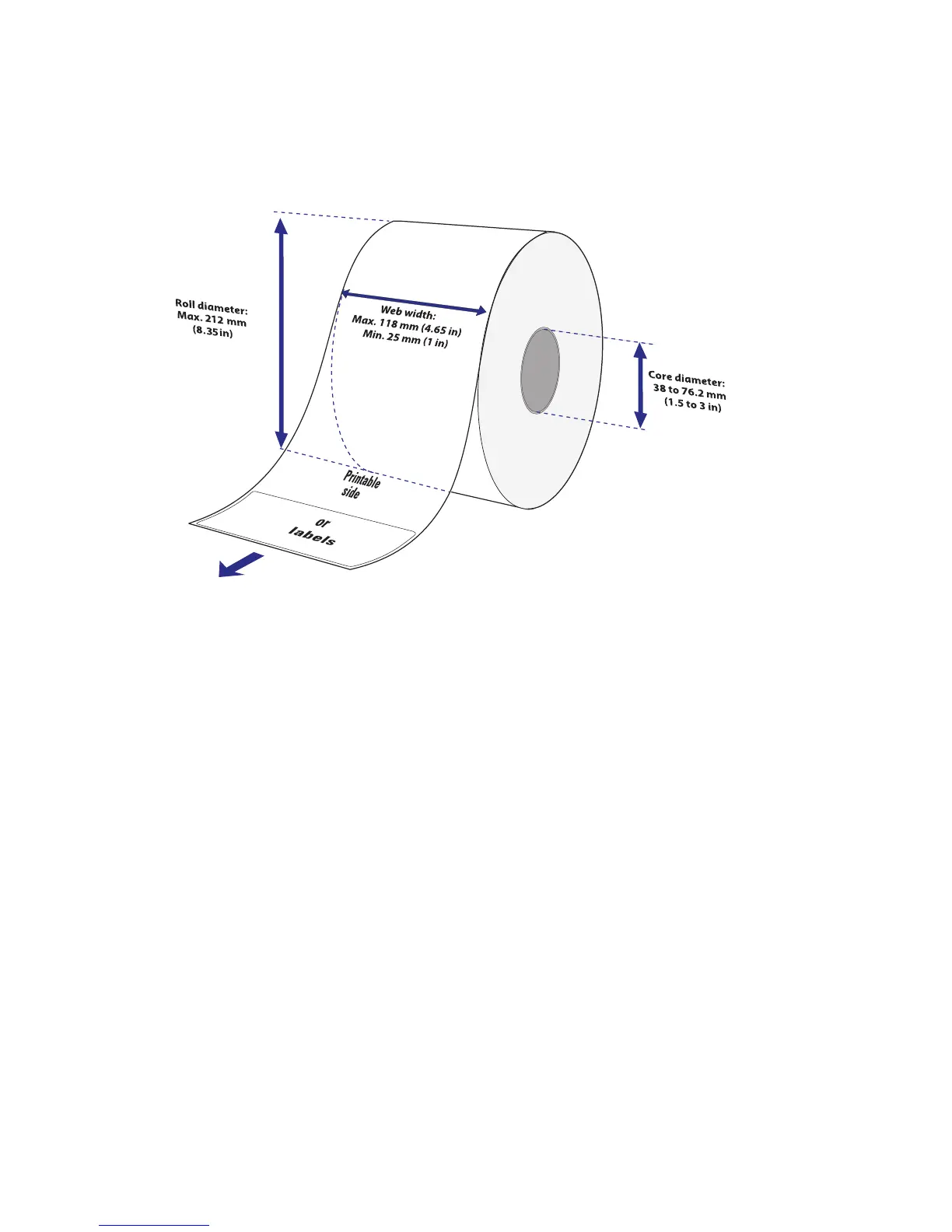

Media roll dimensions
Core
Internal Roll
Thicker media may be used, but print quality will be reduced.
the stiffness is also important, and must be balanced against
thickness to maintain print quality.
Diameters: 38 to 76.2 mm (1.5 to 3 inches)
Width: Must not protrude outside the media.
Max. diamater 212 mm 8.35 inches
Max diameter with
internal rewinder
190 mm 7.5 inches
Max. width 118 mm 4.65 inches
Max. width with cutter 114 mm 4.49 inches
Min. width 25 mm 1.00 inches
Thickness 60 to 250 μm 2.3 to 9.8 mils

Intermec EasyCoder PD41 Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power requirements	100-240 VAC ±10%, 45-65 Hz
Media thickness	2.3 - 9.8 mm
Maximum label width	104 mm
Maximum label length	0.15 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	453 mm
Width	273 mm
Height	270 mm
Weight	13000 g
