Chapter 5 — Setting up the Printer
EasyCoder PD41 Printer User’s Guide 45

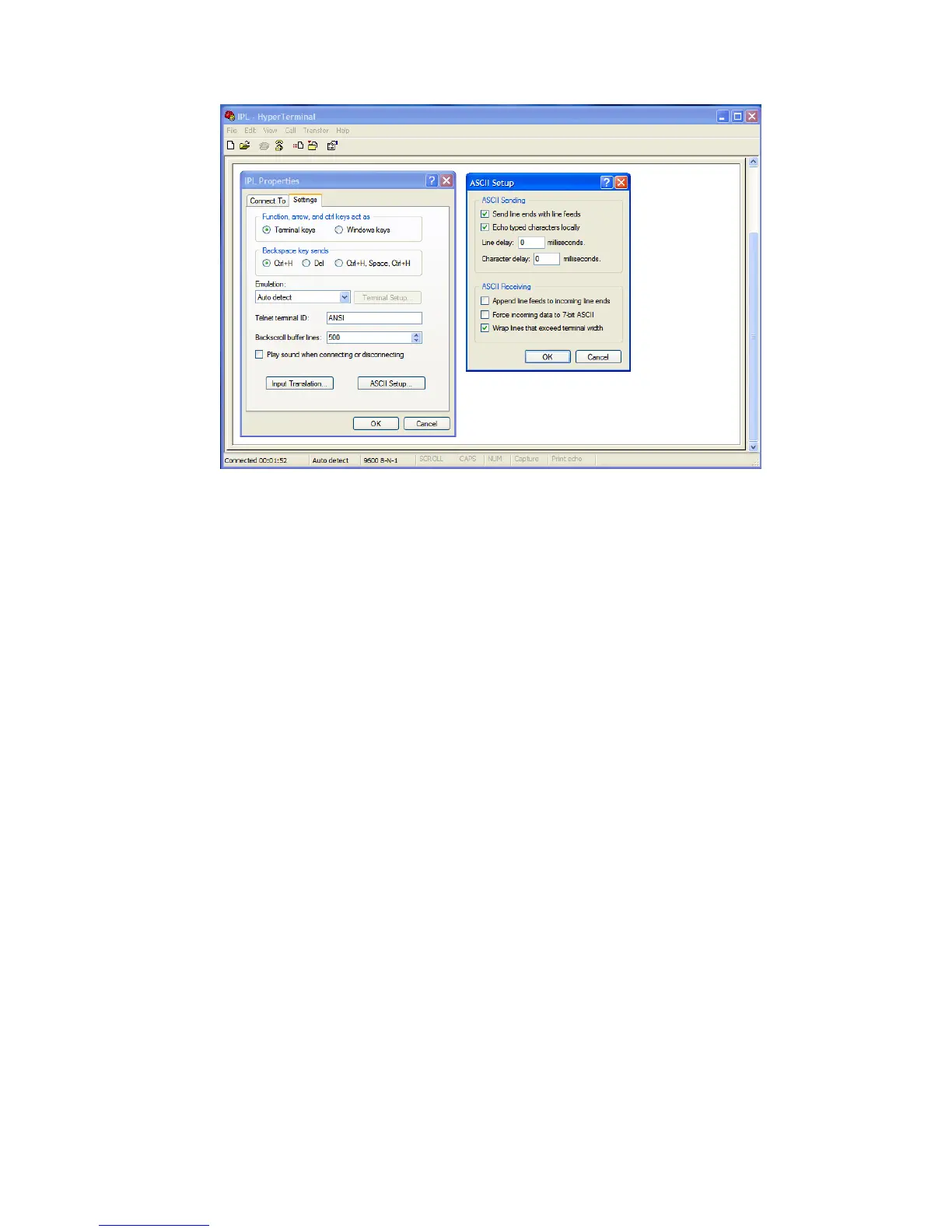

Hyperterminal settings (IPL only)
For more information on how to change setup parameters, see
the Fingerprint v10.X.X Programmer’s Reference Manual, or the
IPL Programmer’s Reference Manual.
Running Testmode
You can check certain settings, print a test label, or enter the
dump mode for troubleshooting purposes by using the printer
testmodes. Two testmodes are available, Testmode and Extended
Te st mo de .
Testmode
Normal testmode is used to select the media type, to print test
labels, and to enter dump mode. Testmode is entered by pressing
the Print button while switching the printer’s power on. This
starts the Testmode which will go through a sequence of actions;
these can be controlled by pressing the Print button at the cue of
different LED flash patterns. The sequence of steps in testmode is
shown in the tables below:

Intermec EasyCoder PD41 Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power requirements	100-240 VAC ±10%, 45-65 Hz
Media thickness	2.3 - 9.8 mm
Maximum label width	104 mm
Maximum label length	0.15 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	453 mm
Width	273 mm
Height	270 mm
Weight	13000 g
