INVT Goodrive350 IP55

Goodrive350 IP55 High-ingress Protection Series VFD Basic Operation Instructions
-117-
Function
code
Name
Description
Default
value
but one fault
P07.50
Ramps reference frequency
at last but one fault
0.00Hz–P00.03
0.00Hz
P07.51
Output voltage at last but
one fault
0–1200V
0V
P07.52
Output current at last but one
fault
0.0–6300.0A
0.0A
P07.53
Bus voltage at last but one
fault
0.0–2000.0V
0.0V
P07.54
Max. temperature at last but
one fault
-20.0–120.0°C
0.0°C
P07.55
Input terminal state at last
but one fault
0x0000–0xFFFF
0
P07.56
Output terminal state at last
but one fault
0x0000–0xFFFF
0
5.5.20 Tension control solutions
In many fields of industrial production, precise tension control is needed to maintain a constant
output tension of the drive equipment, in order to improve the quality of the products. In the
winding and unwinding of some industries such as paper processing, printing and dyeing,
packing, wire and cable manufacturing, textile, fiber, optic cable, leather, metal foil material
processing and so on, tension needs to keep constant.
The VFD controls the tension by regulating the motor output torque or speed. There are three
modes to control the tension: speed mode, open-loop torque mode and closed-loop torque
mode.

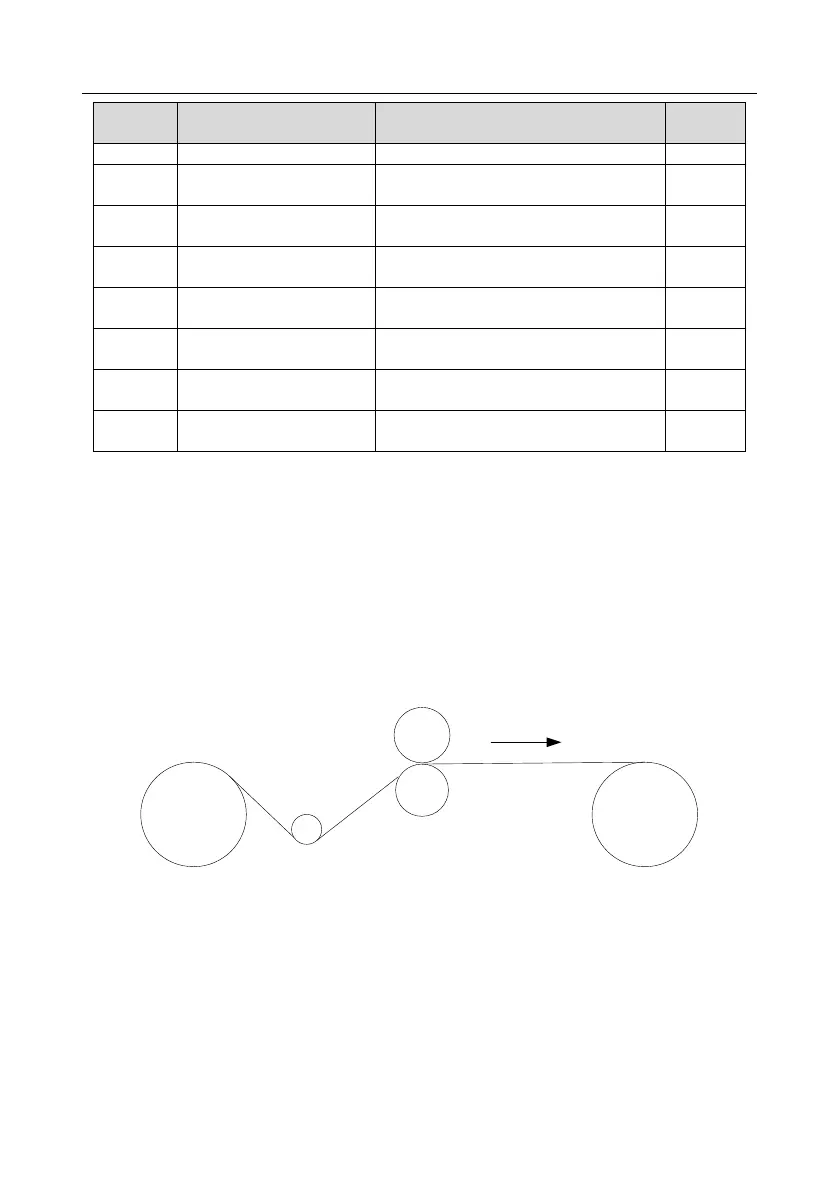

5.5.20.1 Typical tension control applications for winding/unwinding
Unwinding in speed mode
Traction
Winding in torque mode
V
Tension feedback
