5.5.6 Motor parameter
 Check the safety conditions surrounding the motor and load machineries before
autotuning as physical injury may occur due to sudden start of motor during
autotuning.
 Although the motor does not run during static autotuning, the motor is stilled
supplied with power, do not touch the motor during autotuning; otherwise, electric
shock may occur.
If the motor has been connected to load, do not carry out rotary autotuning; otherwise,
misact or damage may occur to the VFD. If rotary autotuning is carried out on a motor
which has been connected to load, wrong motor parameters and motor misacts may
occur. Disconnect the load to carry out autotuning if necessary.

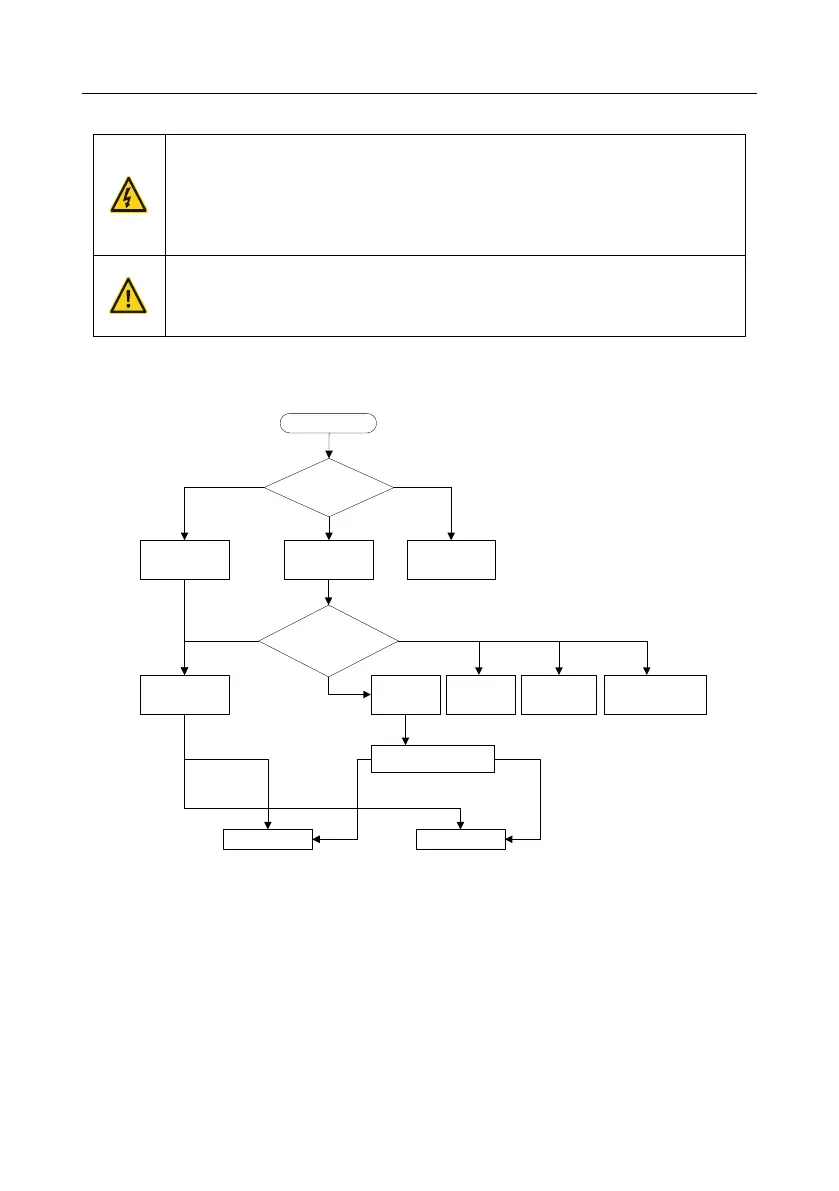

The GD350 IP55 series VFD can drive asynchronous motors and synchronous motors, and it
supports two sets of motor parameters, which can be switched over by multi-function digital
input terminals or communication modes.
Communication
(P00.01=2)
Terminal
(P00.01=1)
Keypad
(P00.01=0)
Modbus/
Modbus TCP
communication
PROFIBUS/
CANopen/
DeviceNet
communication
Start
Select running
command channel
(P00.01)
Switchover
channel for motor 1 and
motor 2
(P08.31)
Terminal function 35
Switch motor 1 to
motor 2
Communication set value
2009H
Motor 1 Motor 2
Invalid
Valid
BIT0–1=00
BIT0–1=01
P08.31 ones = 0
Ethernet
communication
P08.31 ones = 1
P08.31 ones = 2 P08.31ones = 3
EtherCAT/PROFINET/
EtherNet IP
communication
P08.31 ones = 4
The control performance of the VFD is based on accurate motor model, therefore, users need
to carry out motor parameter autotuning before running the motor for the first time (take motor
1 as an example)
