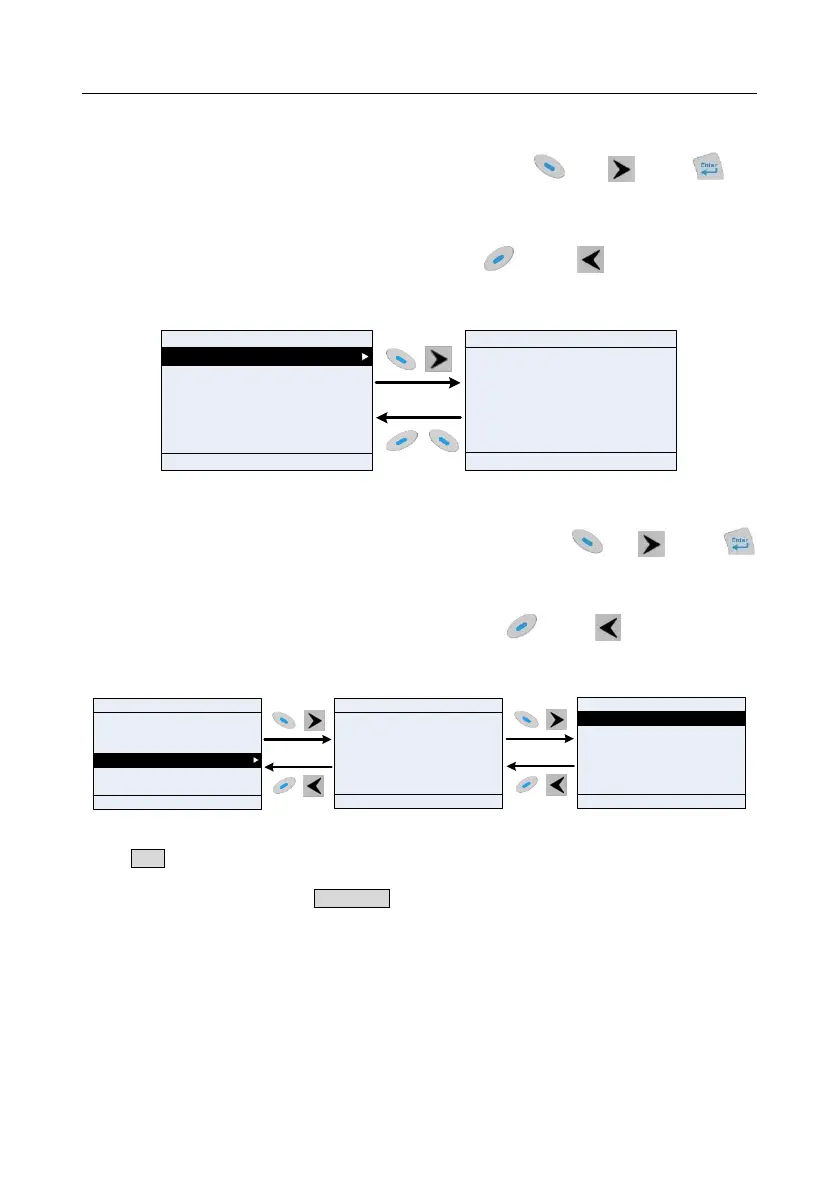

Goodrive350 IP55 High-ingress Protection Series VFD Basic Operation Instructions
-42-
5.4.7 Monitoring states
You can choose Menu > State monitoring > State monitoring parameter, enter a specific
function group and then a specific function code, and press key, key or key
to enter the state monitoring interface. After entering the state monitoring interface, the actual
parameter value will be displayed in real time; this value is the actually detected value which
cannot be modified.
In the state monitoring interface, you can press key or key to return to the
previous menu.
Figure 5-17 State monitoring interface
Set Freq Hz
50.00
Max : 630.00
Min : 0.0
GD350
16:02:35
Fwd
Local Ready
Default : 0.0
16:02:35
P17.00:Set Freq
P17.11:DC Bus Volt
P17.12:HDIB/A/S4/3/2/1
P17.13:RO2/RO1/HDO/Y1
P17.26:Current Oper Time
P17.15:Motor Trq Ref
Fwd Local Ready GD350
Back Add OK Back Home OK
5.4.8 Autotuning motor parameters
You can choose Menu > Motor parameter autotune and press key, key or
key to enter motor parameter autotuning interface. However, before entering the motor
parameter autotuning interface, you must set the motor nameplate parameters correctly. After
entering the interface, select a motor autotuning type to carry out motor parameter autotuning.
In motor parameter autotuning interface, you can press key or key to return to the
previous menu.
Figure 5-18 Selecting a parameter autotuning type
Complete para rotary autotune
Complete para static autotune
Partial para static autotune
GD350
16:02:35
Fwd
Local Ready
GD35016:02:35
Parameter groups
User defined parameters
State monitoring
Motor parameter autotune
Copy parameter/Restore default
System settings
Fwd Local Ready GD350
16:02:35
Ensure motor nameplate parameters are set
correctly.
Fwd
Local Ready
Complete para rotary autotune 2 (for AM)
Partial para static autotune 2 (for AM)
Back Home Sele Back Home OK Back Home OK
After selecting a motor autotuning type, enter motor parameter autotuning interface, and press
RUN key to start motor parameter autotuning. After autotuning is done, a message will pop up
indicating autotuning is succeeded, and then it will return to the main interface of stop. During
autotuning, you can press STOP/RST key to terminate autotuning; if any fault occur during
autotuning, the keypad will display a fault interface.
