Goodrive350 IP55 High-ingress Protection Series VFD Basic Operation Instructions
-43-

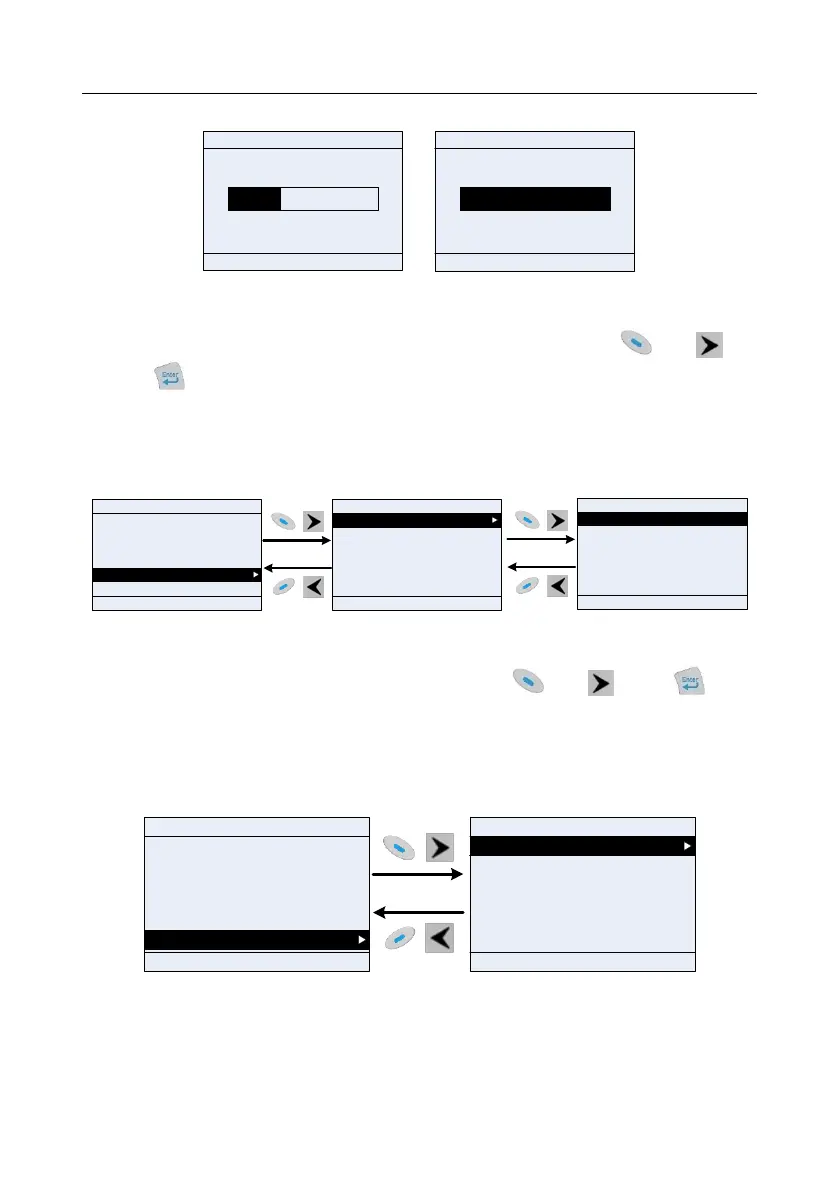

Figure 5-19 Parameter autotuning
Autotune steps:0
Autotuning parameters...
GD350
16:02:35
Forward
Local Run
Autotune steps:3
Parameters autotuned
GD350
16:02:35
Forward
Local Run
...
Back Home OK Back Home OK
5.4.9 Backing up parameters
You can choose Menu > Copy parameter/Restore default, and press key, key
or key to enter the function parameter backup interface and function parameter
restoration interface to upload/download VFD parameters, or restore VFD parameters to
default values. The keypad has three different storage areas for parameter backup, and each
storage area can save the parameters of one VFD, which means the keyapd can save
parameters of three VFDs in total.
Figure 5-20 Parameter backup
Upload local func para to keypad
Download all func para from keypad
Download NonMotor func para from keypad
Download motor func para from keypad
GD350
16:02:35
Fwd
Local Ready
GD350
16:02:35
Parameter groups
User defined parameters
State monitoring
Motor parameter autotune
Copy parameter/Restore default
System settings
Fwd
Local Ready
GD350
16:02:35
MemArea 1: BACKUP01
MemArea2: BACKUP02
MemArea3: BACKUP03
Restore default (test mode)
Fwd
Local Ready
Restore default (incl motor para)
Restore default (excl motor para)
Back Home Sele Back Home OKBack Home Sele
5.4.10 System settings
You can choose Menu > System settings, and press key, key or key to
enter system setting interface to set the keypad language, time/date, backlight brightness,
backlight time and restore parameters.
Note: Clock battery is not included, and the keypad time/date needs to be reset after power off.
If time-keeping after power off is needed, you should purchase the clock batteries separately.
Figure 5-21 System setting diagram
16:02:35
Parameter groups
User defined parameters
State monitoring
Motor parameter autotune
Copy parameter/Restore default
System settings
Fwd
Local Ready
Back Home Sele
GD350
16:02:35
Language
Time/date
Backlight brightness
Backlight time
Fwd Local Ready
Enable power-on setup wizard
Power-on setup wizard
Back Home Sele
GD350
5.4.11 Power-on setup wizard
The keypad supports the power-on setup wizard function, mainly for the first power-on
situation, instructing you to enter the setting menu, and gradually implementing basic functions
such as basic parameter setting, direction judgment, mode setting and autotuning.
