Goodrive350 IP55 High-ingress Protection Series VFD Basic Operation Instructions
-29-
5 Basic Operation Instructions
5.1 What this chapter contains
This chapter tells users how to use the VFD keypad and the commissioning procedures for
common functions of the VFD.
5.2 Keypad introduction
LCD keypad is included in the standard configuration of GD350 IP55 series VFDs. Users can
control the VFD start/stop, read state data and set parameters via keypad.

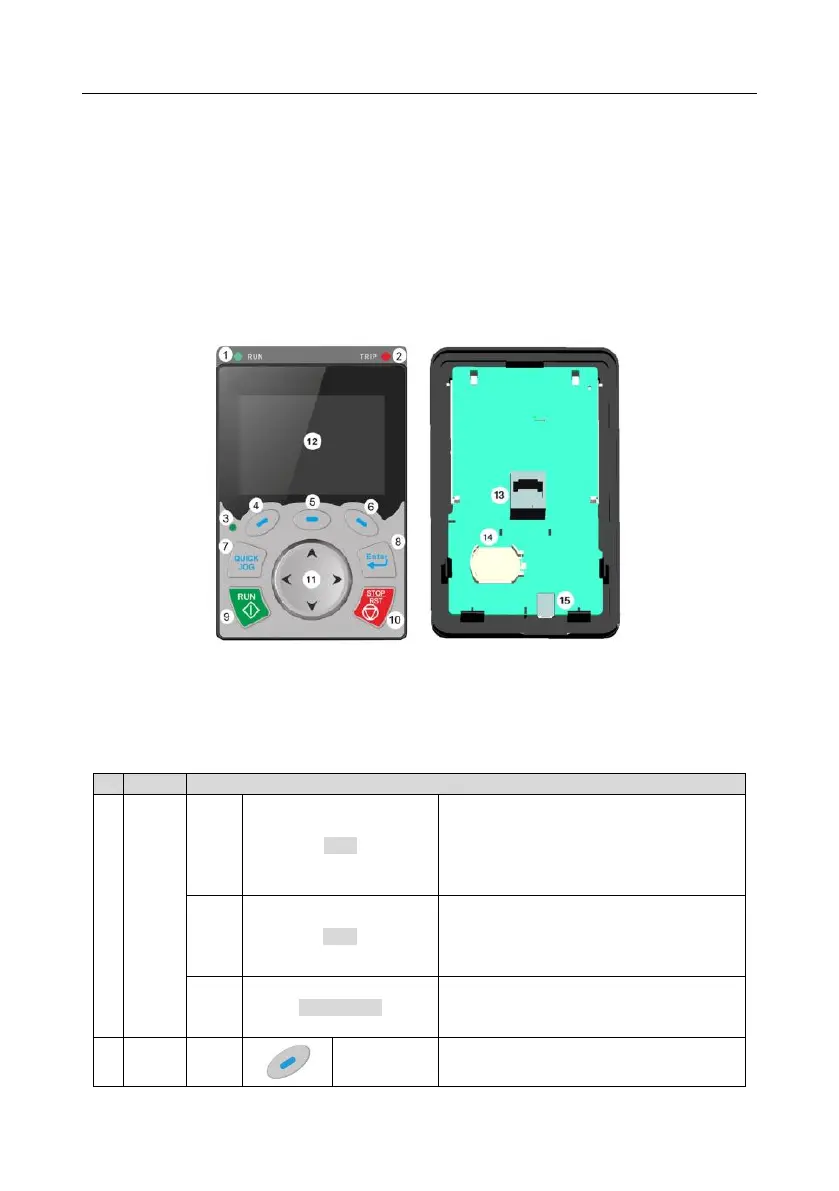

Figure 5-1 Keypad diagram
Note:
1. LCD keypad is armed with real-time clock, which can run properly after power off when
installed with batteries. The clock battery (type: CR2032) should be purchased by the user
separately.
2. LCD keypad support parameter-copy.
No.
Name
Instruction
1
State
Indicator
(1)
RUN
Running indicator;
LED off – the VFD is stopped;
LED blinking – the VFD is in parameter
autotune
LED on – the VFD is running
2)
TRIP
Fault indicator;
LED on – in fault state
LED off – in normal state
LED blinking – in pre-alarm state
(3)
QUICK/JOG
Short-cut key indicator, which displays
different state under different functions, see
definition of QUICK/JOG key for details
2
Button
area
(4)
Function key
The function of function key varies with the
menu;
