INVT Goodrive350 IP55 User Manual

Goodrive350 IP55 High-ingress Protection Series VFD Basic Operation Instructions
-30-

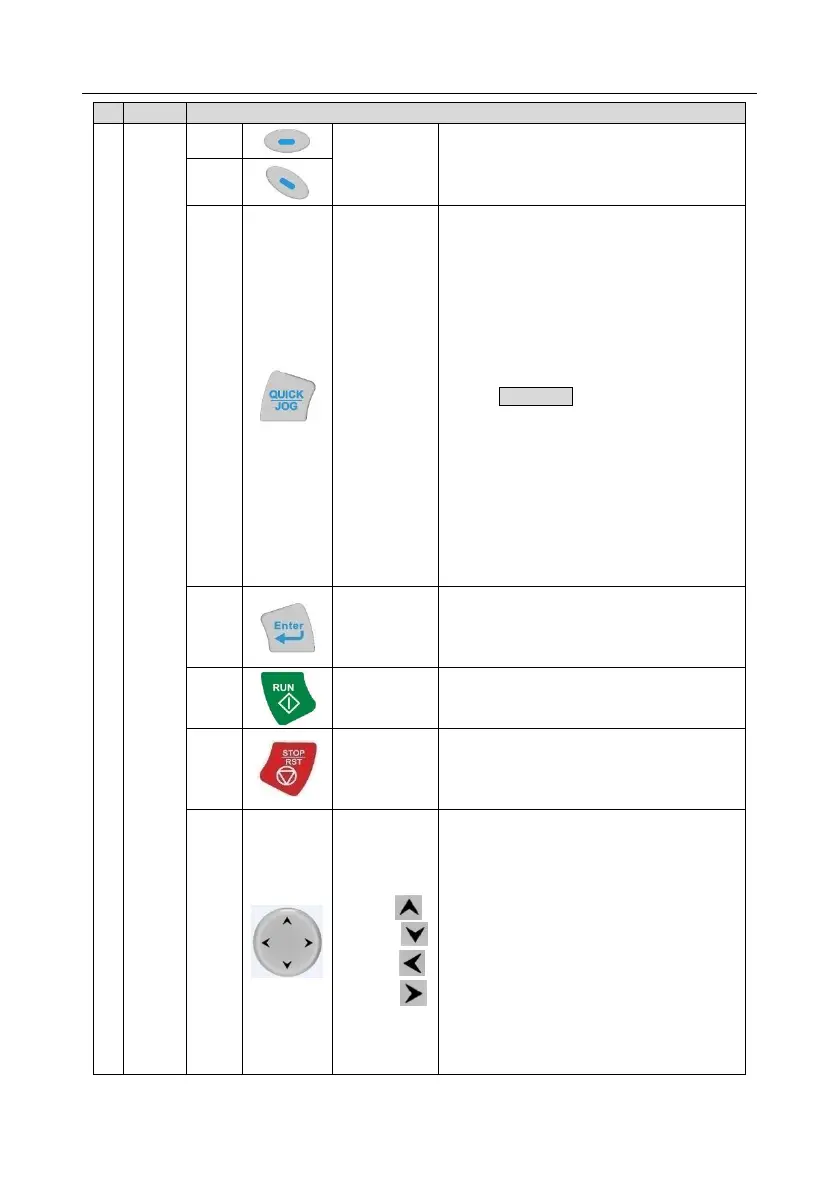

No.
Name
Instruction
(5)
The function of function key is displayed in
the footer
(6)
(7)
Short-cut key
Re-definable. It is defined as JOG function by
default, namely jogging. The function of
short-cut key can be set by the ones of
P07.02, as shown below.
0: No function ;
1: Jogging (linkage indicator (3); logic : NO);
2: Reserved;
3: FWD/REV switch-over (linkage indicator
(3); logic: NC) ;
4: Clear UP/DOWN setting (linkage indicator
(3) logic: NC) ;
5: Coast to stop (linkage indicator (3); logic:
NC) ;
6: Switching running command reference
mode in order (linkage indicator (3); logic:
NC) ;
7: Reserved;
Note: After restoring to default values, the
default function of short-cut key (7) is 1.
(8)
Confirmation
key
The function of confirmation key varies with
menus, eg confirming parameter setup,
confirming parameter selection, entering the
next menu, etc.
(9)
Running key
Under keypad operation mode, the running
key is used for running operation or
autotuning operation.
(10)
Stop/
Reset key
During running state, press the Stop/Reset
key can stop running or autotuning; this key is
limited by P07.04. During fault alarm state, all
the control modes can be reset by this key.
(11)
Direction key
UP:
DOWN:
LEFT:
RIGHT:
UP: The function of UP key varies with
interfaces, eg shifting up the displayed item,
shifting up the selected item, changing digits,
etc;
DOWN: The function of DOWN key varies
with interfaces, eg shifting down the
displayed item, shifting down the selected
item, changing digits, etc;
LEFT: The function of LEFT key varies with
interfaces, eg switch over the monitoring
interface, eg shifting the cursor leftward,
exiting current menu and returning to
previous menu, etc;
RIGHT: The function of RIGHT key varies
