INVT Goodrive350 IP55 User Manual

Goodrive350 IP55 High-ingress Protection Series VFD Basic Operation Instructions
-34-
Figure 5-7 Fault alarm display state
GD350
16:02:35
Fwd
Local
Fault
Home
OK
Fault code：
19：Current detection fault (ItE)
Present fault type:
19
5.4 Operating the VFD through the keypad
Various operations can be performed on the VFD through the keypad, including
entering/exiting menu, parameter selection, list modification and parameter addition.
5.4.1 Enter/exit menu
The keypad displays three main menus at the home interface by default: Parameter, About,
and Menu. The following figure shows how to enter the Parameter main menu and how to
operate under this main menu.

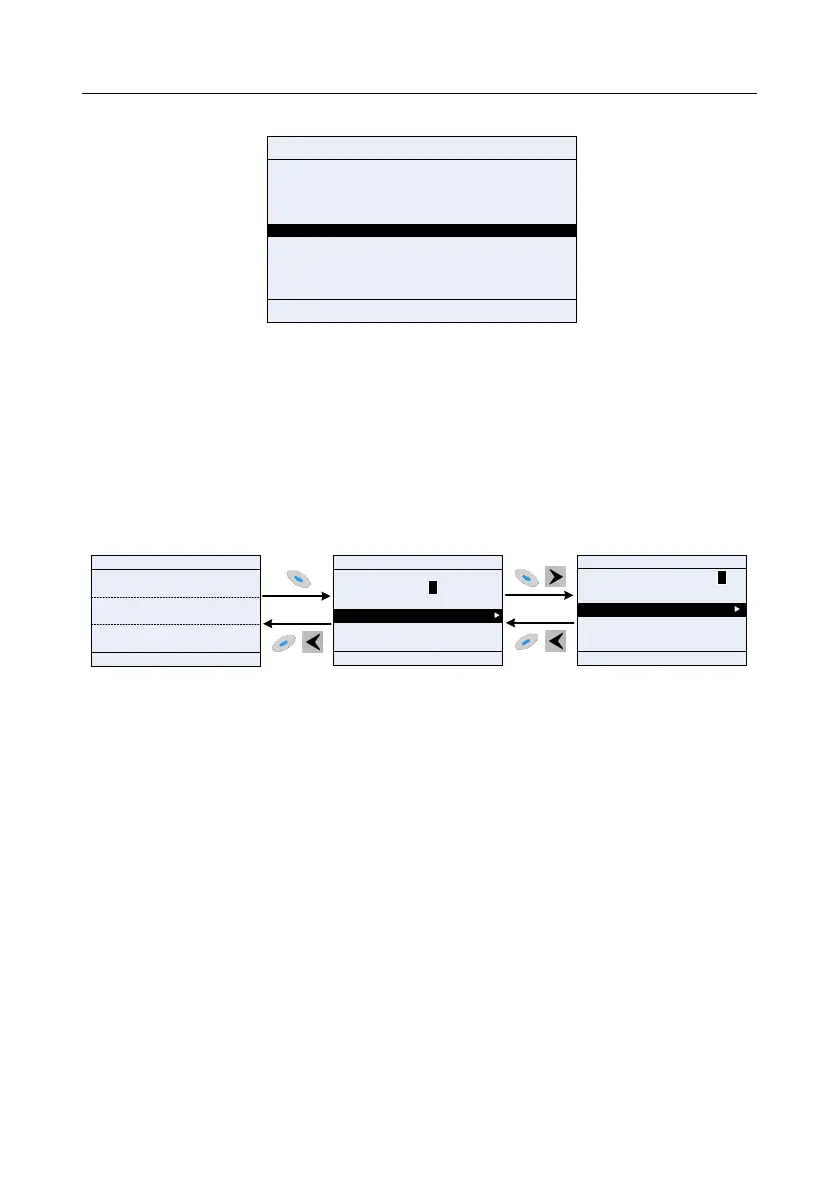

Figure 5-8 Enter/exit menu diagram 1
Set Freq
P17.00 Hz
50.00
DC Bus Volt
P17.11 V
540.0
0x0000
AboutParameter
Menu
HDIB/A/S4/3/2/1
P17.12
P00.00: Speed Ctrl Run Cmd
Function code:
Function group:
P00: Basic Function
P00
P00.00
16:02:35 Fwd Local Ready GD350
Back Home Sele
16:02:35 Fwd Local Ready GD350 16:02:35 Fwd Local Ready GD350
Back Home Sele
