Goodrive350 IP55 High-ingress Protection Series VFD Installation Guide
-17-
4.2.5 Multiple-unit installation

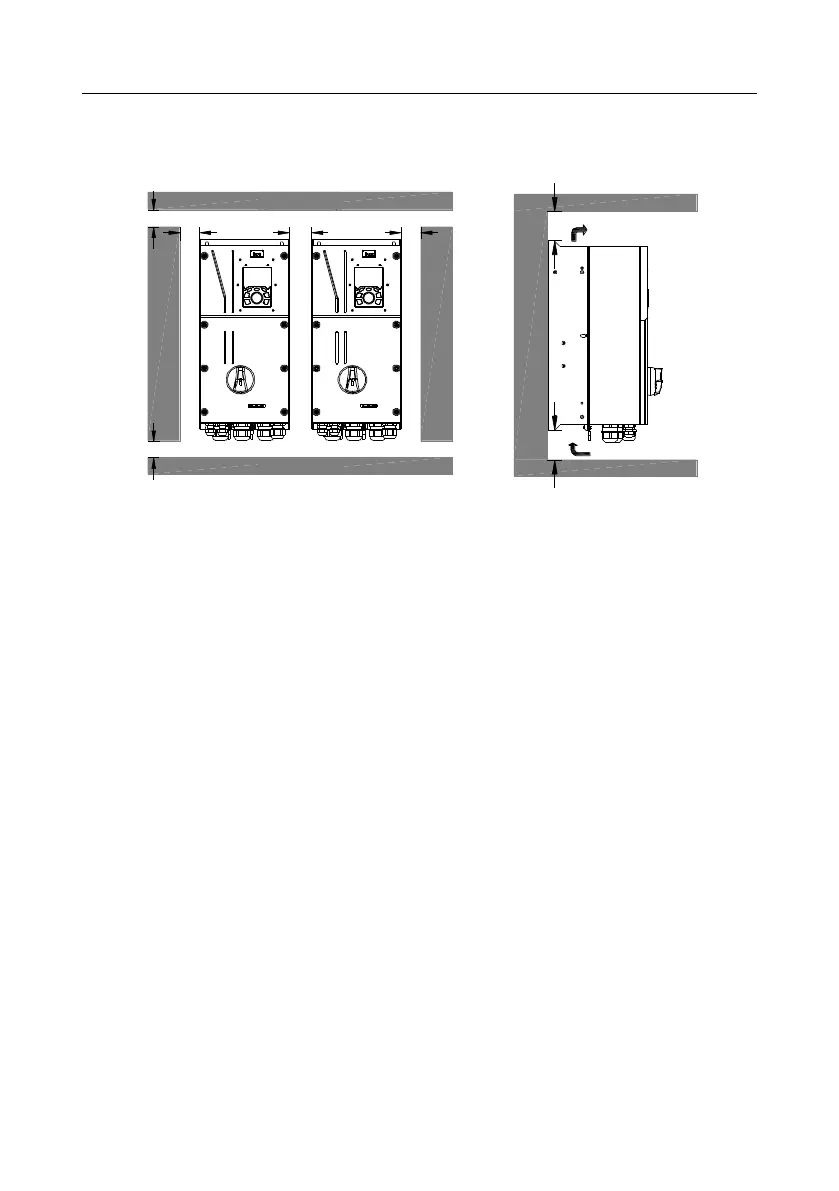

Figure 4-4 Parallel installation
Note:
1. When users install VFDs in different sizes, align the top of each VFD before installation for
the convenience of future maintenance.
2. The min dimension of B and C is 100mm, and the dimention of D can be 0, that is
zero-clearance parallel installation is supported.
