Goodrive350 IP55 High-ingress Protection Series VFD Product Overview
-13-
Note:
1. There is no P type mechine for 110kW power stage.
2. The input current of 004G/5R5P–055G/075P VFDs are measured in cases where the input
voltage is 380V without additional reactors;
3. The rated output current is the output current when the output voltage is 380V;
4. Within allowable input voltage range, the output current/power cannot exceed rated output
current/power.

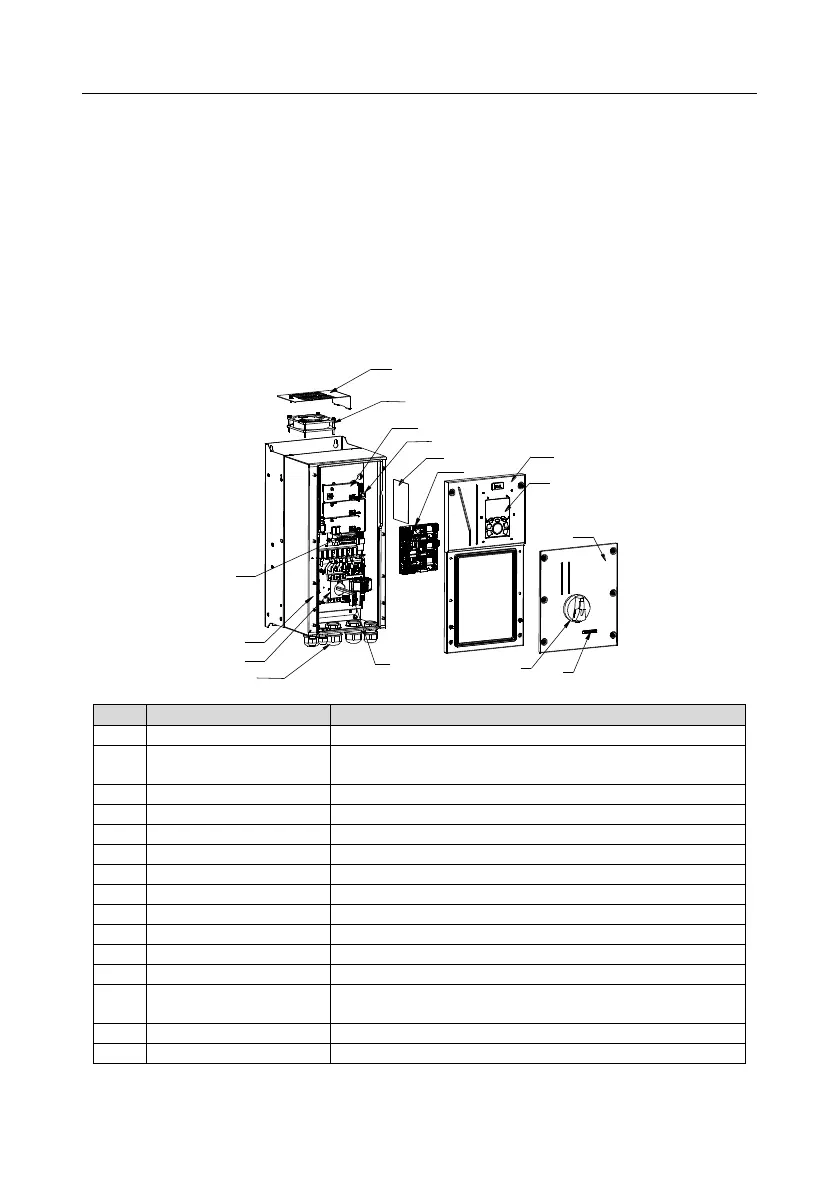

3.7 Structure diagram
The VFD layout is shown in the figure below (take a 015G/018P VFD as an example).
Figure 3-5 Structure diagram
16
13
15
3
12
9
10
14
6
5
7
8
4
3
2
1
No.
Name
Instruction
1
Upper cover
Protect internal components and parts
2
Keypad
For details, see section 5.4 "Operating the VFD through the
keypad"
3
Lower cover
Protect internal components and parts
4
Expansion card
Optional part. For details, see Appendix A "Expansion cards"
5
Baffle of control board
Protect the control board and install expansion card
6
Cooling fan
For details, see 8 "Maintenance"
7
Keypad interface
Connect the keypad
8
Nameplate
For details, see 3 "Product Overview"
9
Main circuit terminal
For details, see 4 "Installation Guide"
10
Control terminals
For details, see 4 "Installation Guide"
11
Waterproof connector
Lock and secure connection cables
12
POWER indicator
Power indicator
13
Label of GD350 IP55
product series
For details, see section 3.5 "Product model" of this chapter
14
Baffle of fan
Protect the fan.
15
Switch handle
Control the main circuit power.
