Goodrive350 IP55 High-ingress Protection Series VFD Expansion cards
-315-
LED2
(Bus state indicator)
The connection to the network cable between
the PROFINET controller is OK, but the
communication is not established.
Communication with the PROFINET controller
has been established
LED3
(System fault indicator)
PROFINET diagnosis exists
LED4
(Slave ready indicator)
TPS-1 protocol stack has started
TPS-1 waits for MCU initialization
TPS-1 protocol stack does not start
LED5
(Maintenance state
indicator)
Manufacturer-specific–depending on the
characteristics of the device
LED6/7
(Network port state
indicator)
PROFINET communication card and PC/PLC
have been connected via a network cable
PROFINET communication card and PC/PLC
have not been connected yet
LED8/9
(Network port
communication indicator)
PROFINET communication card and PC/PLC
are communicating
PROFINET communication card and PC/PLC
are not yet communicating

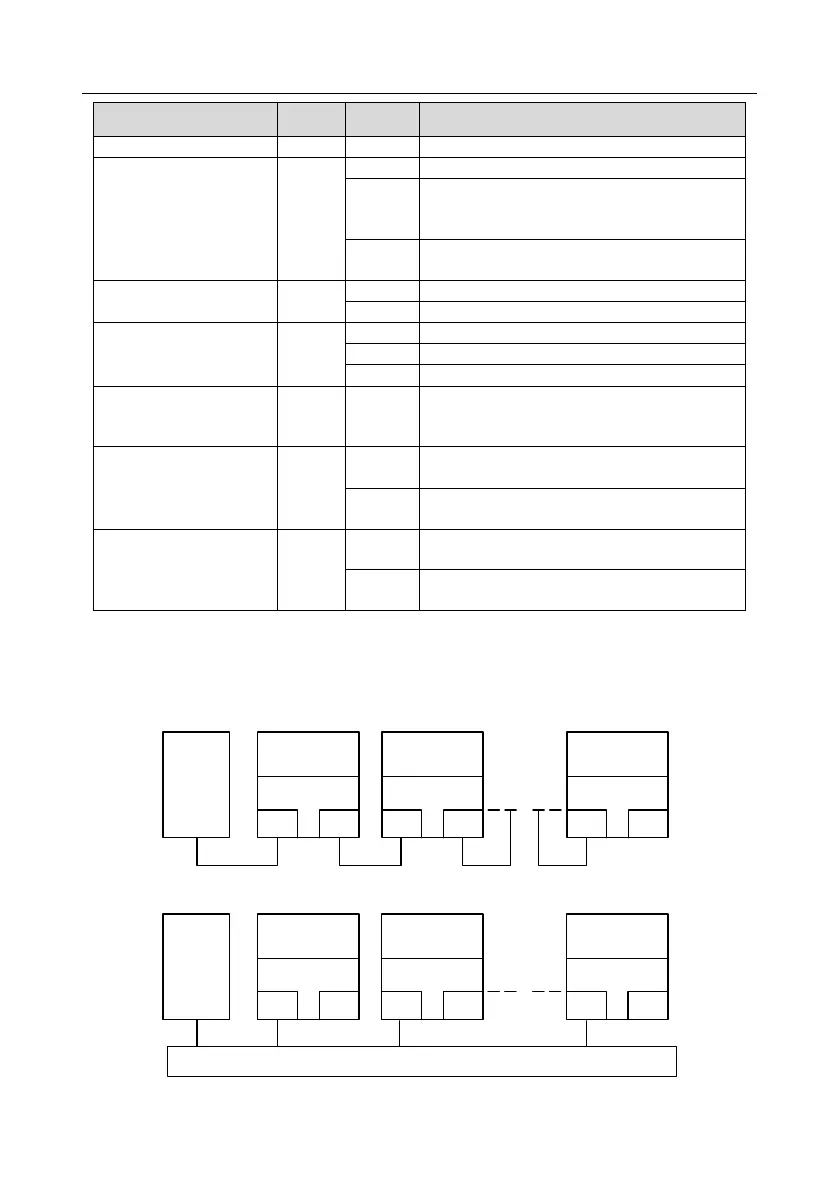

Electrical connection
The PROFINET communication card adopts a standard RJ45 interface and can adopt the
linear network topology or star network topology. The electrical connection in linear network
topology mode is shown in the following.
Master
device
Slave device 2
RJ45
RJ45
Slave device 1
RJ45
RJ45
Slave device n
RJ45
RJ45
The star network topology electrical connection diagram is shown in the following:
Master
device
Slave device 2
RJ45
RJ45
Slave device 1
RJ45
RJ45
Slave device n
RJ45
RJ45
Switch
