INVT Goodrive350 IP55 User Manual

Goodrive350 IP55 High-ingress Protection Series VFD Dimension drawings
-342-

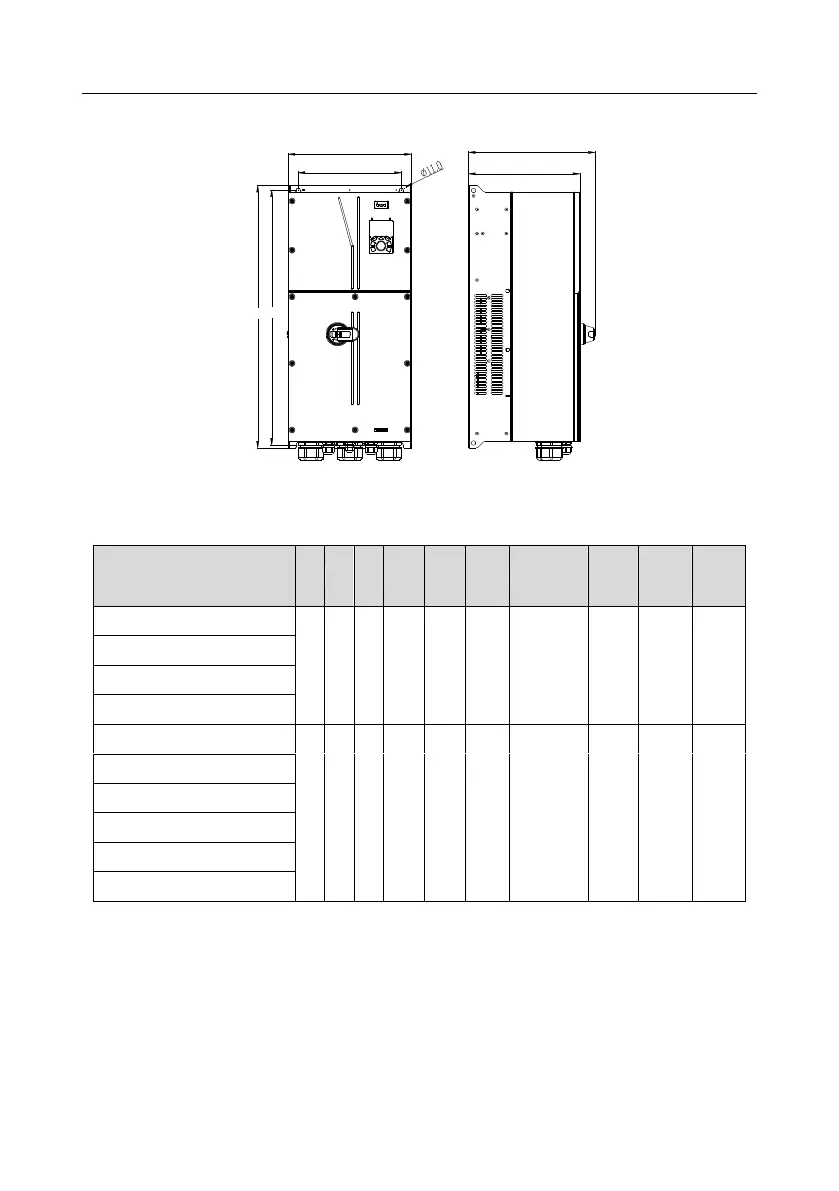

Figure C-3 Wall-mounting diagram of VFDs of 045G/055P–110G
H1
H2
W1
W2
D2
D1
Table C-2 Wall-mounting dimensions of VFDs (unit: mm)
VFD model
W1
W2
H1
H2
D1
D2
Installation
hole
diameter
Fixing
screw
Net
weight
(kg)
Gross
weight
(kg)
GD350-045G/055P-45-AS
338
283
800
792
336.7
289.7
Ø9
M8
48
55
GD350-045G/055P-45-AS-B
GD350-055G/075P-45-AS
GD350-055G/075P-45-AS-B
GD350-075G/090P-45-AS
370
310
788
765.5
380
335
Ø11
M10
64
82.8
GD350-075G/090P-45-AS-B
GD350-090G/110P-45-AS
GD350-090G/110P-45-AS-B
GD350-110G-45-AS
GD350-110G-45-AS-B
