The following table describes how ports of different link types process transmitted and received data.
Port
Method to process received data
Method to process transmitted data
Tagged data Untagged data
Access
Forward the data to
other ports of the VLAN
corresponding to the
VID in the data.
Forward the data to the
other ports of the VLAN
corresponding to the
PVID of the port that
receives the data.
Transmit data after removing tags
from the data.
Trunk
If the VID and PVID of a port are the
same, transmit data after removing
tags from the data.
If the VID and PVID of a port are
different, transmit data without
removing tags from the data.
8.8.3 Example
Networking requirement
A hotel has the following WiFi network coverage requirements:
− Guests are allowed to connect to VLAN 2 and only able to access the internet.
− Employees are allowed to connect to VLAN 3 and only able to access the LAN.
Assume that the SSID of the WiFi network for guests is internet and the SSID of the WiFi network for
employees is oa.

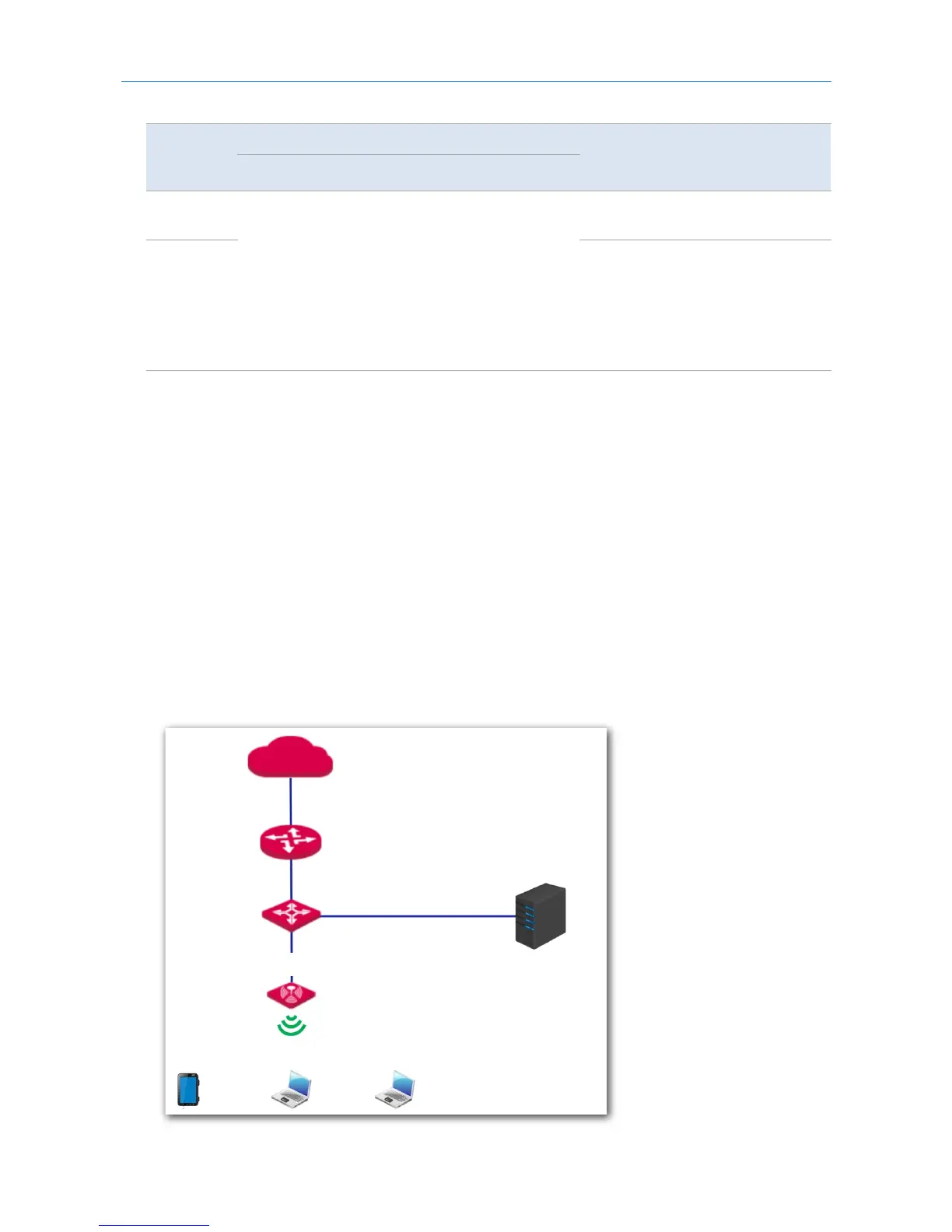

Network topology
