IPETRONIK PlugIn X V02.14.00
Sx-STG supports a real adjustment by hardware. This provides the user a full measurement
range. (refer to Adjustable differential voltages for more information)
Offset adjust reports error warning (Sx-STG Lemo 2B)
Executing an offset adjust for one or several channels while not all active inputs are connected
to a sensor will lead to an adjustment error.
Because of this incorrect adjustment procedure a potential offset will not be aligned and no
adjustment values will be stored.

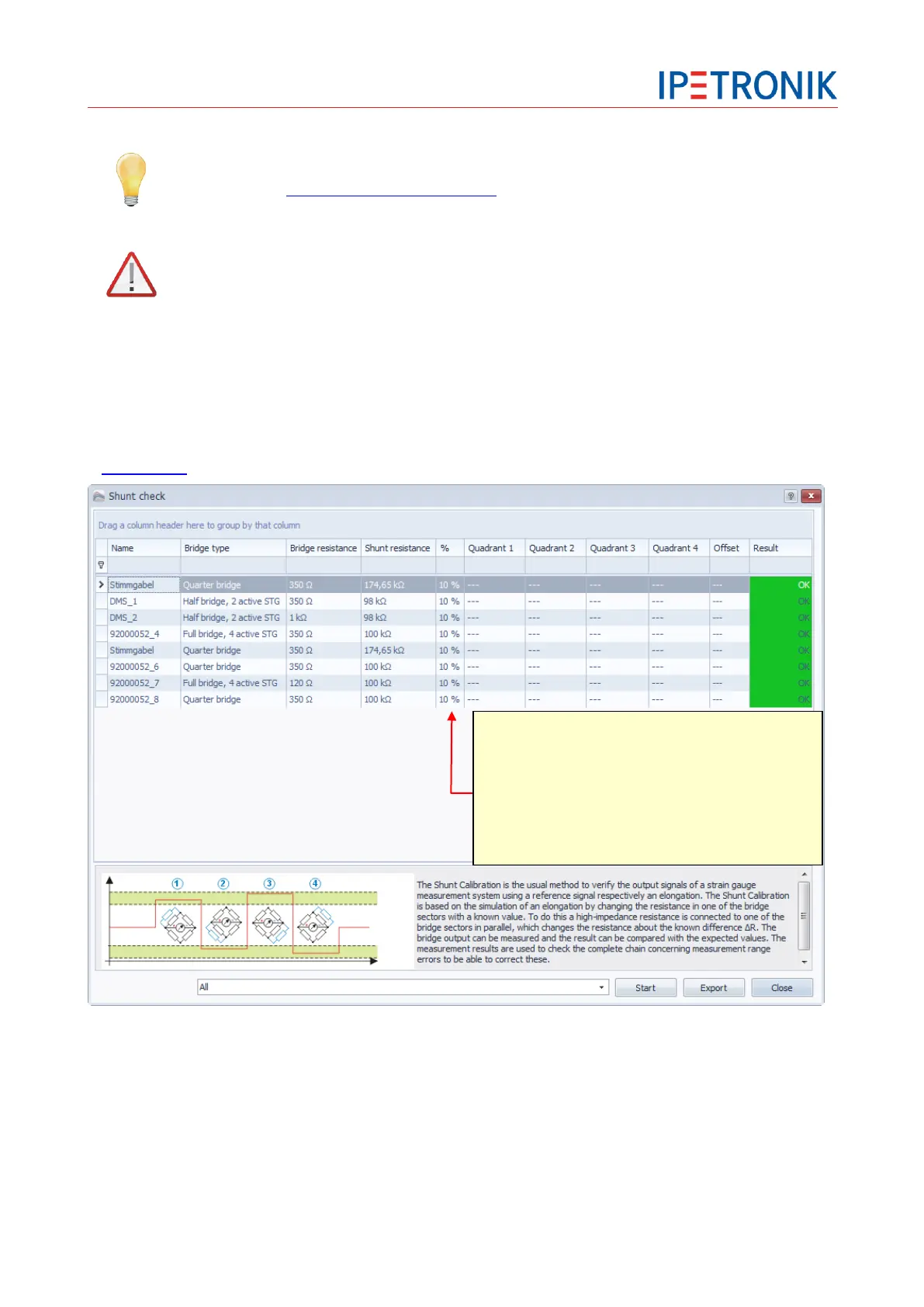

Shunt Check
The Shunt check feature verifies the correct operation of a strain gage sensor. Refer to Sx-STG > STG mode
> Shunt check for more information.
The result OK identifies a correct function of
the bridge sensor, i.e. bridge voltages lay
within the user defined tolerance.
The percentage of the tolerance releates to the
calculated value based on the current settings.
Refer to the sensor data sheet for the bridge
resistance and the required shunt resistance.
