Chapter 3 Adjustment Mode
•Adjustment is OK if the roller revolves smoothly
with the film arm pushed into the farthest back
(until it hits the stopper).
Roller
Film arm

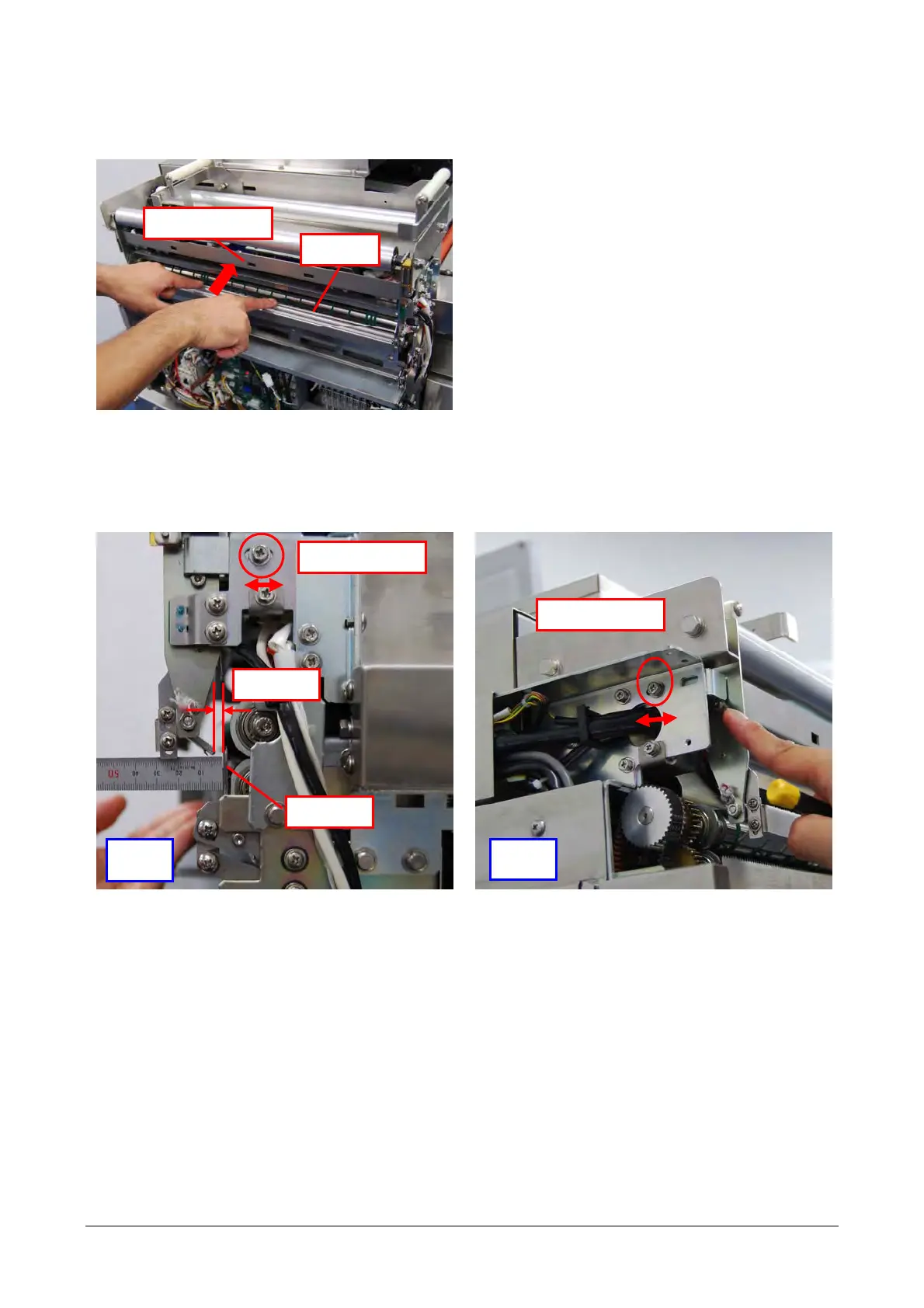

[5] Adjusting outside stopper position
1） Lift the cutter and adjust the outside stopper’s
position so that the gap between the tip of the
film arm and the cutter is 4 – 5 mm, and then, fix
the stopper.
2） In a similar way, adjust the stopper in the back
to have the gap of 4 – 5 mm.
NOTE:
In mounting the left lateral cover, pay attention fo
the cover not to hit the film holder.
Outside stopper
4 - 5mm
Cutter
Outside stopper
Back
side
Near
side
3-42
