PAMSPAN501x G.SHDSL.bis EFM Gateway
-95

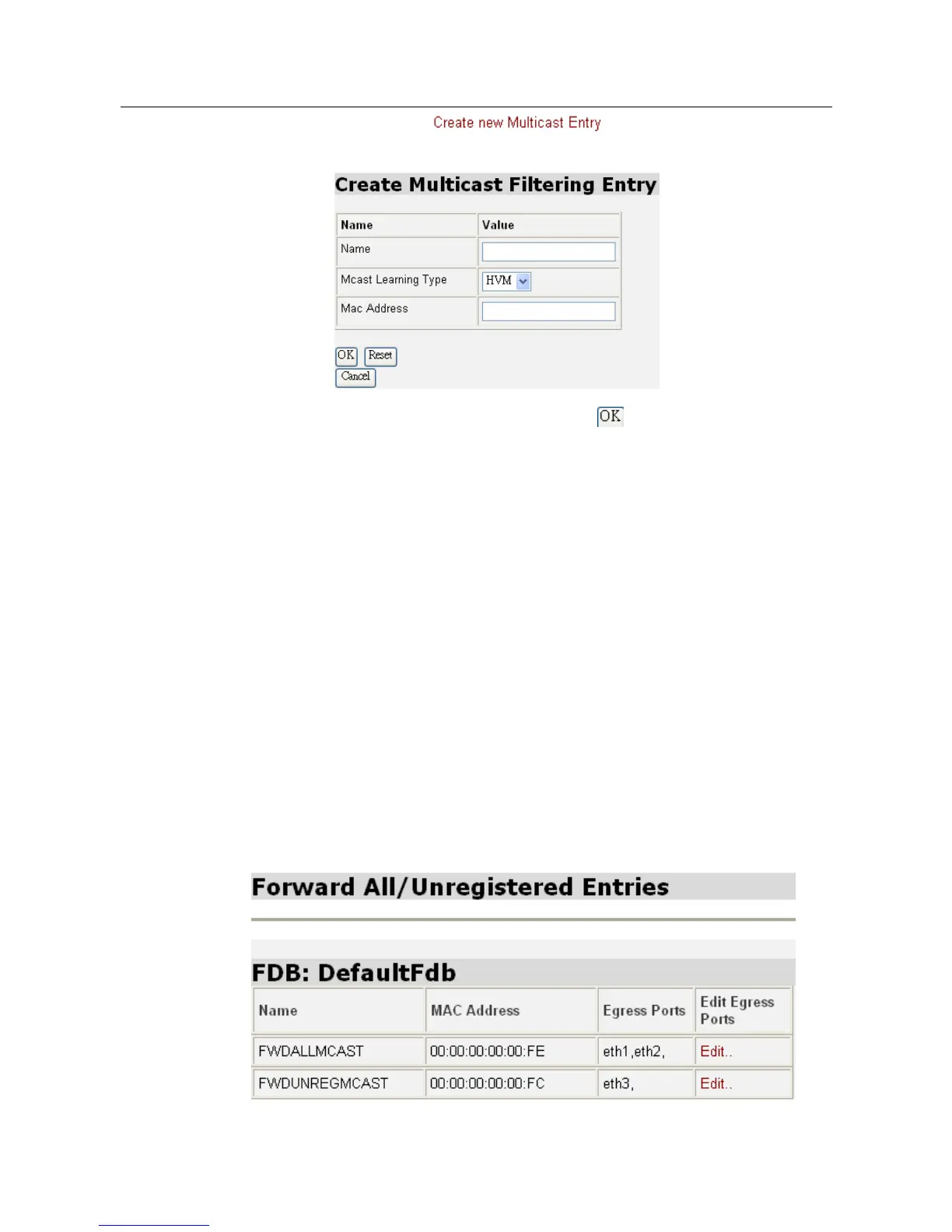

To add a new entry, click and the following window will
be displayed.
Enter the appropriate data into the field and click to create a new entry.
Naming the entry to correspond with the MAC Address will be helpful for the
convenience of future search. HVM in the Mcast Learning Type section means that
the created entry can be shared within the VLAN.
3.2.4.4.6 Forward All/Unregistered Configuration
To configure Forward ALL/Unregistered Entries, click Forward ALL/Unregistered
Entries under Bridge Config and the following window will be displayed as shown
below. This option allows users to assign the Egress Ports that the system forward
to. FWDALLMCAST means forwarding all Multicast entries. FWDUNREGMCAST
means forwarding all unregistered Multicast entries. As the below image shown,
FWDALLMCAST under FDB: DefaultFdb has been assigned to eth1and eth2. All
the Multicast entries will then be passed to eth1 and eth2. FWDUNREGMCAST
has been assigned to eth3, and then all the unregistered entries will be passed to
eth3.
