PAMSPAN501x G.SHDSL.bis EFM Gateway
7
2 Hardware Setup and Startup
2.1 Front Panel LED and Rear Panel description

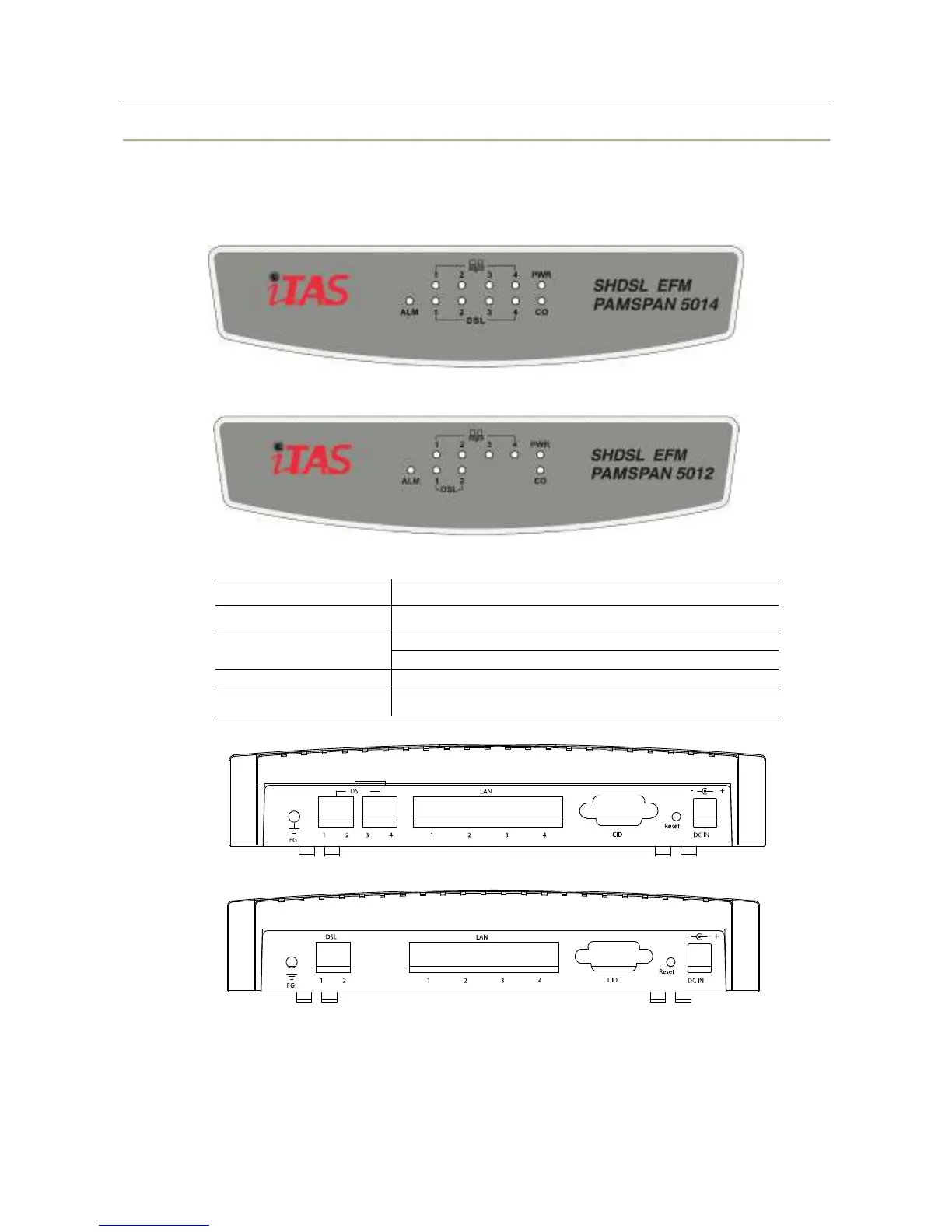

Following pictures are the front panel of 4-wire and 8-wire PAMSPAN501x respectively.
Figure 2-1 8-wire PAMSPAN501x Front Panel LED
Figure 2-2 4-wire PAMSPAN501x Front Panel LED
1. PWR
Power Indicator
2. DSL
DSL loop
On--- CO
3. CO
Off--- CPE
4. ALM
Alarm for error
5. LAN
On---Ethernet Link connected
Figure 2-3 8-wire PAMSPAN501x rear view
Figure 2-4 4-wire PAMSPAN501x rear view
