4. Set the rear door frame pin into the hole on top of the
body side, just behind the rear door opening.
5. Carefully position the top of the door frame onto the rear
belt
rail and the rear of the front door frame, making sure
the rubber seals lay flat. Ensure the seals are installed
correctly to avoid water leaks.

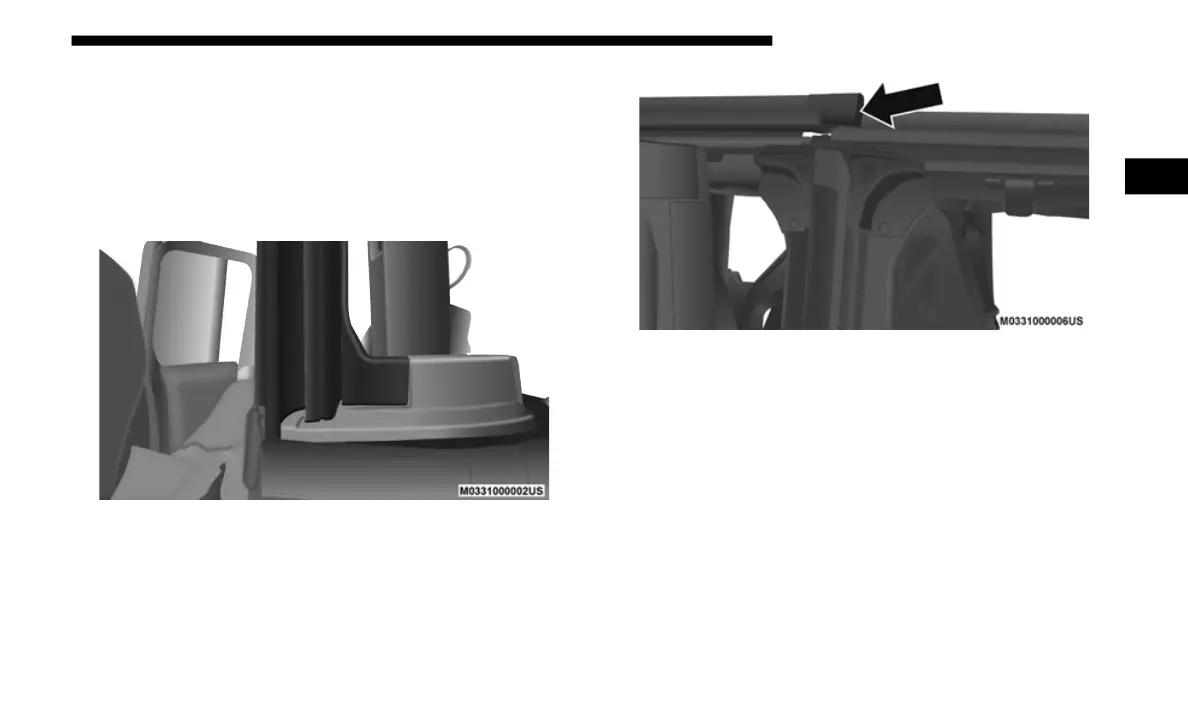

Position Of Frame Above Belt Rail
Position Of Rear Frame On Front Frame
6. Insert the fasteners from underneath. Tighten with the
#T40 T
orx head driver until they are snug, being careful
not t
o cross-thread the fasteners or overtighten. Refer to
the previous table for the appropriate torque specifica
-
tions for the door frame fasteners.
