108 GETTING TO KNOW YOUR VEHICLE
Door Frame Installation
NOTE:
The door frames (if equipped with a soft top) can be installed
when t
he doors are attached or removed.
1. Install the front door frame first.
2. En
sure the windshield is in the “up” position. Carefully
plac
e the front door frame in the rubber seal at the top of
the windshield, and line up the holes for the Torx head
fasteners (two for each door).

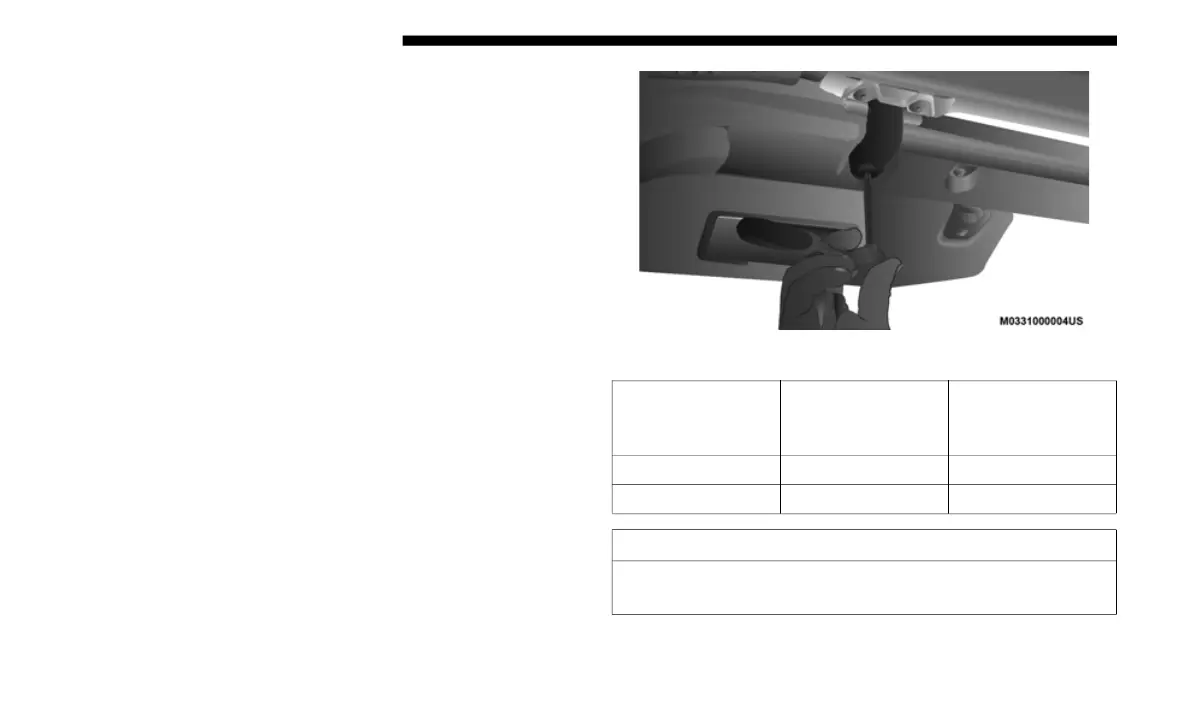

3. Swing the frame bracket around the side of the door
fram
e, and insert the fasteners from underneath. Tighten
with the #T40
Torx head driver until they are snug, being
caref
ul not to cross-thread the fasteners or overtighten.
Refer to the following table for the appropriate torque
specifications for the door frame fasteners.
Tighten Fasteners
Torque
Speci
fication For
Torx Fasteners
Maximum Minimum
8.8 in-lbs 11.0 in-lbs 6.6 in-lbs
12 N·m 15 N·m 5 N·m
CAUTION!
Do not overtighten Torx fasteners. You can strip the
f
aste
ners if they are overtightened.
