114 GETTING TO KNOW YOUR VEHICLE
2. While keeping the rear window level, slide it outward in
either direction until it is completely separate from its
retainer. Do not pull downward while removing the
rear window. Damage to the retainer could result. Store
the rear window in the soft top rear window storage bag.
Refer to “Soft Top Rear Window Storage Bag” in this
section for further information.

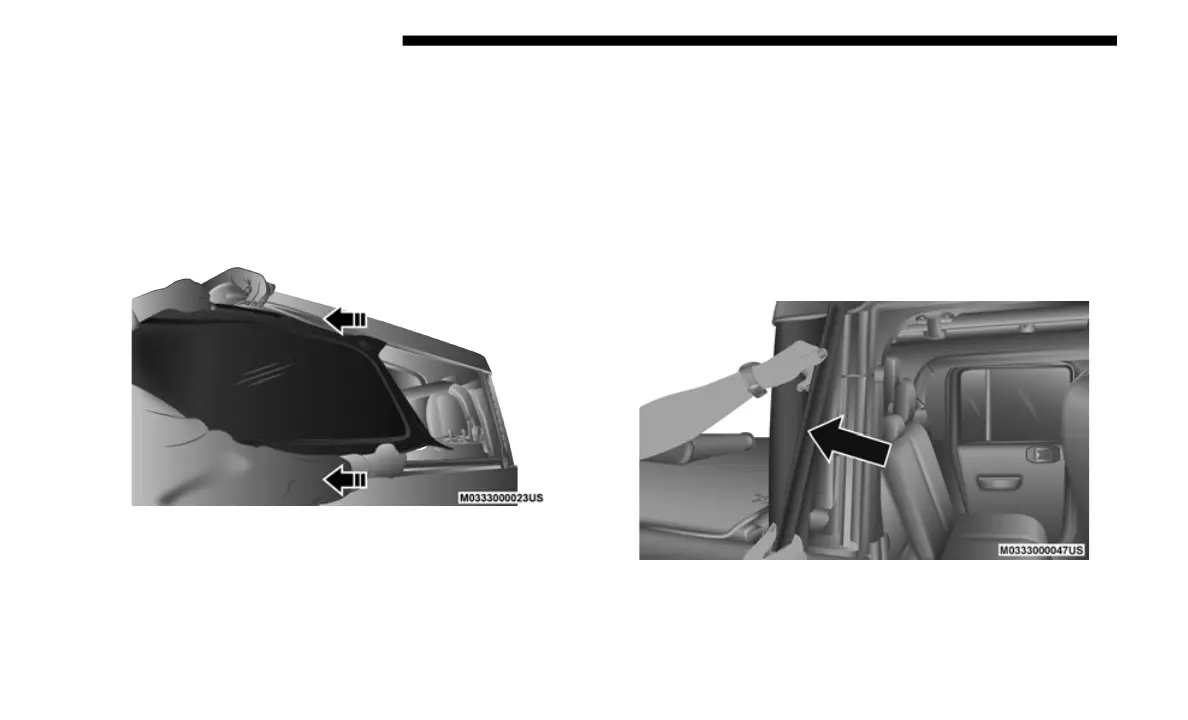

Remove Rear Window
Remove The Right And Left Quarter Panel Cover Assem-
blies:
1. Starting with either side, start to disengage the quarter
pane
l cover assembly from the bottom by pulling the
fabric at the bottom upward.
2. With two hands, grasp the front of the quarter panel
cove
r assembly and pull outward to disengage it from its
retainer on the door frame.
Step Two
