344 STARTING AND OPERATING
Fast Tone/Flashing Arc Continuous Tone/Flashing Arc

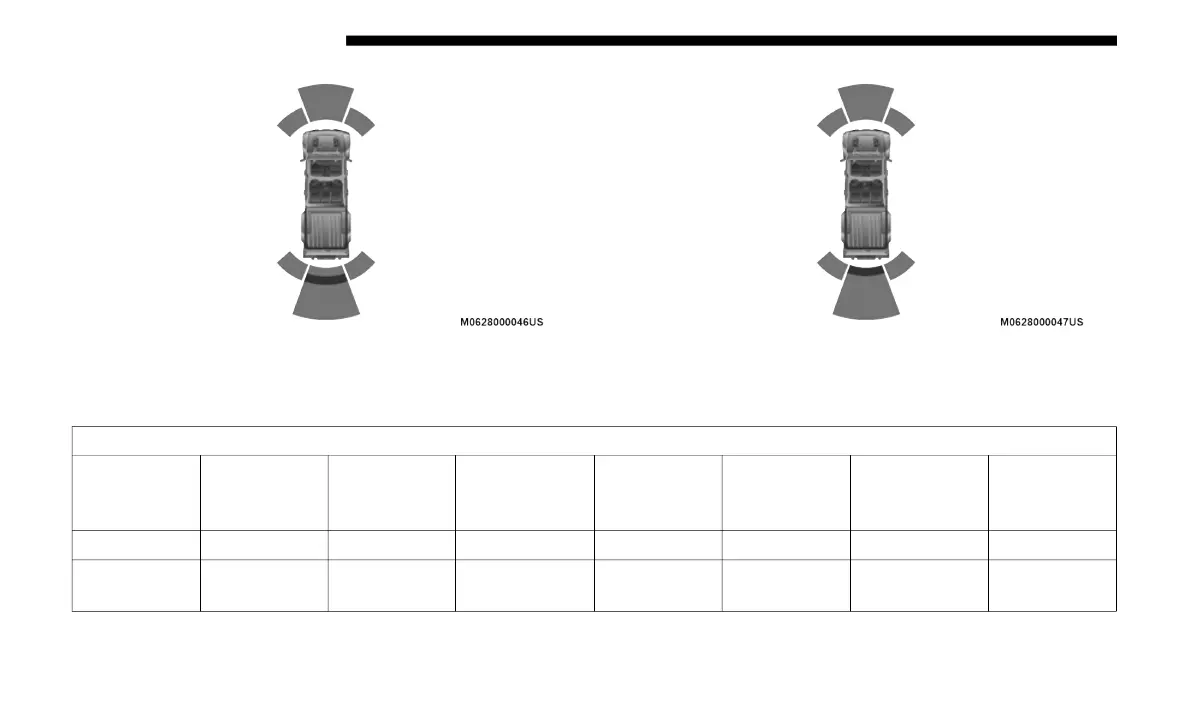

The vehicle is close to the obstacle when the warning display shows one flashing arc and sounds a continuous tone. The
following chart shows the warning alert operation when the system is detecting an obstacle:
WARNING ALERTS
Rear Distance
(inches/cm)
Greater than
79 inc
hes
(200
cm)
79-59 inches
(200-
150 cm)
59-47 inches
(150-120 cm)
47-39 inches
(120-100 cm)
39-25 inches
(100-65 cm)
25-12 inches
(65-30 cm)
Less than
12 inc
hes
(30 c
m)
Arcs — Left None None None None None 2nd Flashing 1st Flashing
Arcs —
Cente
r
None 6th Solid 5th Solid 4th Solid 3rd Flashing 2nd Flashing 1st Flashing
